This standard describes a procedure for subjecting a broadband device to surge conditions as specified in IEEE C62.411. Ports shall be tested in compliance with IEEE C62.41 Category B3 Combination Waveform or IEEE C62.41 Category A3 Ring Waveform as specified for the Device Under Test.
Download MIL-STD-461
Equipment
Pulse Generator
The surge generator must be capable of producing the Ring Wave as specified by C62.41 Category A3 and the Combination Wave as specified by C62.41 Category B3. (one of the following or equivalent).
Coupling Filter
This device is used to isolate the AC power to the device being subjected to the surge. This allows all the surge energy to be directed to the DUT and not absorbed by the power system.
Digital Sampling Oscilloscope
This device is normally connected to the test connectors of the surge generator to monitor device performance.
Alternate Waveform Monitoring Equipment

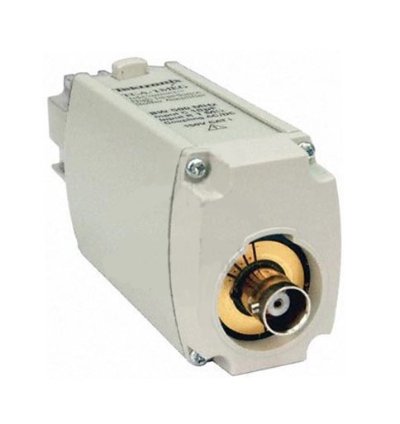

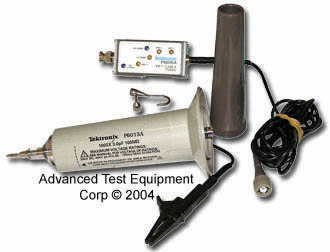

Test probes can be used to directly monitor the surge waveforms applied to the DUT.
Power Supply: AC or DC, as required by the DUT
Products Used in Testing:
Haefely

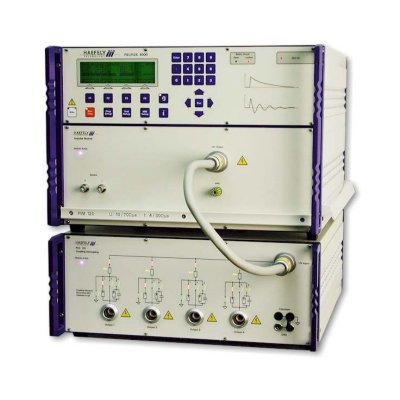

Haefely PCD 100 Single Phase CDN for PSURGE 8000 Platform
The Haefely PCD 100 Single Phase Coupling / Decoupling Network for PSURGE 8000 Platform covers IEC and EN standards testing single phase AC mains and DC power ports. They include recommendations for coupling and decoupling...
Haefely
Haefely PIM 100 Combination Wave Impulse Module
PIM 100 Hybrid module, uses a highly reliable semiconductor switch (unlimited lifetime, maintenance-free) to achieve a clean oscillation free impulse, which can be synchronized to within ±1° of programmed phase angle...
Haefely
Haefely PSURGE 6.1 Surge Tester
The Haefely Trench Surge Tester Type PSURGE 6.1 is a modular pulse generator of the highest performance class and delivers clean, repeatable pulse shapes by using a reliable switch bounce without effects. It has a HPIB and RS...
Haefely

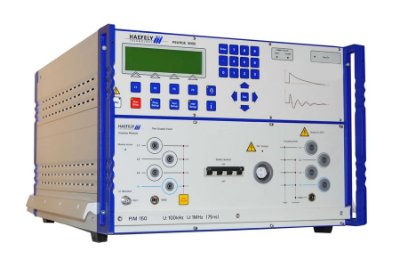

Haefely PSURGE 8000 Surge Platform Test System
The Haefely PSURGE 8000 Surge Platform Test System is a modular expandable system that grows with your application needs. The modular concept is built around a PC based host controller (the PSURGE 8000 Controller) with...
M Precision Laboratories
M Precision Laboratories EMCPro PLUS EMC Test System
The M Precision Laboratories EMCPro PLUS EMC test system features resident capabilities for EMC CE Mark compliance testing to several IEC/EN standards including IEC 61000-4-2, -4-5, -4-8, -4-9, and -4-12 and fully addresses new...
Tektronix

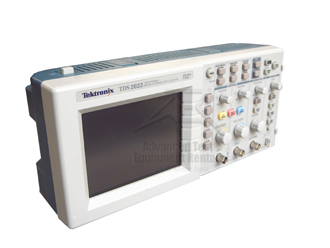

Tektronix TDS2022 Digital Oscilloscope 200 MHz, 2 GS/s
The Tektronix TDS2022 Digital Oscilloscope 200 MHz, 2 GS/s provides you with affordable performance in a compact design. Packed with standard features – including USB connectivity, 16 automated measurements, limit testing...
Teseq

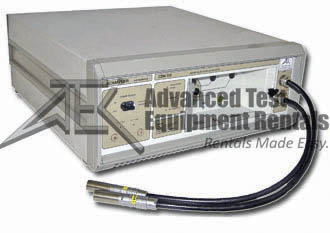

Teseq CDN 110 Single Phase Coupling Network
The Schaffner CDN 110 Coupling Network is an add-on for the Schaffner High Energy Pulse Generator NSG 650 to enable instrument and system tests to be carried out. The pulses generated can thus be coupled into the mains supplies...
