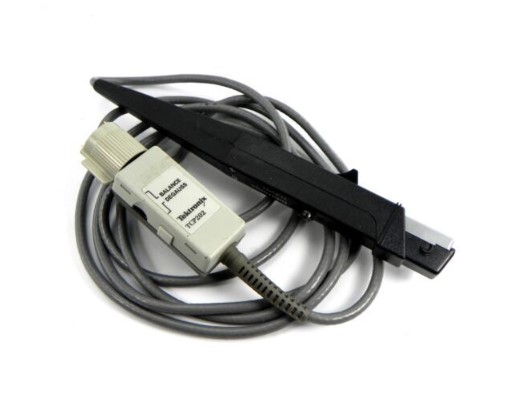

The Tektronix TCP202 DC Coupled Current Probe is a general-purpose probe for displaying and measuring current in electronic circuits, ideal for motor drives, switching power supplies, disk drives, electronic ballasts, inverters, and avionic testing. The Tektronix TCP202 features a bandwidth of DC to 50 MHz and 50 amps peak pulse current. The TCP202 model can be connected directly to TSD Scope through the TEKPROBE™ BNC Interface when using it with TDS3000C and TDS5000B Series oscilloscopes.
This oscilloscope probe is an accessory and is only available to rent with an oscilloscope.
See All Oscilloscopes
Features
- Easy Current Measurements
- Probe Connects Directly to TDS Scope through TEKPROBE™ BNC Interface
- Split Core Construction for Easy Circuit Connection
- DC to 50 MHz Bandwidth
- 15 Amps DC + Peak AC Current
- 50 Amps Peak Pulse Current
Specifications
| Bandwidth |
DC to 50 MHz |
| Max DC + Peak AC Current |
15 A |
| Max Peak Pulse Current |
50 A |
| Minimum Sensitivity |
10 mA/div |
| DC Accuracy |
±1% (with probe calibrator)
±3% (without probe calibrator) |
| Max Bare-wire Voltage |
300 V (CAT I) |
| Insertion Impedance |
0.002 Ω at 1 kHz
0.1 Ω at 5 MHz |
| Propagation Delay |
17 ns |
| Max Conductor Diameter |
3.8 mm (0.15 in.) |
| Electrostatic Immunity |
(per IEC 801-2) >8 kV |
| Rise Time |
≤7.0 ns |
| Weight |
0.19 kg (0.44 lb.) |
| Cable Length |
2.2 m (7.2 ft.) |
Applications
- Motor Drives
- Switching Power Supplies
- Disk Drive
- Electronic Ballasts
- Inverters
- Avionics
Standards
- UL 3111-1
- CSA1010.1
- EN61010-1
- IEC61010-1
- EN61010-2-032
- IEC61010-2-032
