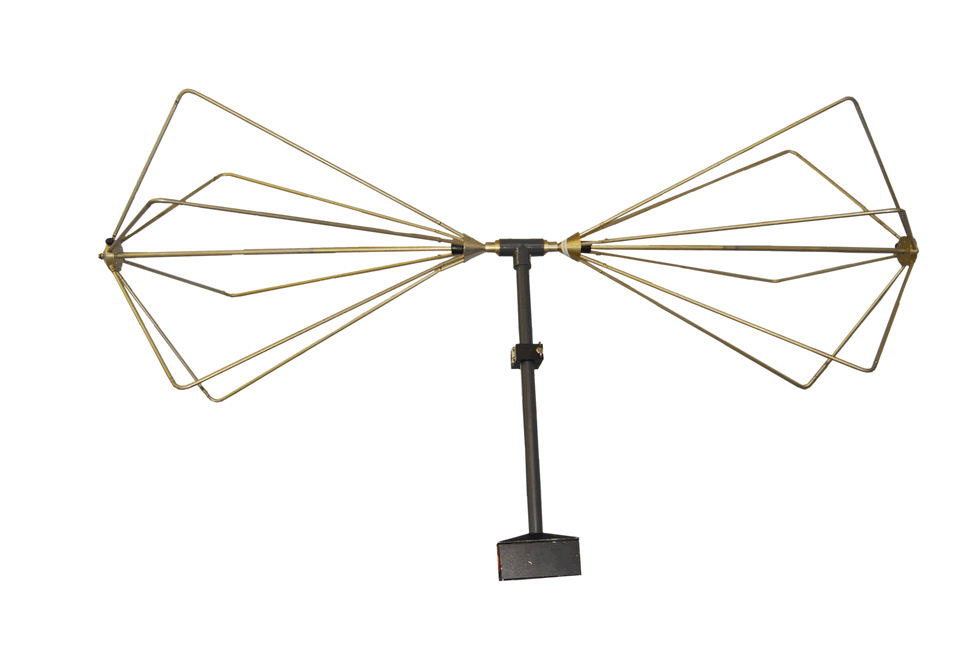

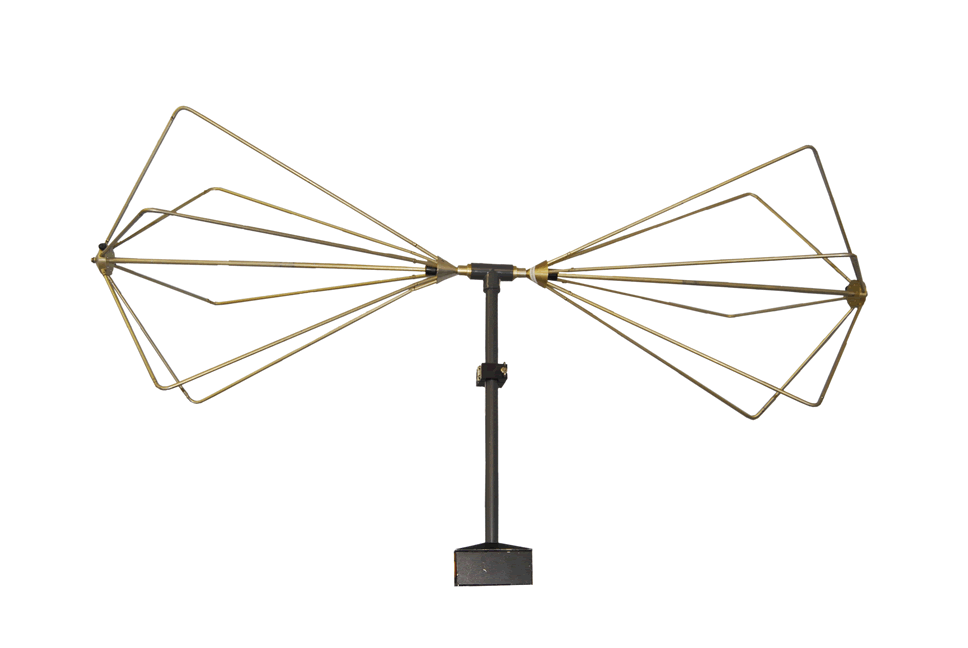

AH Systems SAS-200-542 Biconical Antenna, 20MHz to 330 MHz

Rent, Buy, or Lease the AH Systems SAS-200-542 Biconical Antenna | 330 MHz - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing…
Enlarge Image
Rent, Buy, or Lease the AH Systems SAS-200-542 Biconical Antenna | 330 MHz - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing… Rent, Buy, or Lease the AH Systems SAS-200-542 Biconical Antenna | 330 MHz - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing… Rent, Buy, or Lease the AH Systems SAS-200-542 Biconical Antenna | 330 MHz - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing…
Request Quote Print Page
Datasheet

The AH Systems SAS-200/542 Folding Biconical Antenna operates efficiently over the frequency range of 20 MHz to 330 MHz. Suitable for FCC, MIL-STD, VDE, TEMPEST, and immunity testing, the SAS-200/542 will provide reliable, repeatable measurements. For rapid deployment along with the mobility of a small package, the folding biconical elements can be closed similar to an umbrella allowing the antenna to be contained in an optional transit storage case.



Specifications:

Frequency Range 20 MHz - 330 MHz
Antenna Factor 8 dB - 27 dB
Max. Cont. Power In. 4 Watts
Max. Radiated Field 5 Volts
Height 29 Inches
Width 52 Inches
Weight 4.3 lbs.
