Amplifier Research 2500A225B RF Power Amplifier

The Amplifier Research 2500A225B RF Power Amplifier is a solid-state, self-contained, broadband amplifier engineered for instantaneous bandwidth, high gain, and linearity applications. The AR 2500A225B is air-cooled using internal self-contained liquid cooling technology for high performance and reliability. When paired with a sweep generator, the Amplifier Research 2500A225B provides a minimum of 2500 watts of RF power. AR 2500A225B amplifiers are designed with a front panel gain control to allow users operation to program the desired output level.

In addition, Amplifier Research 2500A225B models are equipped with a Digital Control Panel (DCP) giving users both local and remote control of the amplifier. An integrated color LCD touch screen displays the operation status and fault conditions if an overtemperature or power supply fault has occurred.

Product Info Related Products

Rated Output Power	Typical: 2800 watts, min 2500 watts, .01-100MHz Typical: 2300 watts, min 2000 watts, 100-225MHz
Input For Rated Output	1.0 mW Max
Power Output @ 3db Compression	Typical: 2800 watts, min 2500 watts, .01-100MHz Typical: 2300 watts, min 2000 watts, 100-200MHz Typical: 2000 watts, min 1800 watts, 200-225MHz
Power Output @ 1db Compression:	Typical: 2400 watts, min 2000 watts, .01-100MHz Typical: 1900 watts, min 1500 watts, 100-200MHz Typical: 1500 watts, min 1300 watts, 200-225MHz

2500 Watts CW
10kHz–225MHz
Class A
Portable
Full VSWR–tolerant
CE & RoHS Compliant

SKU: AMPL-2500A225B

Amplifier Research 10U1000 Solid State CW Amplifier, 10KHz - 1GHz, 10 Watts

10 W of power
Frequency range of 10 kHz - 1000 MHz
Portable, Class A CW amplifier

Amplifier Research 1000A400 Broadband RF Amplifier | 10 kHz - 400 MHz, 1000 W

1000 W
10 kHz - 400 MHz
60 dB

IFI M406 CW RF Amplifier 10 kHz - 220 MHz, 1000W

Digital Display Monitors: Power Supply Currents, Voltage, Forward RF Power, Reflected RF Power, (Optional on all models) Total Hours, Operate Hours
Status Indicators: Power On, Standby, Operate
Faults: Overcurrent, VSWR Overload, Thermal Overloads, Air Flow

IFI SCCX1000 Solid State RF Power Amplifier

VSWR Reflected Power Protection
Open and Short Circuit Protection
GPIB IEEE 488 and RS232 Remote Control

Amplifier Research 50U1000 CW Solid State Amplifier, 10KHz - 1 GHz, 50 Watts

10 kHz - 1 GHz
50 W
CW Amplifier

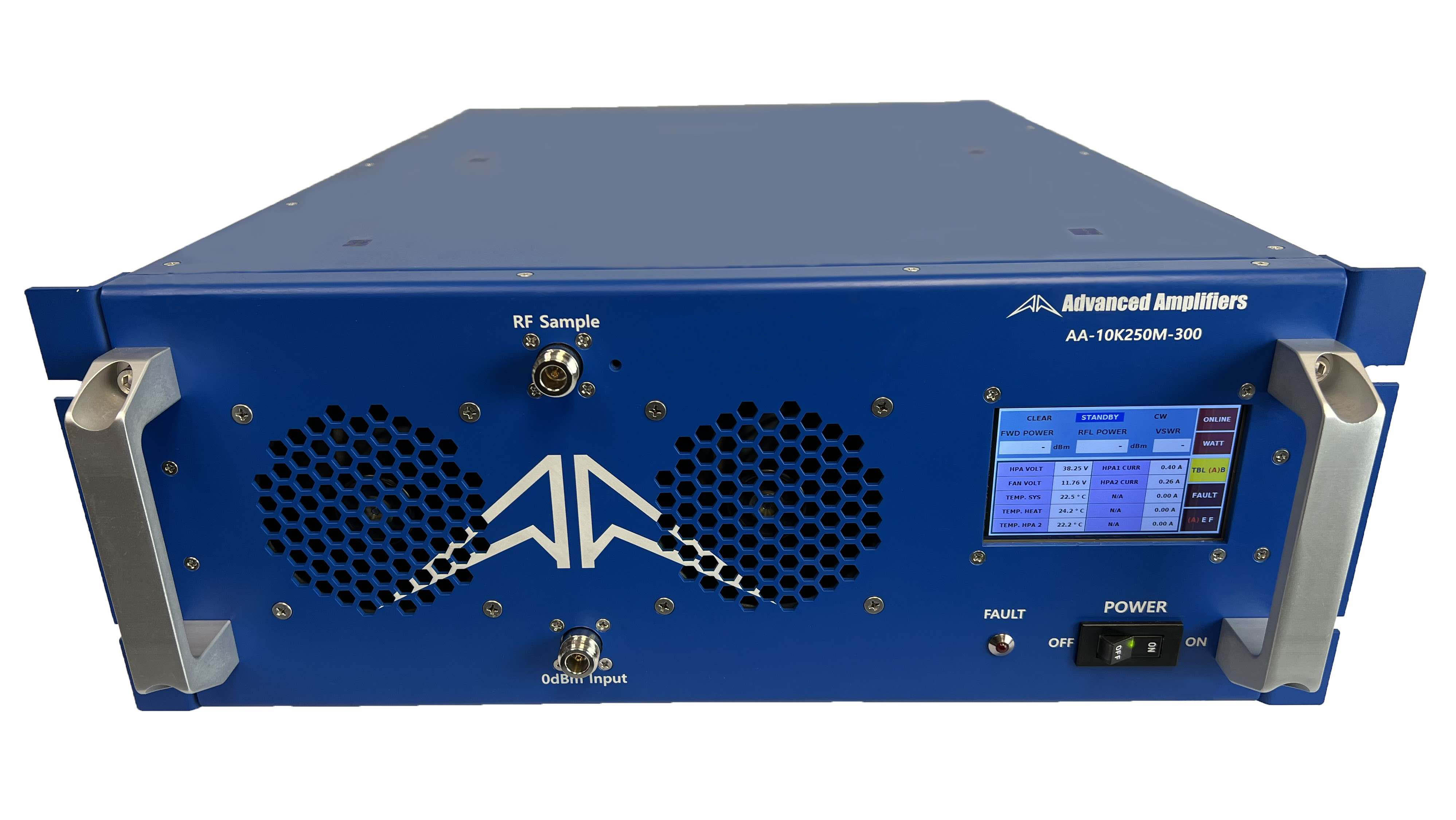

Advanced Amplifiers AA-10K250M-300 Solid-State Amplifier
