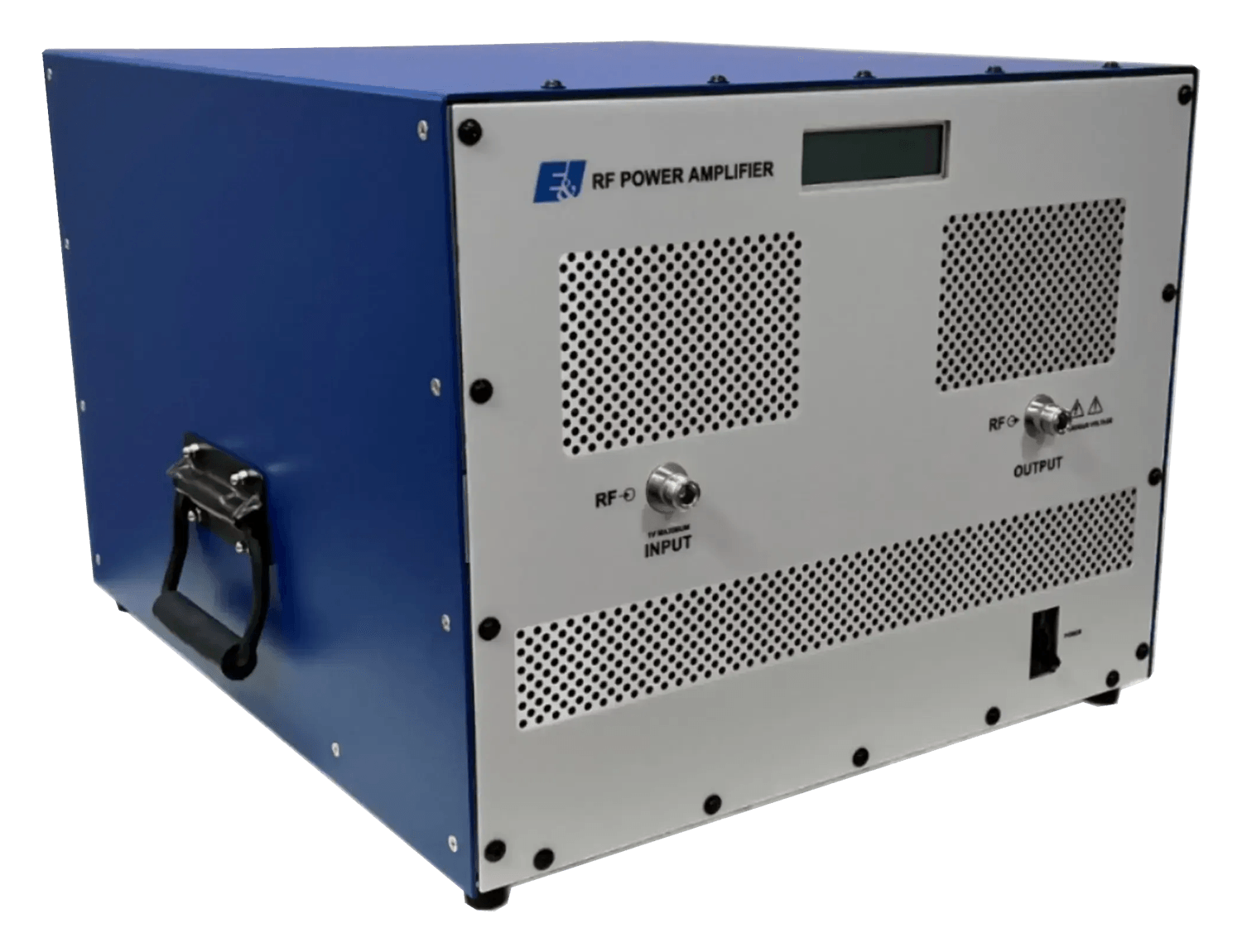

The E&I 1140LA Power Amplifier is a broadband solid state amplifier covering the frequency spectrum from 10 kHz to 2 MHz. It is rated at 1100 Watts of RF power with low harmonic and intermodulation distortion. A quasi linear Class AB design, the E&I 1140LA will amplify inputs of AM, FM, SSB, pulse and any complex modulation signals. The amplifier has 55 dB gain, it is unconditionally stable and will not oscillate even with combinations of mismatched source and load impedance. It is protected against failure due to output load mismatch and/or overdrive.

The E&I 1140LA Power Amplifier features RMS forward and reverse powers which are monitored by a front panel meter. An integral power supply permits operation from 115/230 single phase AC power.
