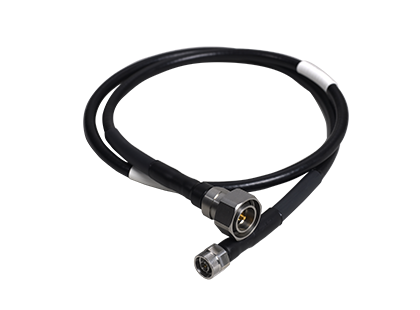

Anritsu 15N43F50-1.5C Cable Assembly

The Anritsu 15N43F50-1.5C Cable Assembly combines excellent phase and amplitude stability with an integrated environmental protection system for reliable, repeatable measurements over a long service life. Designed for field service, the Anritsu 15N43F50-1.5C has exceptional durability while remaining lightweight and flexible, and they combine the electrical advantages of expanded PTFE dielectric with an integrated environmental protection system.

Anritsu 15N43F50-1.C cable assemblies are a reliable solution to various general-purpose test applications. The internally ruggedized design allows for a 2.5 in (6.4 cm) minimum bend radius without affecting cable performance. Springback is virtually zero and both phase and amplitude stability, essential for accurate measurements, are preserved.

Product Info Related Products

Frequency (GHz)	6.0
Connector A	Precision N-female
Connector B	4.3-10-male
Length (meters)	3.0
Return loss match (dB)	18
Insertion loss full cable (dB at max frequency)	3.7
Impedance (ohms)	50

Phase and amplitude stable with flexure: longer calibration intervals, greater precision and accuracy
Flexible: user friendly/easy to route
Internally ruggedized: crush, torque and kink resistant
Fluid resistant and dust/dirt Proof

SKU: ANRI-15N43F50-1.5C
