Keysight N9912A
Request Quote Print Page
Datasheet

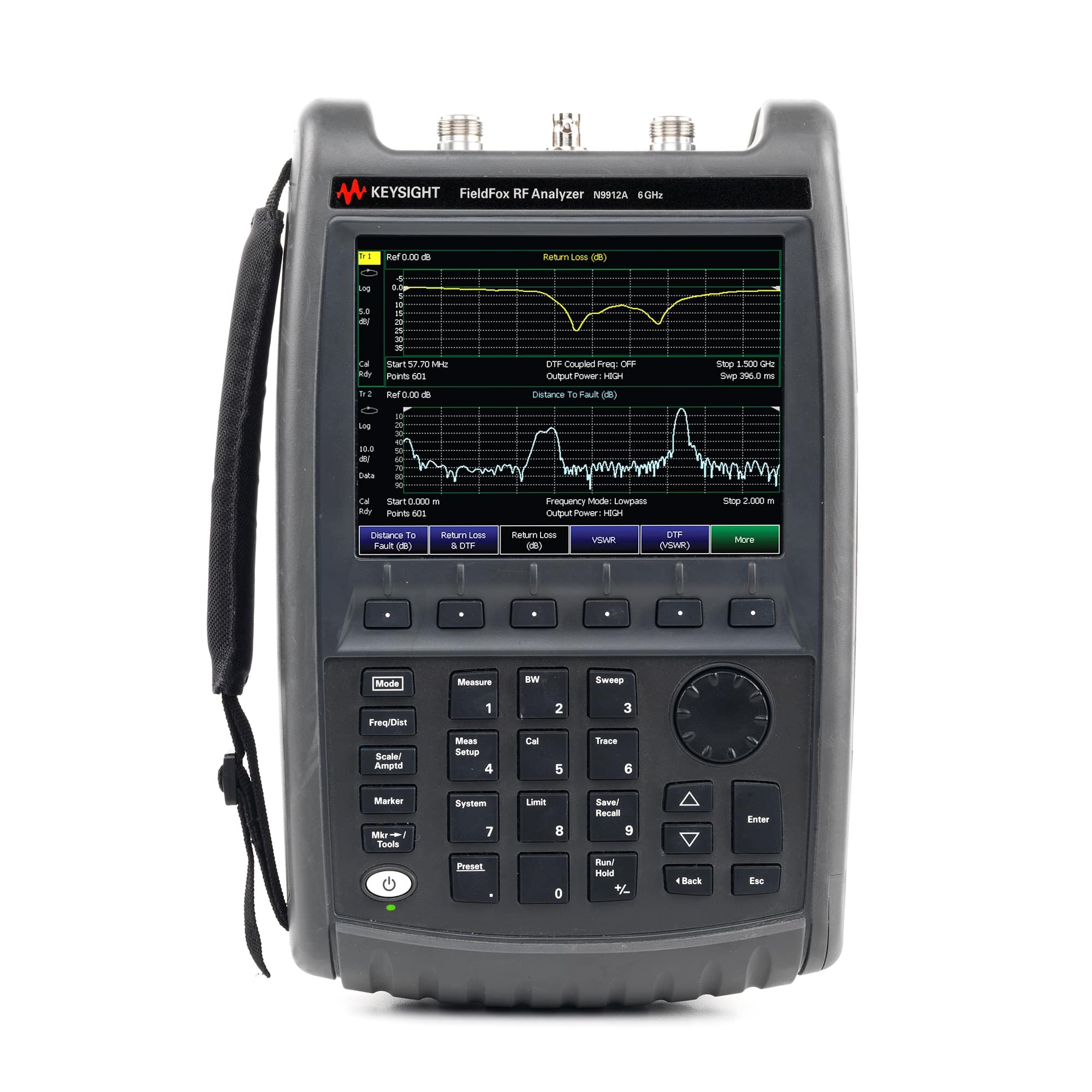

The N9912A FieldFox RF Analyzer is an integrated handheld instrument for wireless network installation and maintenance. It combines cable / antenna analysis, spectrum analysis, power meter measurements, vector network analysis, and a vector voltmeter into one rugged, compact, lightweight and weather-resistant package. Standard accessories include AC/DC adapter, battery, soft carrying case, user manual and FieldFox Data Link software.



Features:

  • Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
  • Handheld network analyzer (S11, S21, phase, and Smith Chart)
  • Handheld spectrum analyzer, optional preamplifier
  • Cable trimming
  • Integrated QuickCal allows you to calibrate FieldFox without a calibration kit, providing worry-free accuracy and repeatability
  • Immediate calibration with FieldFox´s CalReady makes the unit calibration ready at the test port immediately following power-up
  • Broadband calibration with automatic interpolation to eliminate re-calibration of FieldFox when the test frequency or the number of points changes
  • Mechanical open, short, load calibration support



Specifications:

Cable and Antenna Analyzer 2 MHz to 4 GHz and optional 6 GHz, directivity > 42 dB, 1.5 ms per point
Network Analyzer 2 MHz to 4 GHz and optional 6 GHz, S11 magnitude and phase, S21 magnitude
Spectrum Analyzer 100 kHz to 4 GHz and optional 6 GHz, DANL: -148 dBm, 1 second / full span (6 GHz)
Power Meter 9 kHz to 24 GHz U2000 Series USB power sensor dependent
Vector Voltmeter 2 MHz to 4 GHz and optional 6 GHz, compare phase and electrical length
