Viavi Solutions

Viavi CA5000 CellAdvisor 5G Cell Site Analyzer

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

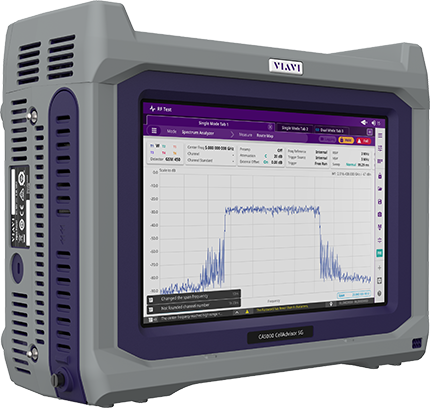

Viavi CA5000 CellAdvisor 5G Larger
Viavi CA5000 CellAdvisor 5G Cell Site Analyzer
Categories
  • Cable & Antenna Analyzers
    Cable & Antenna Analyzers
  • Directional Interference
    Directional Interference
  • RF Interference Hunting
    RF Interference Hunting
  • Spectrum Monitoring Tools
    Spectrum Monitoring Tools
Documents
  • Datasheet
  • Print
  • Email
The Viavi CA5000 CellAdvisor 5G Cell Site Analyzer is a cable and antenna analyzer module with a frequency range of 12.5 MHz to 6 GHz. The Viavi CellAdvisor 5G is compact and user-friendly tool that allows technicians to complete a variety of testing requirements, including cell site installation verification, network maintenance, interference hunting, and more.

Efficient and effective applications make the CellAdvisor 5G the idea device for work out in the field. 5G radio access networks are easily validated and deployed with the CellAdvisor 5G module, and the device also uses real-time spectrum analysis and 5G beam analysis to help operators maintain signal quality in a network. As a versatile tool, the Viavi CA5000 CellAdvisor 5G, has an innovative interface, a connection type of Type-N, female, and a trace overlay feature. The CA5000 has a warm-up time of 10 minutes, a frequency resolution of 1 kHz, a measurement bandwidth of 10 kHz, a VSWR range of 1 to 65, and an impedance of 50 Ω (nominal).

Reach out to an ATEC rental agent today to learn more about the Viavi CA5000 CellAdvisor 5G Cell Site Analyzer and other Viavi products. Keeping your specific testing requirements in mind, we can help you choose the right device for spectrum analysis, interference hunting, and more.

  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Auto file naming that eliminates manual inputs in file name
  • Trace overlay that detects signal degradation over time
  • Dual display and multiple tabs that allow fast and efficient measurements
  • Intuitive pass/fail analysis that instantly notifies a problem
  • Integrated RF CW source y EZ-Cal™ that calibrates faster and easier
  • CAA Check and Job Manager that enable test process automation and consolidated reports
  • With warm-up time of 10 minutes

Specifications
Dimensions (W x H x D) 5.12 in x 5.43 in x 1.65 in
130 mm x 138 mm x 41 mm
Weight 0.43 kg (0.95 lb.) without bias power port
0.45 kg (0.99 lb.) with bias power port
Frequency range 12.5 MHz to 6 GHz
Frequency resolution 1 kHz
Frequency accuracy ±2.5 ppm @25°C
Aging per year ±1 ppm
Data points 126, 251, 501, 1001, 2001
Measurement bandwidth 10 kHz
Corrected directivity >42 dB
VSWR range 1 to 65
Operating temperature -10 to 55°C (14 to 131°F)
Storage temperature -40 to 70°C (-40 to 158°F)
Maximum humidity 95% RH, non-condensing
Applications
  • 5G cell site installation, commissioning, and maintenance
  • Massive MIMO and active antenna beam validation
  • Interference analysis and PIM detection over CPRI
  • Comprehensive RF signal analysis
  • Fronthaul and RRH verification over CPRI
  • Cable and antenna analysis with optional RF source
Options
Accessories
Standards
Media

RELATED PRODUCTS

Anritsu S332E Site Master Cable/ Antenna Analyzer
Anritsu S332E Site Master Cable/ Antenna Analyzer
Narda SignalShark 3310 Signal Analyzer
Narda SignalShark 3310 Real-Time Handheld Spectrum Analyzer | RF Hunting
Rohde & Schwarz PR100 Portable Receiver, 9 kHz - 7.5 GHz
Rohde & Schwarz PR100 Portable Receiver
Anritsu S331L Site Master Handheld Cable & Antenna Analyzer
Anritsu S331L Site Master Handheld Cable & Antenna Analyzer
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda SignalShark 3320 Real-Time Remote Analyzer
Narda SignalShark 3320 Real-Time Remote Analyzer
Anritsu S331E Site Master Cable and Antenna Analyzer
Anritsu S331E Site Master Cable and Antenna Analyzer
Narda Automatic DF-Antenna 1
Narda Automatic DF-Antenna 1 Basic Set
Rohde & Schwarz HE300 Active Directional Antenna
Rohde & Schwarz HE300 Active Directional Antenna
Anritsu S362E Site Master Cable & Antenna Analyzer
Anritsu S362E Site Master Cable & Antenna Analyzer
Narda Automatic DF-Antenna 2
Narda Automatic DF-Antenna 2 Basic Set
Rohde & Schwarz HE 100 Active Directional Antenna | 20 MHz - 1 GHz
Rohde & Schwarz HE 100 Active Directional Antenna | 20 MHz - 1 GHz
Anritsu S820E Microwave Site Master Cable and Antenna Analyzer 40 GHz
Anritsu S820E Microwave Site Master Cable and Antenna Analyzer 40 GHz
Narda SignalShark 3330 Real-Time Outdoor Remote Analyzer
Narda SignalShark 3330 Real-Time Outdoor Remote Analyzer
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Narda IDA 2 Interference and Direction Analyzer, Radio Direction Finder
Rohde & Schwarz ZVH8 Cable and Antenna Analyzer
Rohde & Schwarz ZVH8 Cable and Antenna Analyzer
Narda IDA-3106 Interference and Direction Analyzer Base Unit
Narda IDA-3106 Interference and Direction Analyzer Base Unit
Anritsu S361E Site Master Handheld Cable & Antenna Analyzer
Anritsu S361E Site Master Handheld Cable & Antenna Analyzer
Kaelus iVA 0627A Cable and Antenna Analyzer
Kaelus iVA 0627A Cable and Antenna Analyzer
Aaronia 60100 HyperLOG Directional Antenna
Aaronia 60100 HyperLOG Directional Antenna
Aaronia Spectran HF 60105 V4 Spectrum Analyzer
Aaronia Spectran HF 60105 V4 Spectrum Analyzer
Anritsu Field Master Pro MS2090A
Anritsu Field Master Pro MS2090A
Anritsu MS2713E Compact Handheld Spectrum Analyzer 9 kHz - 6 GHz
Anritsu MS2713E Handheld Spectrum Analyzer
Anritsu Spectrum Master MS2720T Handheld Spectrum Analyzer
Anritsu MS2720T Handheld Spectrum Master
The Anritsu Site Master S331P Cable & Antenna Analyzer
Anritsu Site Master S331P Cable & Antenna Analyzer
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
