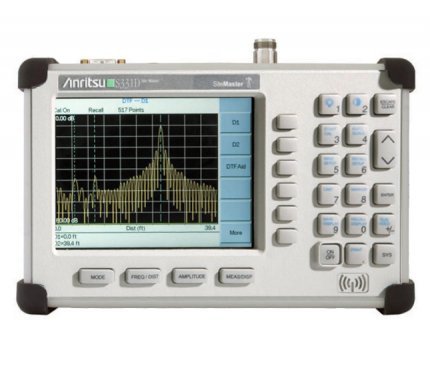

Anritsu S331D Site Master Cable and Antenna Analyzer

Larger

SKU: ANRI-S331D

The Anritsu S331D Is Discontinued

View the Anritsu S331L

The Anritsu S331D Site Master Cable and Antenna Analyzer's Frequency Domain Reflectometry (FDR) techniques break away from the traditional fix-after-failure maintenance process by finding small, hard to identify problems before major failures occur.

Sixty to eighty percent of a typical cell site's problems are caused by problematic cables, connectors and antennas. When cables or antennas are contaminated with moisture, damaged, or mispositioned during storms, the Anritsu S331D Site Master identifies the problem quickly. Antenna degradation reduces the cell coverage pattern and can cause dropped calls. Site Master can pinpoint the antenna problem from ground level in a few seconds making climbing the antenna tower unnecessary. A poorly installed weather seal will corrode connectors and, if undetected, will eventually damage an expensive coaxial cable. The Anritsu S331D Site Master has the sensitivity to identify the connector problem before the cable is damaged. Distance-To-Fault provides the clearest indication of troubled areas.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Function	Benefits
Cable and Antenna Analyzer	Characterize antenna system and pinpoint location of faults
Standard TFT Color Display	Display is viewable in direct sunlight
Power Monitor	Performs accurate broadband power measurements using an external detector
Power Meter	Performs accurate power measurements up to 3 GHz without the need of an external detector
GPS Receiver	Provides location (latitude, longitude, altitude) and UTC time information
T1/E1 Analyzer	Simplifies the task of determining if the source of problems is on the wireline or the wireless side

Frequency Range	25MHz - 4.0GHz
Frequency Accuracy	≤±75ppm @ +25°C
Frequency Resolution	100kHz
Output Power	<0dBm (-10 dBm nominal)
Immunity to Interfering Signals	On-channel:	+17 dBm
	On-frequency:	-5 dBm
Measurement Speed	≤3.5msec / data point (CW ON)
Number of Data Points	130, 259, 517
Return Loss	Range:	0.00 to 60.00 dB
	Resolution:	0.01 dB
VSWR	Range:	1.00 to 65.00
	Resolution:	0.01
Cable Loss	Range:	0.00 - 30.00dB
	Resolution:	0.01dB
Measurement Accuracy	>42dB corrected directivity after calibration
Distance-to-Fault
Vertical Range	Return Loss:	0.00 to 60.00 dB
	VSWR:	1.00 to 65.00
Horizontal Range	0 to (# of data pts -1) x 0 to (# of data pts -1)x Resolution to a maximum of 1197m (3929 ft), # of data pts = 130, 259 or 517
Horizontal Resolution (Rectangular Windowing)	Resolution (meter) = (1.5 x 108) x (Vp)/DF Where Vp is the cable's relative propagation velocity and where DF is the stop frequency minus the start frequency (in Hz)
