Electro-Metrics EM-6950 Log Periodic Antenna, (LPA-30)
Enlarge Image

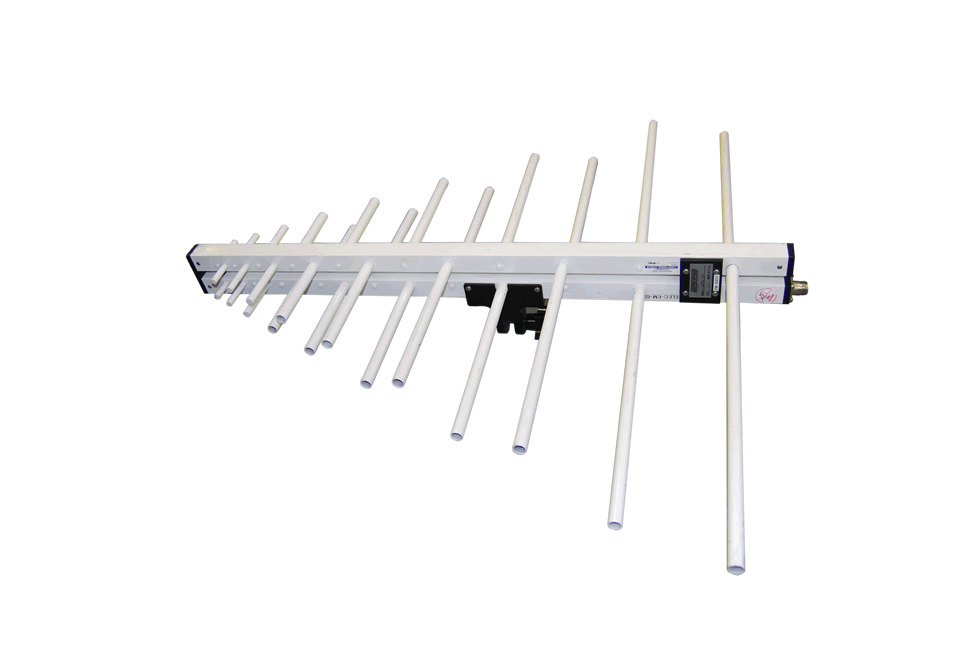

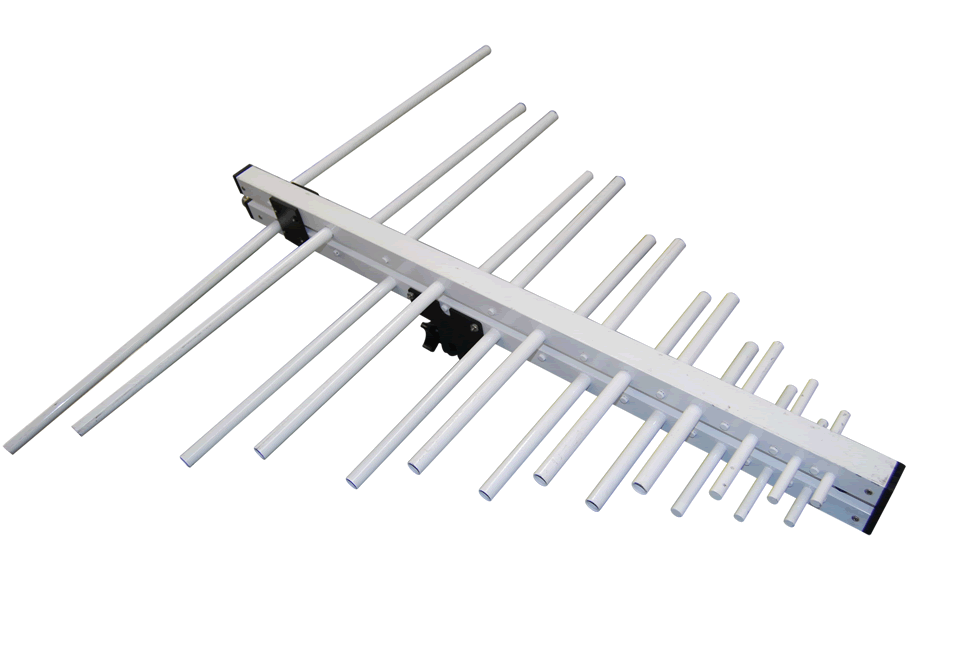

Electro-Metrics EM-6950 Log Periodic Antenna, (LPA-30) Electro-Metrics EM-6950 Log Periodic Antenna, (LPA-30)
Electro-Metrics EM6950
Request Quote Print Page
EM6950 Datasheet

The Electro-Metrics EM-6950 (LPA-30 Old Model Number) Log Periodic Antenna was designed to operate over the 200 MHz to 1 GHz frequency range to meet VDE/FCC, military, and other EMI specifications.

The broadband frequency capacity of the EM-6950 eliminates the need for band switching, element extension or external tuning when used for EMI ambient surveys or spectrum signature measurements.

The EM-6950 is capable of operating either as a transmitting or as a receiving antenna over the frequency range of 200 MHz to 1 GHz. Its linearly polarized design permits separate measurement of horizontal and vertical electric field components over its established range.

All-Aluminum construction makes it easily portable and suitable for use in applications where space is limited. The EM-6950 Log Periodic Antenna is fully calibrated and used primarily for radiated emission and susceptibility specification testing.
Electro-Metrics EM6950 Features
  • Wide frequency coverage
  • High sensitivity
  • Flat frequency response
  • Compatible with many measurement instruments
  • Individually calibrated with certificate of conformance
Electro-Metrics EM6950 Specs
Frequency Range 200 MHz - 1 GHz
Input Impedance Calibrated in a 50 ohms system
Average VSWR <2:1
Maximum Continuous Power 1000 W
Peak Power (short term) 1300 W
Output Connector Type N, female
