Espec

Espec BTZ-4200 Compact Temperature Cycling Chamber

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

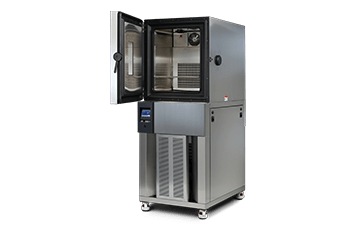

Espec BTZ-4200 Compact Temperature Cycling Chamber Larger
Espec BTZ-4200 Compact Temperature Cycling Chamber
Categories
  • Environmental Chambers
    Environmental Chambers
  • Thermal Chambers
    Thermal Chambers
  • Temperature Cycling Chambers
    Temperature Cycling Chambers
Documents
  • Datasheet
  • Print
  • Email
The Espec BTZ-4200 Compact Temperature Cycling Chamber is a 4 cubic foot Criterion Series compact temperature cycling chamber designed to achieve super fast ramp rates. The BTZ-4200 temperature chamber can cycle through temperatures at rates of up to 15°C/minute without requiring cooling water or liquid nitrogen. BTZ-4200 units can achieve low temperatures of -70°C and on the high end 180°C. To demonstrate performance, Espec BTZ-4200 chambers use the international standard IEC 60068 3-5, measured at the supply air. Temperature cycles are run from hot to cold extremes, and the middle 80% of the transition is timed to determine performance. Your actual cycling results will vary depending on methodology, including the start and end temperatures, and the amount of samples loaded.

The Espec BTZ-4200 Compact Temperature Cycling Chamber is based on Espec's space-saving Criterion benchtop series. Its footprint is just 31" x 45". Because it is so small and only requires only electrical utilities, it may be the ultimate portable temperature cycling chamber.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
Optional features may include:
  • Stainless steel exterior and interior
  • Rounded interior corners for easy cleaning
  • Full thermal break around doorframe and door
  • Rotating door latch is easy and secure
  • Dual-layer insulation of fiberglass and expanded foam for thermal integrity
  • One 2" (50mm) diameter cable port on the left, with an impervious, flexible silicone plug
  • Easy lift-off service panels
  • Pressure relief port to allow air volume changes due to rapid temperature changes
  • Three levels of overheat protection
  • Watlow F4T Programmer/Controller
*Features vary by models. Contact an account manager for available options.
Specifications
Compact Temperature Cycling BTZ-4200
Exterior Dimensions
(W x D x H)
31" x 45" x 67"
788 x 1055 x 1880 mm
Interior Dimensions
(W x D x H)
19.6" x 15" x 23.6"
498 x 381 x 600 mm
Workspace Volume 4 cu. ft.
110 Liters
Temperature Low -70°C
Temperature High 180°C
Temperature Range -70 to 180°C
-94 to 356°F
Power 208/230V 1ph 60Hz 54A max
Average Change Rate
(50Hz power lower)
15°C/min
-45 to 155°C (Empty)
Heat-to-room Peak 35,000 BTU/Hr.
Maximum Sound Level
(1 meter away)
76 dBA dBA
Temperature Fluctuation
(at control sensor)
±0.5
Live Load Capacity 500W at -40°C
Air Flow 200 CFM
Refrigeration - Type cascade
Refrigeration System Cascade 3hp Scroll
“Price Rank” #21 out of 21 ranked
Applications
Options
Accessories
Standards
Media
Customize Quote

RELATED PRODUCTS

Cincinnati Sub-Zero ZPH-16 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-16 Temperature & Humidity Chamber
Espec SH Benchtop Chamber Series
Espec SH Benchtop Chamber Series
Cincinnati Sub-Zero Z-Plus Temperature & Humidity Chamber Series
Cincinnati Sub-Zero ZPH Temperature & Humidity Chamber Series
Espec CSH-112 Temperature & Humidity Chamber
Espec CSH-112 Stability Test Chamber
Espec CSH-122 Temperature & Humidity Chamber
Espec CSH-122 Stability Test Chamber
Espec CSH-132 Stability Test Chamber
Espec CSH-132 Stability Test Chamber
Espec EGNX12 Global-N Temperature Cycling Chamber -70°C to 180°C
Espec EGNX12 Global-N Temperature Cycling Chamber -70°C to 180°C
Espec SH-241 Temperature & Humidity Chamber
Espec SH-241 Temperature & Humidity Chamber
Espec Platinous H-Series Chambers
Espec Platinous H-Series Temperature & Humidity Chambers
TestEquity 1027S Temperature Chamber
TestEquity 1027S Temperature Chamber
Tenney TC Series Cycling Test Chamber
Tenney TC Series Cycling Test Chamber
Espec EPX-4H Temperature & Humidity Chamber
Espec EPX-4H Temperature & Humidity Chamber
Thermotron SE Series
Thermotron SE Series Temperature & Humidity Chambers
Espec-SH-242 Benchtop Temperature & Humidity Chamber
Espec SH-242 Benchtop Temperature & Humidity Chamber
Thermotron SM Environmental Chamber Series
Thermotron SM Environmental Chamber Series
Espec BTX-475 Temperature and Humidity Chamber
Espec BTX-475 Temperature and Humidity Chamber
TestEquity Environmental Chambers
TestEquity Environmental Chambers Series
Thermotron SE-1000 Temperature & Humidity Chamber
Thermotron SE-1000 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-8 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZP/ZPH-8 Temperature & Humidity Chamber
Cincinnati Sub-Zero Z-Plus 64 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-64 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-16 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-16 Temperature & Humidity Chamber
Tenney Jr Thermal Chamber
Tenney Junior Compact Temperature Test Chamber
Cincinnati Sub-Zero ZPH-32 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-32 Temperature & Humidity Chamber
Espec SH-642 Benchtop Temperature & Humidity Chamber
Espec SH-642 Benchtop Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-44 Temperature & Humidity Chamber
Cincinnati Sub-Zero ZPH-44 Temperature & Humidity Chamber
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
