Fluke Norma 4000, N4K High Precision Power Analyzer

Fluke Norma 4000 Power Analyzer
Enlarge Image

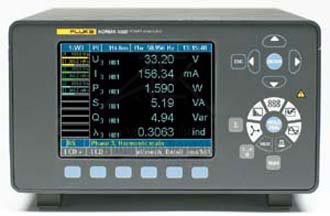

Fluke Norma 4000
Request Quote Print Page
Datasheet

Ideal for field testing, the Fluke Norma 4000 Three-Phase Precision Power Analyzer offers easy and straight-forward operation with unmatched price performance. Features include: 1 to 3 power phases, 5.7” / 144 mm color display, harmonic analysis, scope mode, vector diagram display, recorder function, Fluke NormaView PC software and expandable 4 MB RAM data memory.



Features:

  • Compact design makes it easy to carry and saves working space.
  • Simple user interface ensures easy, intuitive operation.
  • A variety of standard configurations allows users to choose the exact functionality required for their unique application.
  • Simultaneous parallel acquisition of all phases allows accurate viewing of dynamic events on all phases at exactly the same point in time.
  • All inputs are galvanically isolated to avoid short circuits in all applications.
  • Voltage, current and power harmonics measured up to the 40th harmonic for complete analysis.
  • FFT analysis, vector diagram, and Digital Oscilloscope (DSO) mode included in the base unit for complete analysis capability.
  • User-selectable average time – from 15ms up to 3600s – for dynamic measurements.
  • 4 MB on-board memory (expandable to 128 MB) for storage of measured values.
  • Fast and easy connection to a PC – RS232 and USB included as standard; optional IEEE488, Ethernet, or USB2.0.
  • PI1 process interface to measure torque and speed with external sensors, plus four analog outputs for easy use on motor and drive applications.
  • 341kHz or 1 MHz sample rates for detailed signal analysis.
  • Bandwidth from dc to 3 MHz / 10 MHz for reliable measurement precision.
  • Fluke NormaView PC software for data download, analysis & report writing.



Specifications:

  • Number of phases: 1 or 3
  • Bandwidth: dc to 3 MHz or dc to 10 MHz depending on input module
  • Basic Accuracy: 0.2%, 0.1% or 0.03% depending on input modules
  • Voltage Input Range: 0.3 to 1000 V
  • Current Input Range: 0.03 mA - 20 A depending on input modules
  • Interface: RS232
