Keysight PA2203A IntegraVision Power Analyzer | 4 Channels, 3-Phase AC
- Operates like an oscilloscope, but makes measurements like a power analyzer
- Achieve 0.05% basic accuracy for superior measurement integrity
- The PA2201A comes with 2 power channels for single phase measurements and analysis; the PA2203 has 4 power channels for 3-phase measurement and analysis
Danisense 6 Channel Current Transducer System
- Compact 19” rack mount 1U height
- AC Input: 85 - 264V, auto ranging
- Frequency: 47 - 63Hz, auto ranging
Yokogawa WT1806E Precision Power Analyzer
- 6 channels
- Measurement bandwidth: DC, 0.1 Hz − 1 MHz
- Current input (internal): 5 A/50 A
DaniSense DS600ID 600Arms Current Transducer
- 1ppm maximum linearity error
- Fluxgate loop technology
- DSUB 9 pin connection
Tektronix PA4000 Power Analyzer, DC - 1 MHz, 30 ARMS, 1000 VRMS
- 1 to 4 Input Modules allows several configurations to match your application
- High measurement accuracy of 0.04% (basic voltage & current accuracy) for demanding test requirements
- Dual internal current shunts for each module maximize accuracy for high- and low-current measurements
Keysight N6705A DC Power Analyzer | 600 W
- Easy to use R&D tool for sourcing and measuring DC voltage and current into the DUT
- Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
- Access all capabilities without programming; either use the front panel controls or the 14585A Control and Analysis Software
Xitron 2503AH Series Power Analyzer
- 18-bit, 500 kHz sampling speed provides 0.05% basic accuracy
- Ultra-fast FFT’s per channel produce measurements in 10 ms
- 3000 V Peak, 50 Amp Peak internal shunt and Hall effect CT’s
Danisense DS50ID 50Arms Current Transducer
- Linearity error maximum 8 ppm
- Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
- Industry standard DSUB 9 pin connection
Voltech IEC555 Reference Impedance Network
ZES Zimmer LMG450 Precision Power Analyzer
- 4 Channels, DC – 20 kHz direct
- Accuracy: 0.1%
- Ranges: 6 - 600V / 600mA - 16A
ZES Zimmer LMG671 Precision Power Analyzer
- Up to 7 phases, DC – 10 MHz
- Accuracy: 0.025%
- Ranges: 30 mV - 1000 V / 5 mA - 32 A
ZES Zimmer LMG611 Single Channel Precision Power Analyzer
- Single-phase, DC – 10 MHz
- Accuracy: 0.025%
- Ranges: 3V – 1000V / 5mA – 32A
ZES Zimmer LMG641 Precision Power Analyzer
- Up to 4 phases, DC – 10 MHz
- Accuracy: 0.025%
- Ranges: 30 mV - 1000 V / 5 mA - 32 A
Yokogawa WT332E Digital Power Analyzer
- 3-phase, DC, 0.1 Hz – 100 kHz
- 15V – 600V, 5mA – 20A
- ±0.15% reading accuracy
Yokogawa WT310E Digital Power Analyzer
- DC, 0.1Hz – 100kHz
- 5mA – 20A (direct input)
- Voltage Input: 15V – 600V

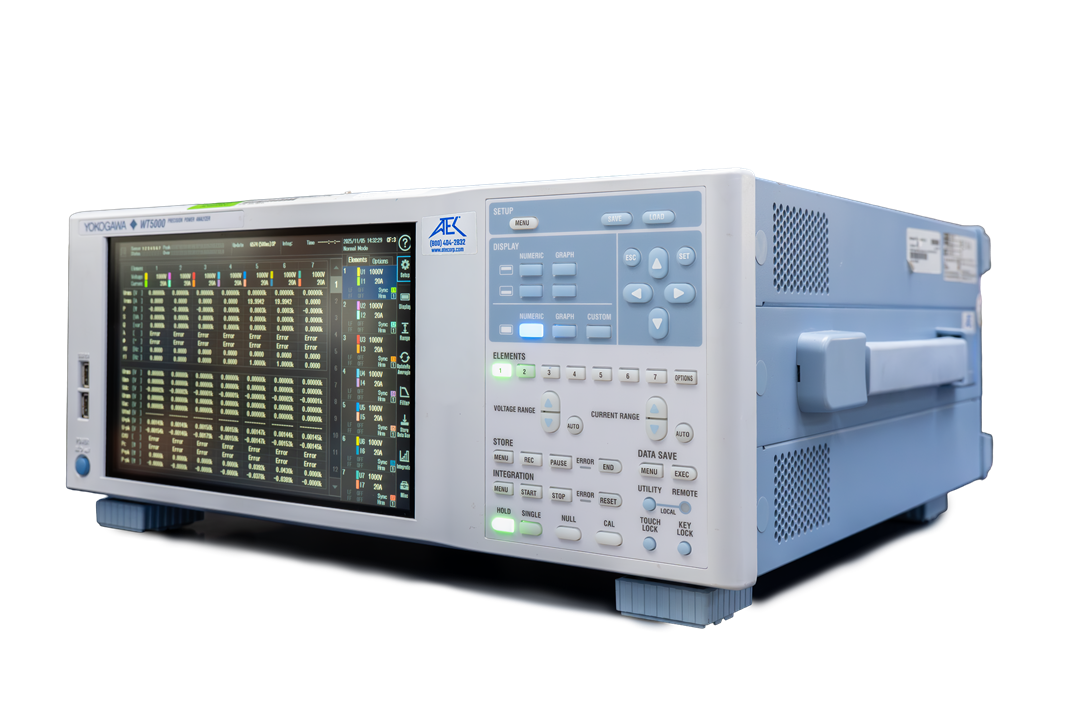

Yokogawa WT5000 Precision Power Analyzer
- Basic power accuracy of ±0.03%
- 10 MS/s, 1MHz power bandwidth
- Peak voltage of 2.5 kV or RMS of 1.5kV
Yokogawa WT500 Precision Power Analyzer
- Voltage Crest Factor set to 3: 15V, 30V, 60V, 100V, 150V, 300V, 600V, 1000V Crest Factor set to 6: 7.5V, 15V, 30V, 50V, 75V, 150V, 300V, 500V
- Crest Factor set to 3: 15V, 30V, 60V, 100V, 150V, 300V, 600V, 1000V
- Crest Factor set to 6: 7.5V, 15V, 30V, 50V, 75V, 150V, 300V, 500V
Yokogawa WT333 Digital Power Meter 100 kHz, 3 Ch
- Basic accuracy of 0.1% of reading
- Low current measurement
- Wide current input ranges
Yokogawa WT332 Digital Power Meter 100 kHz, 2 Ch
- Basic accuracy of 0.1% of reading
- DC, 0.5 Hz to 100 kHz Frequency Range
- Peak Value of 450A or RMS value of 300 A
Yokogawa WT330 Digital Power Meter
- Basic accuracy: 0.1% of Reading
- DC measurement: 0.5 Hz to 100 kHz frequency range
- Measures all AC and DC parameters
Yokogawa WT310HC Digital Sampling Power Analyzer
- Basic Accuracy of 0.1% of Reading
- Current Range: 1- 40A
- Voltage: 15-600 Volts RMS
Yokogawa WT310 Digital Power Meter
- Basic accuracy: 0.1% of Reading
- DC measurement: 0.5 Hz to 100 kHz frequency range
- Measures all AC and DC parameters
Yokogawa WT3004E Precision Power Analyzer
- Basic power accuracy: 0.01% of reading
- Both 2 A and 30 A input elements can be installed in a single unit
- Good readability: 8.4-inch LCD and the range indicator LEDs
Yokogawa WT3000 Precision Power Analyzer
- Basic accuracy: 0.01% of reading
- Basic power accuracy: 0.02% of reading
- 30A current input element
Yokogawa WT300 Series Digital Power Meters
- Basic accuracy: 0.1% of Reading
- DC measurement: 0.5 Hz to 100 kHz frequency range
- Measures all AC and DC parameters
