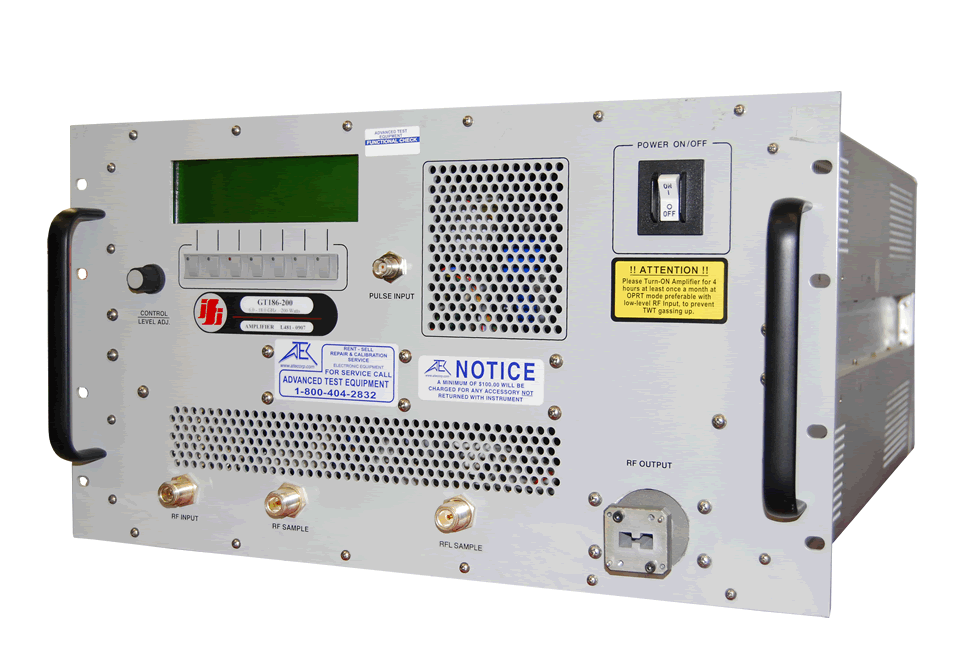

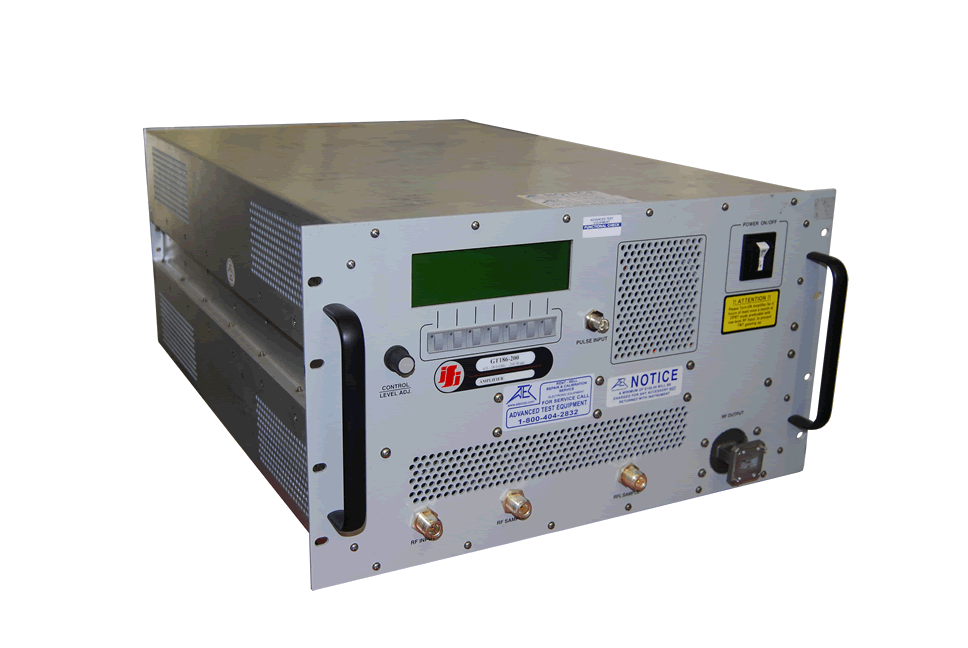

IFI GT186-300 Gridded TWT Amplifier 6 GHz - 18 GHz, 300W

The IFI GT186-300 TWT Amplifier is a gridded RF power amplifier with a frequency range of 6 - 18 GHz and a power output of 300 W. IFI GT186-300 TWT amplifiers are designed to perform radiated immunity tests in compliance with MIL-STD-461/462, RTCA/D0-160, SAE specifications, bellcore testing, broadband communications tests and more. The GT186-300 features digital display monitors, status indicators, a variety of fault indicators and simplified maintenance access. Ruggedized versions are available for shipboard or airborne applications.

Product Info Available Add-Ons Related Products

Frequency Range	6 - 18 GHz
Min Pwr Out	300 Watts
Min Sat Gain	55 dB
Max NF	35 dB
Spurious Outputs	-40 dBc, maximum
Spurious Outputs	-50 dBc, available
Input Impedance	50 ohms, VSWR 2.0:1
Output Impedance	50 ohms, VSWR 2.0:1
Output Impedance	2.5:1 maximum
Input Connector	Type N (Female)
Output Connector	WRD650

Digital Display Monitors: Collector Current, Collector Voltage, Helix Current, Helix Voltage, Forward RF Power, Reflected RF Power, Filament Hours, Beam Hours, Duty Cycle, Pulse Width and pulse Repetition Frequency
Status Indicators: Power On, Standby, RF On/Operate
Faults: Helix Overcurrent, VSWR Overload, Thermal Overloads, Air Flow, Collector Overcurrent
Controls: Power On/Off, Standby, RF On/Operate, Fault Reset, Local/Remote
Ease of Maintenance
Designed to meet the safety requirements of the IEC-348 and Underwriters Laboratory of American Standards
Broadband Coverage
