The Advanced Amplifiers AA-618G-100 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 6.0 - 18.0 GHz and generates 80 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-618G-100 has a power gain of 50 dB minimum and operates with an input of 80 - 240 VAC single-phase (1600 W).

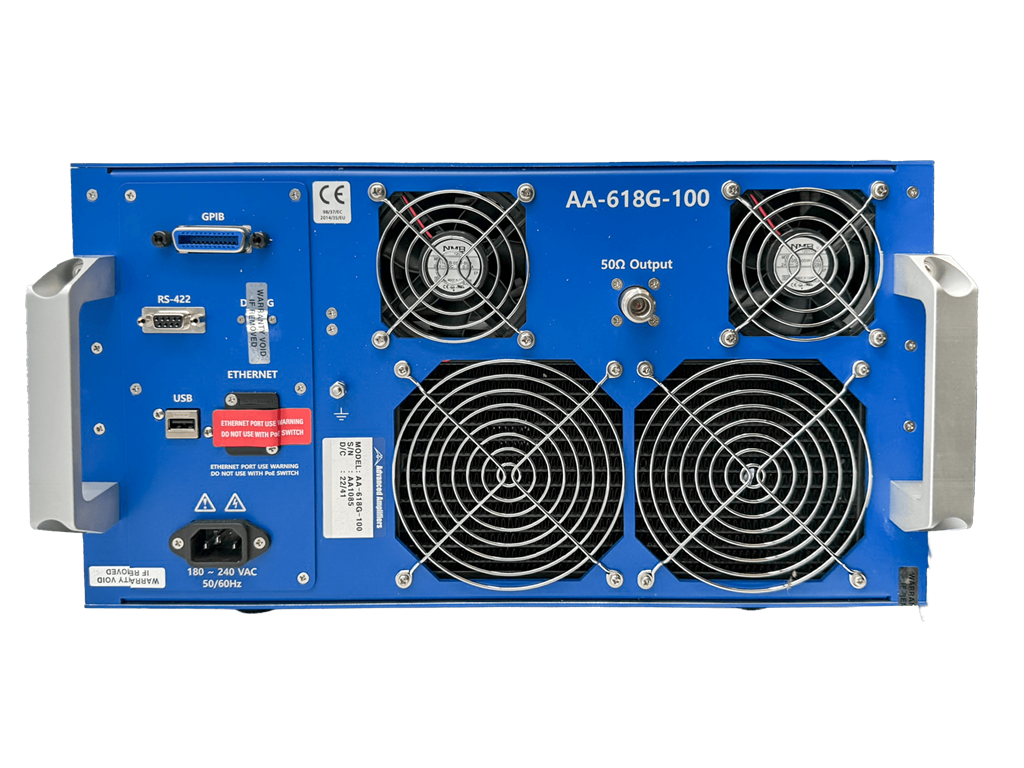

The AA-618G-100 is lightweight and has a low-profile (5U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-618G-100 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Rack mounted system
Class AB linear GaN design
Instantaneous wide bandwidth
Suitable for all single channel modulations standards
Built-in protection circuits
High reliability and ruggedness

Specifications

Parameter	Specification	Notes
Operating Frequency Range	6.0 - 18.0 GHz
Power Output @ Psat	80 Watt Min/ 100 Watt Typ	CW
Power Gain	50 dB Min
Power Gain Flatness	4 dB p-p Max	Constant input power
Input/ Output Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Typ	39dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Typ	At rated output
Spurious	60 dBc Min	Non-harmonic
Operating Voltage	180 - 240 VAC
Power Consumption	1600 Watt Max	At rated output
Input Power Protection	+3 dBm Max	<10 Sec without damage
Load VSWR Protection	5:1	<1 Minute at rated Pout
Operating Ambient Temperature	0 to +SO °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non-condensation
Dimensions W x H x D	19 x 8.75 x 22.5 inch (430 x 133.3 x 560 mm)	RSU - excluding connectors
Weight	60 lb. (30 Kg.) Max
RF Connectors In/ Out	Hi Freq. SMA F / WG
AC Power/ Interface Connector	IEC 60320-C14 / 9-Pin D-Sub
Cooling	Built in Fan Cooling	Variable speed
OPTIONAL: Digital Monitor & Control GAIN, V & I, TEMP	Full feature controller is not available
