Keysight 214B Pulse Generator, 10 Hz to 10 MHz

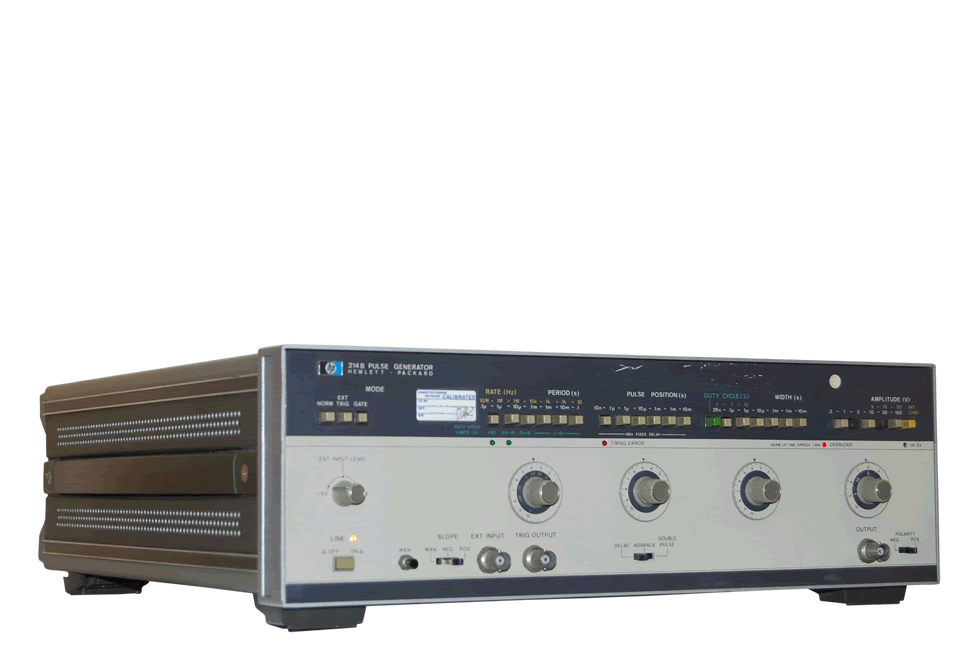

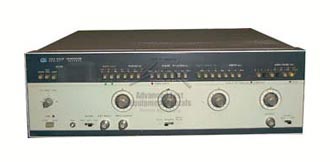

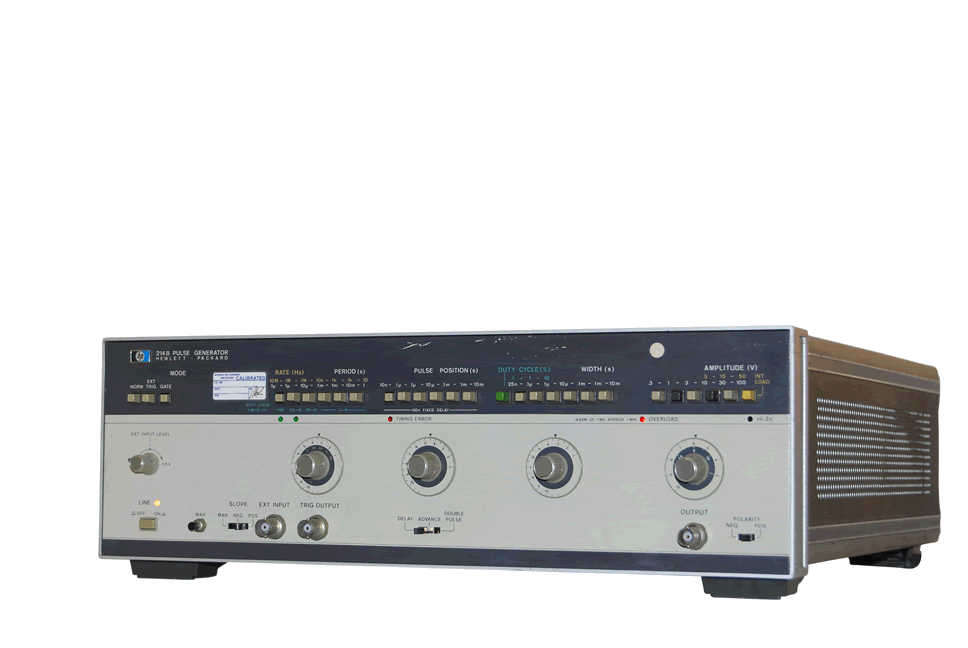

HP/Agilent 214B Pulse Generator, 10 Hz to 10 MHz
Enlarge Image
HP/Agilent 214B Pulse Generator, 10 Hz to 10 MHz HP/Agilent 214B Pulse Generator, 10 Hz to 10 MHz
Keysight 214B
Request Quote Print Page
Datasheet
10 Hz - 10 MHz, 100V into 50 ohms, 10-50% Duty Cycle, Double Pulse/Data

Keysight 214B Features

Repetition Rate: 10 Hz to 10 MHz in 6 ranges. In 30V to 100V amplitude range, maximum rep. rate is 4 MHz

  • Pulse delay/advance: 10 ns to 10 ms (± fixed delay of 45 ns)
  • Double Pulse: 5 MHz maximum in all ranges except 30V to 100V range which is max. 2 MHz
  • Pulse Width: 25 ns to 10 ms in 6 decade ranges
  • Max. duty cycle:≥10% for 30 to 100V range. ≥50% all other ranges.
  • Constant duty cycle mode
  • External Operating Modes
    • External Input
    • EXT TRIG mode
    • GATE mode
    • Manual
  • Output
    • Amplitude: 0.3V to 100V in 5 ranges
    • Source Impedance: Fixed 50 ohms nominal on ranges up to 10V. Selectable 50
    • ohms nominal or HI-Z on 10 - 30 - 100V ranges
    • Polarity: pos. or neg. selectable
    • Transition times: ≤15ns for leading and trailing edges
