Stanford Research Systems DG535 Digital Delay/Pulse Generator 4 Ch

Rent Stanford Research Systems DG535 Digital Delay/Pulse Generator 4 Ch
Enlarge Image

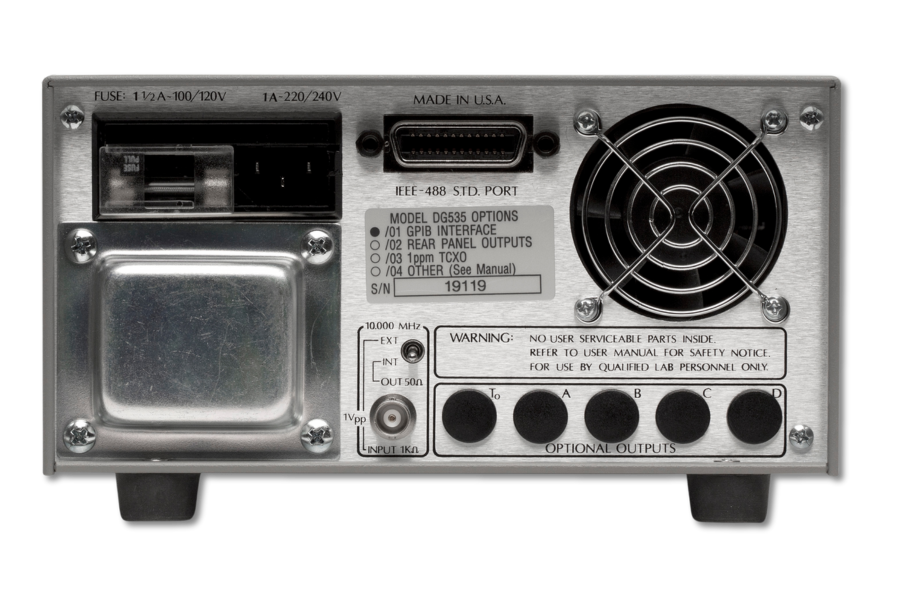

Stanford Research Systems DG535
Request Quote Print Page
Datasheet
The Stanford Research Systems DG535 Digital Delay/Pulse Generator 4 Ch provides four precisely-timed logic transitions or two independent pulse outputs. The delay resolution on all channels is 5 ps, and the channel-to-channel jitter is typically 50 ps. Front-panel BNC outputs deliver TTL, ECL, NIM or variable level (–3 to +4 V) pulses into 50 Ω or high impedance loads. The high accuracy, low jitter, and wide delay range make the DG535 ideal for laser timing systems, automated testing, and precision pulse applications.

Stanford Research Systems DG535 Features
  • Four independent delay channels
  • Two fully-defined pulse channels
  • 5 ps delay resolution
  • <100 ps rms jitter
  • Adjustable amplitude and offset
  • Delays up to 1000 seconds
  • 1 MHz maximum trigger rate
  • Standard GPIB interface
  • Optional ±32 V outputs
