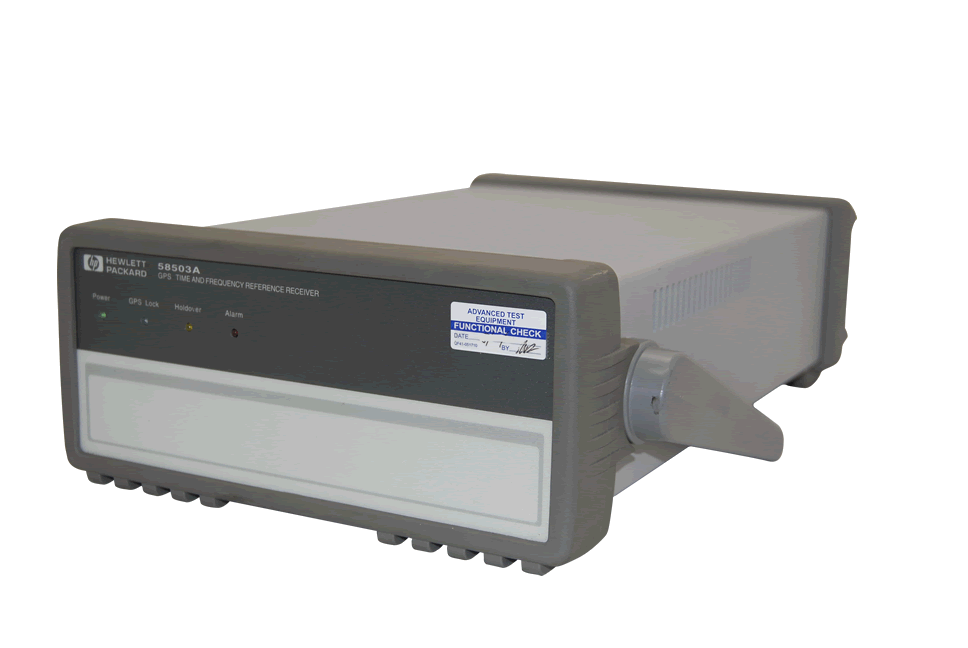

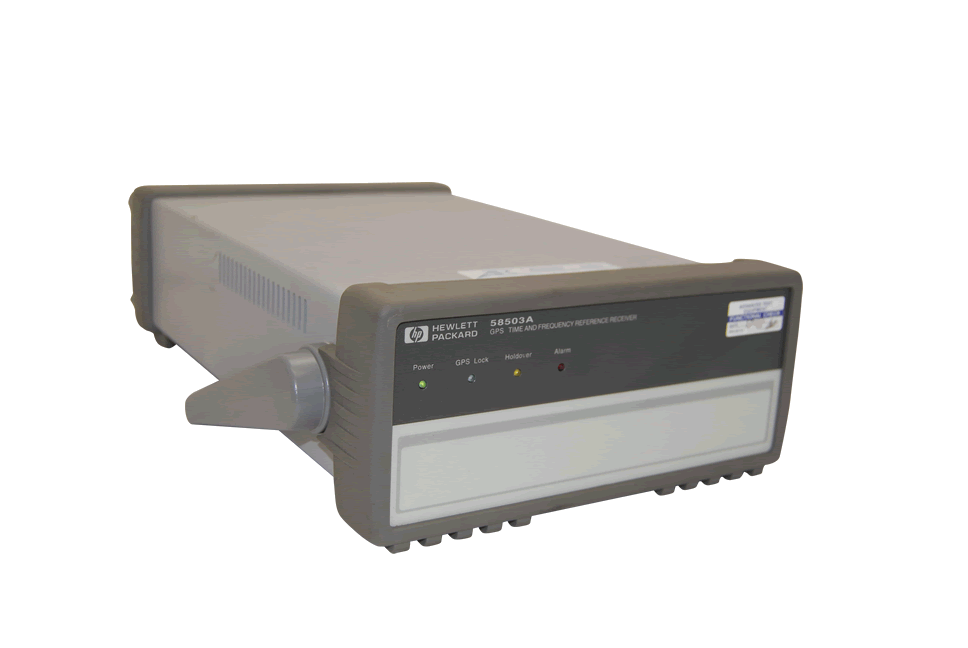

Keysight 58503A GPS Time/Frequency Reference Receiver

Rent, lease, or rent to own HP Agilent 58503A GPS Time/Frequency Reference Receiver
Enlarge Image
Rent, lease, or rent to own HP Agilent 58503A GPS Time/Frequency Reference Receiver Rent, lease, or rent to own HP Agilent 58503A GPS Time/Frequency Reference Receiver Rent, lease, or rent to own HP Agilent 58503A GPS Time/Frequency Reference Receiver
Keysight 58503A
Request Quote Print Page
Datasheet

Through a unique combination of technology, the Keysight 58503A GPS time and frequency reference receiver provides a highly reliable source of precision time and frequency. The 58503A is based on Keysight's quartz technology. This provides unsurpassed reliability and confidence, as well as excellent short term stability. The core of the design is an oscillator with >500,000 hours of field proven mean time between failures. This delivers superior performance and reliability while eliminating the need for periodic oscillator replacement as required in GPS rubidium sources.



Features:


  • 6-channel, Parallel tracking
  • C/A code, L1 carrier
  • HP smart clock / HP enhanced GPS
  • DC power options available
  • 10 MHz and 1 pps outputs
  • By locking the oscillator to GPS signal provides frequency accuracy of better than 1 X 10-12
  • Impedance 50 Ohm
  • Maximum Single-Side-Band Noise -85 dBc/Hz
  • Amplitude 1 Vrms

Options:

001 16 Character Front Panel Displ
1CM Rackmount Kit
AWM Power Supply (48 Vdc)
AWR +/-24 Vdc Power
AXB 23 inch Rack Mount Kit
UK6 Commercial calibration with test results data
