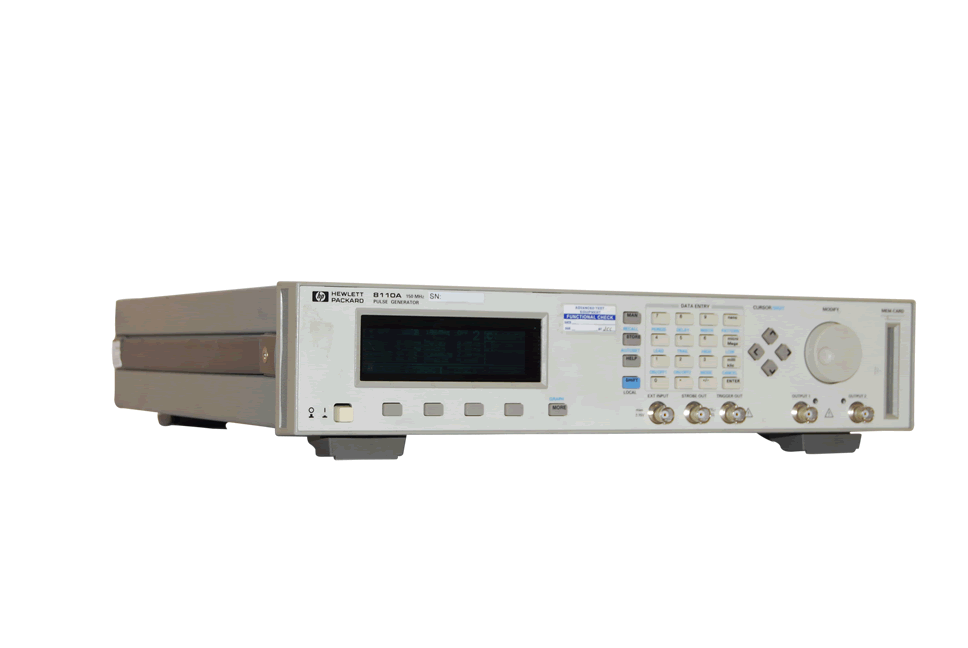

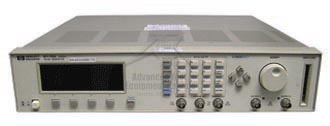

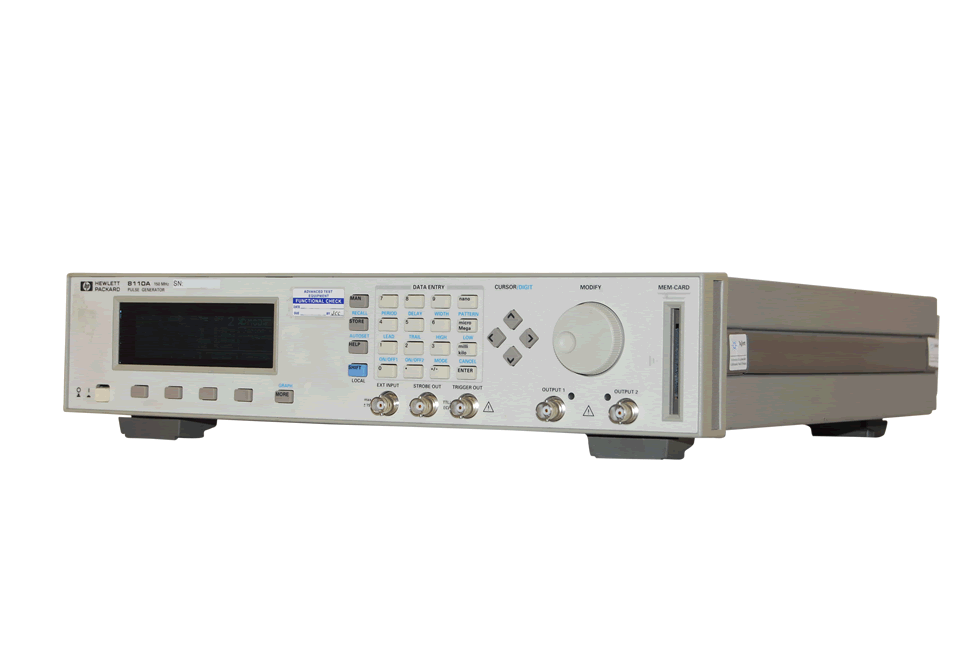

HP/Agilent 8110A Pulse Pattern Generator
Enlarge Image
HP/Agilent 8110A Pulse Pattern Generator HP/Agilent 8110A Pulse Pattern Generator
Keysight 8110A
Request Quote Print Page
8110A Datasheet Brochure
The Keysight 8110A 150 MHz Pulse Pattern Generator provides precise edge-positioning and the ability to simulate digital signals as they occur in the real world, making it the ideal partner for your Keysight oscilloscope or logic analyzer. On the bench you can verify designs so you can achieve reliable results quickly at frequencies where emulation becomes uncertain or cumbersome. In systems high resolution lets you optimize yield. True-to-life signals improve measurement credibility. Each 8110A 150 MHz single- or dual-channel pulse pattern generator requires 1 or 2 output modules 81103A.
Keysight 8110A Features
  • 150 MHz Timing
  • 2 ns Variable Transitions
  • 10 Vpp (20 Vpp) into 50 Ω
  • 10 ps Resolution
  • 0.1% Frequency Accuracy
  • 4 kbit Pattern per Channel
  • 3 and 4 Level Signals
  • 1 or 2 Output Channels
  • SCPI Programming Commands
  • Small Size
  • Graphic Display
