| Optical Specifications |
| Laser type |
Helium Neon (HeNe) |
| Laser class |
Class 2, < 1 mW, eye-safe |
| Laser wavelength |
633 nm, visible red laser beam |
| Minimum stand-off distance |
200 mm (with standard objective lens) |
| Maximum stand-off distance |
Depends on surface |
| Visibility maxima |
91 mm + n · 204 mm; n = 0; 1; 2; ... |

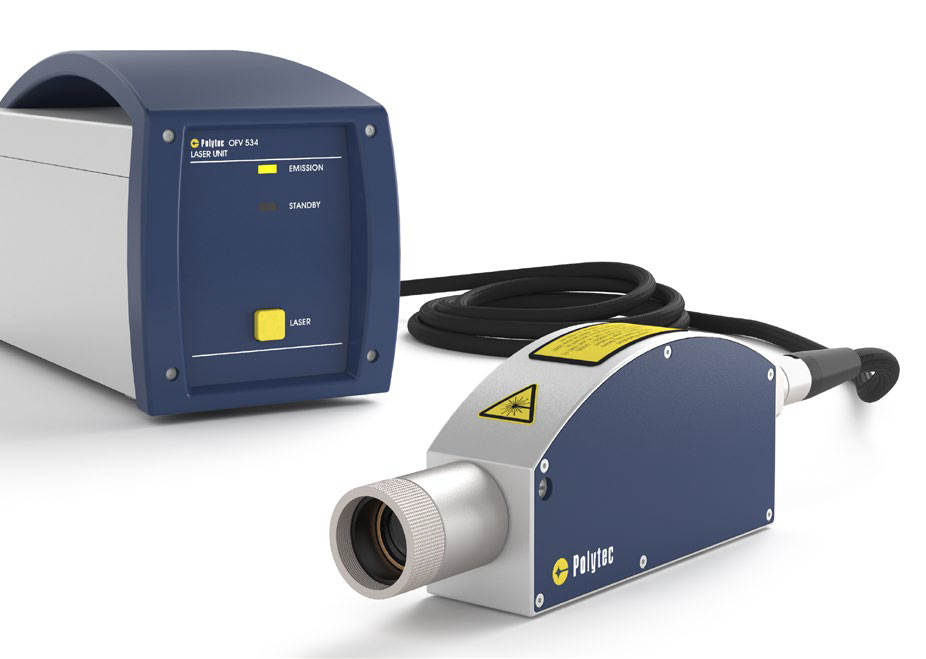

| General Specifications - Sensor Head |
| Dimensions (L x W x H) |
201 x 39 x 71 mm (7.9 x 1.5 x 2.8 in) |
| Weight |
1 kg (2.2 lbs) |
| Housing protection |
IP64 |
| Power consumption |
Max. 3 W |
| Cable length |
3 m (to Laser Unit) |
| Ambient temperature |
+5 °C … +40 °C (41 °F … 104 °F) |
| Storage temperature |
+10 °C … +65 °C (14 °F … 149 °F) |
| Relative humidity |
Max. 80%, non-condensing |
| Compatibility |
OFV-5000, OFV-2520, OFV-2570 Vibrometer Controller, VDD-E-600 Digital Front-End |
