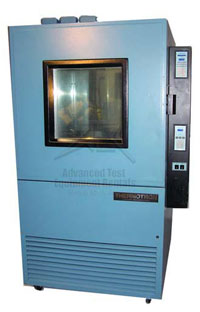

Thermotron S-16 Temperature Test Chamber

Rent, Buy, or Lease the Thermotron S-16 Temperature Test Chamber | -100 to +350°F, -73.3 to +177°C - Advanced Test Equipment Rentals | Call 1-800-404-ATEC(2832) for pricing…
Enlarge Image
Request Quote Print Page
Specifications



Features

  • Interior light
  • Cascade refrigeration system
  • Stainless steel access port with thermal plug
  • High-volume air circulation fan
  • Unit requires plant water or external chiller


Specifications

Temperature Range -100 to +350°F; -73.3 to +177°C
Workspace Dimensions 30" W x 30" D x 30" H
Workspace Volume 453 liters; 16 cu. ft.
Programmable temperature controller with digital displays 20" x 20"
Temp pull down from +75°F (+23°C) ambient without load 40°F (-40°C): 15 minutes
-65°F (-53.9°C): 30 minutes
-100°F (-73.3°C): 60 minutes
Temp heat-up from 75°F ambient without load +240°F (+116°C): 25 minutes
+350°F (+177°C): 55 minutes
Capacity for holding watts live load 0°F (-17.8°C): 1000 minutes
-40°F (-40°C): 700 minutes
-65°F (-53.9°C): 400 minutes
Voltage 230/208 VAC 60A
Approx. Shipping Weight 1320 lbs.
