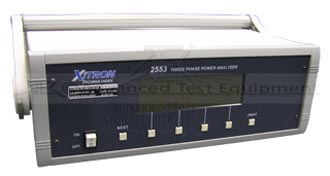

Xitron 2553 Three Phase Power Analyzer
Enlarge Image
Xitron Power Analyzers 2553
Request Quote Print Page
2553 Datasheet
The Xitron 2553 Power Analyzer incorporates the ideal combination of precision, speed and ease-of-use in an instrument so economical it can be on every bench.

The six-key front panel has four 'soft' keys with menus that simplify the selection of measurements. In addition to numerical results, the 2553 captures wave forms with true 400-point precision. These waveforms can be displayed or directly output at full resolution to a PCL printer. Power and amplitude measurements with a base accuracy of 0.1% are automatically synchronized to the fundamental frequency. Peak measurements of voltage, current and power include continuous, inrush and history modes plus an accumulation mode for W-Hr, A-Hr, and VA-Hr.
Xitron Power Analyzers 2553 Features
  • Low Cost/High Performance
  • Measures and displays power, frequency, harmonics, THD, CF, K-Factor, Triplens & Inrush
  • Up to 1500 volts peak, 40 amps peak internally & up to 10,000 amps with the use of External Current Transducers
  • DC and 20 mHz - 80 kHz Frequency Range
  • Graphics Display shows numerical results, waveforms, bar graphs & history plots
  • 16-bit A-D takes up to 220k samples/second
  • Simple 6-key user interface
  • PCL/Text Printer output, IEEE488 interface included
  • 1ø2W, 1ø3W, 3ø3W and 3ø4W configurable using the same wiring
