AH Systems SAS-200-530
Request Quote Print Page
Datasheet

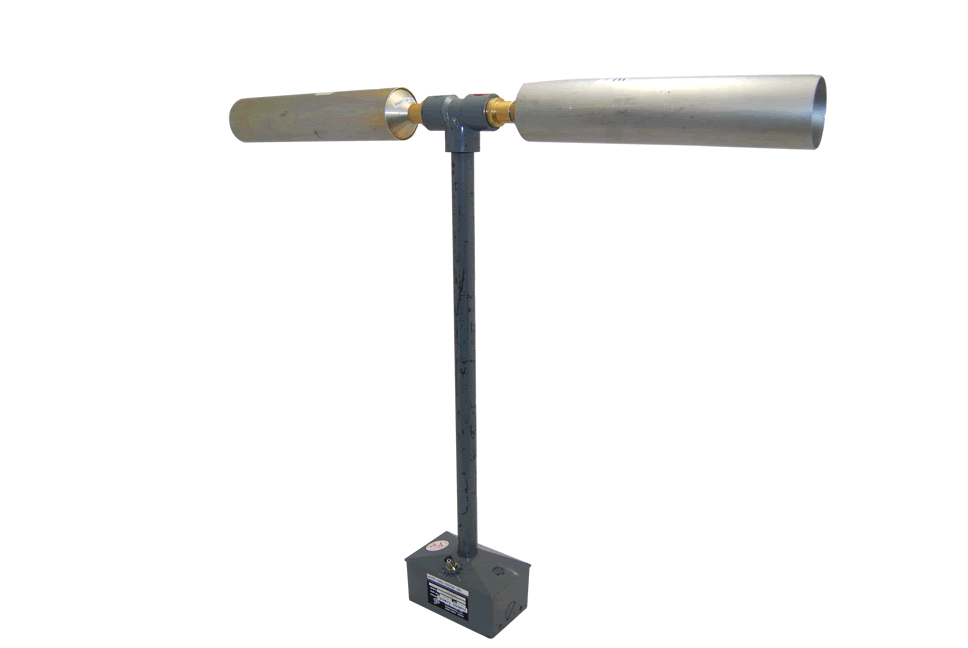

The AH Systems SAS-200-530 is a Broadband (or "fat") dipole antenna that provides calibrated reception of electromagnetic energy over the frequency range of 160 MHz to 500 MHz. The SAS-200-530 may be used over a broader range for monitoring purposes. The antenna is ruggedly constructed of aluminum members. The antenna is designed for use in either a shielded enclosure or for use as an externally mounted unit. It is strong, light-weight, transportable and corrosion resistant.



Features:

  • Broad Frequency Coverage: 160 MHz - 500 MHz
  • Removable Elements for Portability and Storage
  • Shielded Room or Out-to-Door Use
  • No Tuning Required



Specifications:

Frequency Range 160 MHz - 500 MHz
Impedance 50 ohms Nominal
Connector BNC
Size 22" x 24"
Weight 2.9 lbs (1.3 kg)
