Compliance Designs Roberts A100 Antennas
Enlarge Image
Compliance Designs Roberts A100 Antennas Compliance Designs Roberts A100 Antennas
Compliance Design A100
Request Quote Print Page
Specifications

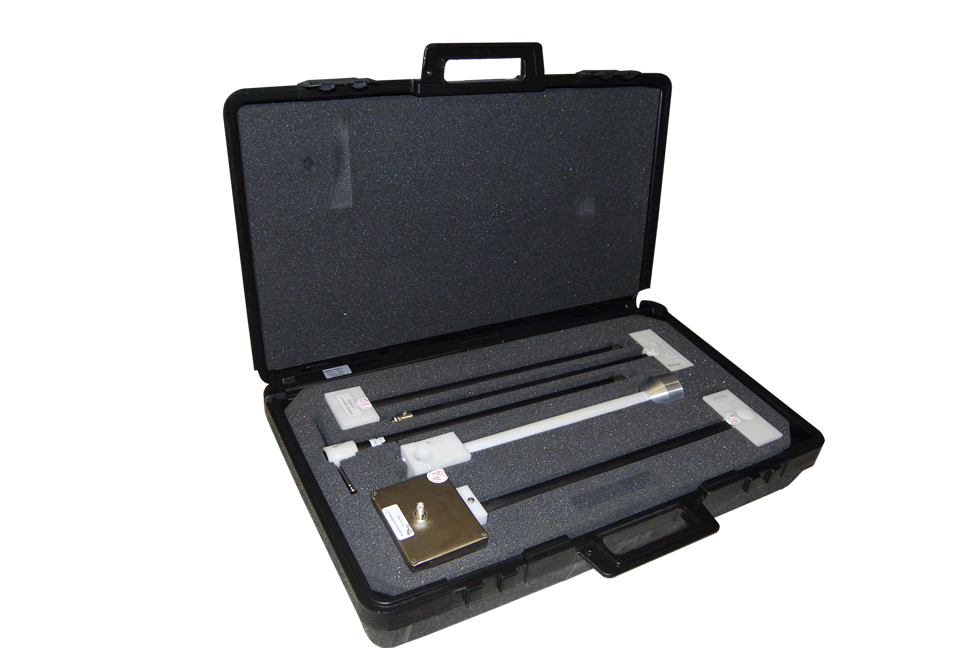

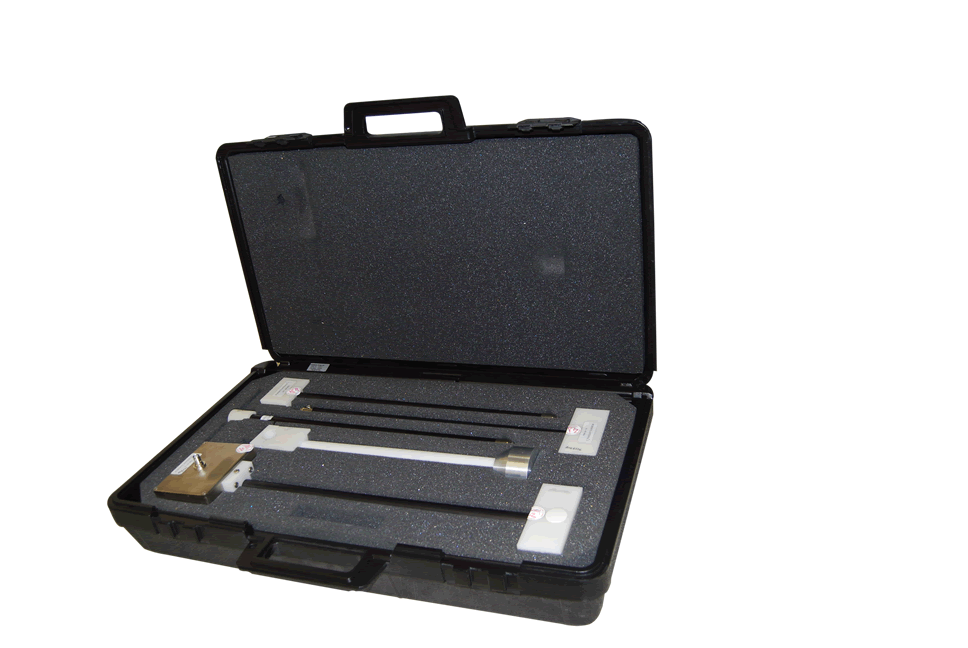

25 - 1000 MHz Tuned Dipole Antenna Set (4 antennas). Unit of four baluns with four element extension rods and tripod mount in a 26" x 20" x 4" case.

Compliance Design A100 Specs
Balun 1: 25 to 65MHz, up to 260 watts
Balun 2: 65 to 180MHz, up to 160 watts
Balun 3: 180 to 400MHz, up to 80 watts
Balun 4: 400 to 1000 MHz
