AH Systems SAS-572 High Gain Horn Antenna

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent AH Systems SAS-572 High Gain Horn Antenna
Enlarge Image

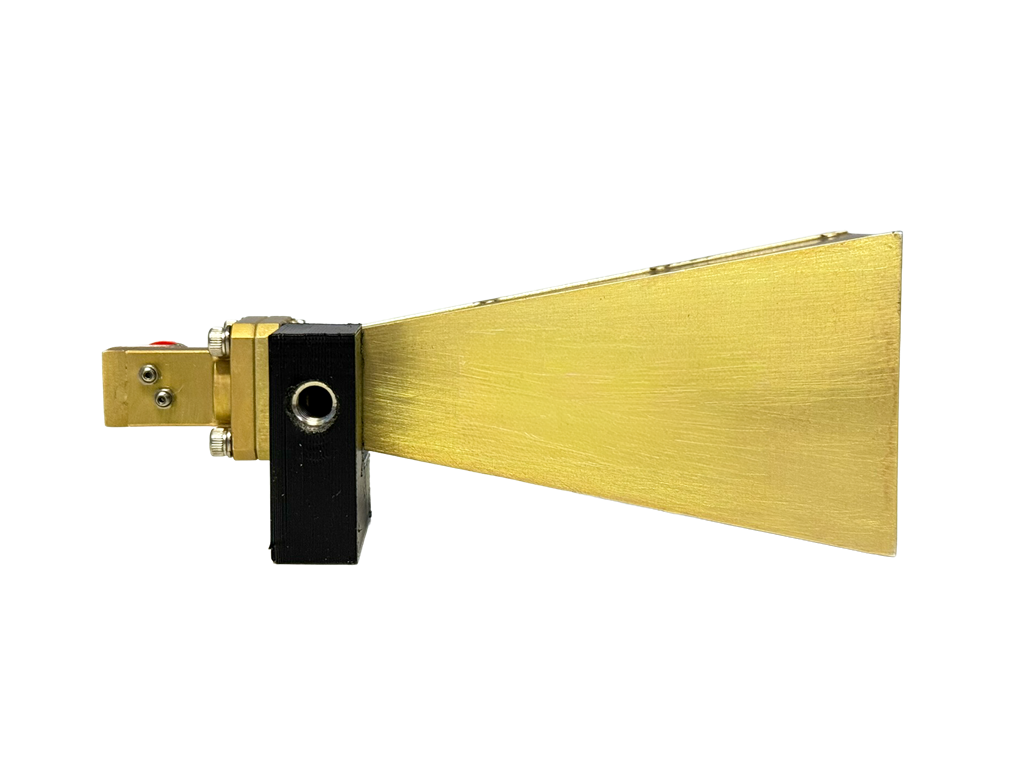

AH Systems SAS-572
Request Quote Print Page
SAS-572 Datasheet Accessory Kit
The A.H. Systems' Horn Antenna is a broadband antenna that offers excellent performance over the frequency range of 18 GHz to 26.5 GHz. High gain, low VSWR, and input handling capability up to 50 watts make this horn antenna excellent for both radiated emissions and immunity testing.
AH Systems SAS-572 Features
  • Frequency Range of 18 GHz to 26.5 GHz
  • Receive and Transmit
  • Individually Calibrated (1 Meter calibration included, horizontal polarization)
  • Linearly Polarized
  • FCC, MIL-STD, VDE and TEMPEST Testing
AH Systems SAS-572 Specs
Frequency Range 18 GHz - 26.5 GHz
Antenna Factor (1 Meter) 36.7 to 37.1
Gain (dBi) 18.6 to 21.6
Maximum Continuous Power 50 Watts
Max Radiated Field 200 V/m
Beamwidth 15°
Impedance 50 ohms
Connector WR-42 to SMA female
Mounting Base ¼ - 20 Thread, female
