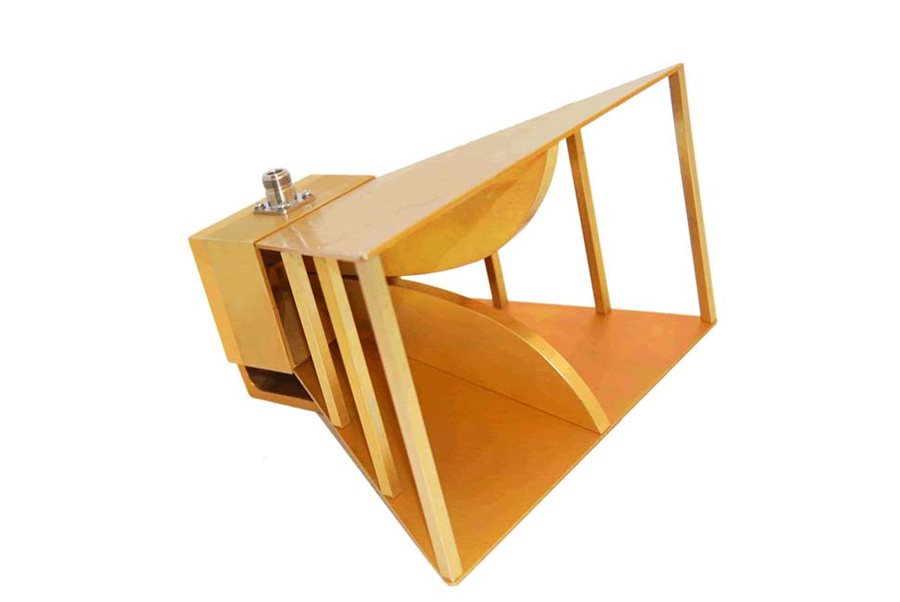

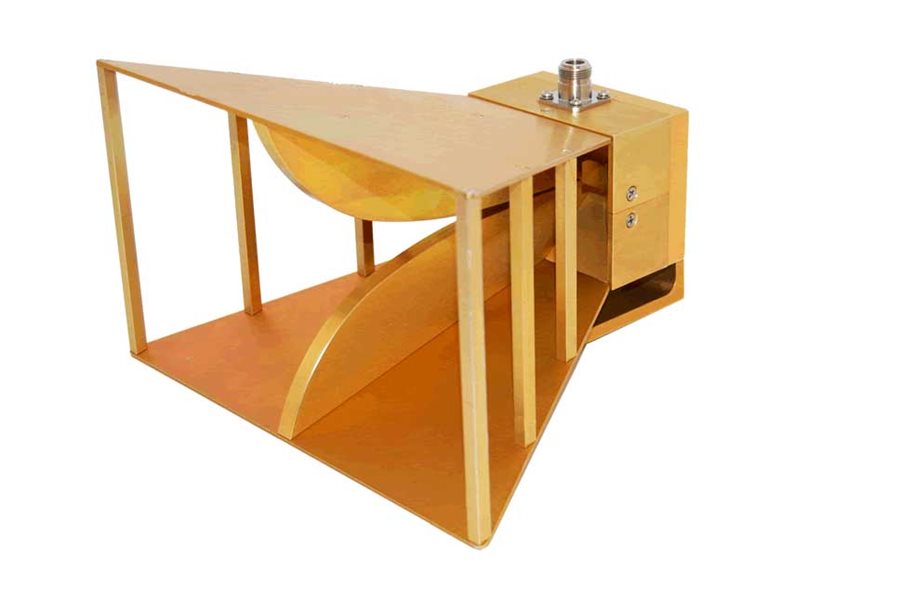

AH Systems SAS-571 Double Ridge Horn Antenna 700MHz - 18GHz

Rent AH Systems SAS-571 Double Ridge Guide Horn Antenna 700 MHz - 18.0 GHz
Enlarge Image
Rent AH Systems SAS-571 Double Ridge Guide Horn Antenna 700 MHz - 18.0 GHz Rent AH Systems SAS-571 Double Ridge Guide Horn Antenna 700 MHz - 18.0 GHz
AH Systems SAS-571
Request Quote Print Page
Manual Datasheet Accessory Kit
700 MHz - 18.0 GHz Double Ridge Guide (DRG) Horn Antenna

AH Systems SAS-571 Features
  • Receive and transmit
  • Linearly polarized
  • FCC, MIL-STD, VDE, and TEMPEST Testing
AH Systems SAS-571 Specs
Frequency Range 700 MHz - 18.0 GHz
Maximum Continuous Power 300 W
Impedance 50 ohms
Radiated Field 200 V/m maximum
Connector Type N-Type female
Mounting Base ¼-20 threaded, female
Length 11.0 in. (27.9 cm)
Width 5.6 in. (14.2 cm)
Height 9.6 in. (24.4 cm)
Weight 3.5 lb. (1.59 kg)
