AH Systems SAS-590-12 Octave Horn Antenna

4.0 - 8.0 GHz

The SAS-590-12 Octave Horn Antenna has a frequency range of 4 GHz to 8 GHz, with a typical gain of 15.5 dBi. This device can handle a maximum CW power of 200W and generate fields exceeding 200 V/m. It features a 50Ω impedance with a VSWR of 1.2:1 (1.5:1 max), ensuring efficient signal transmission. Common applications for this device include immunity and emissions testing.

Product Info Related Products

Frequency Range:	4 GHz – 8 GHz
Gain:	15.5 dBi typical

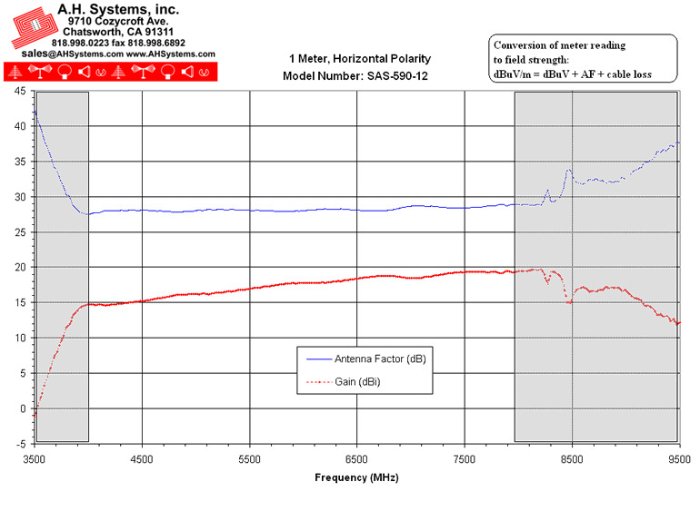

Antenna Factor:	30 dB typical
Maximum CW Power:	200 Watts
Max Radiated Field:	500 V/m
Impedance:	50Ω

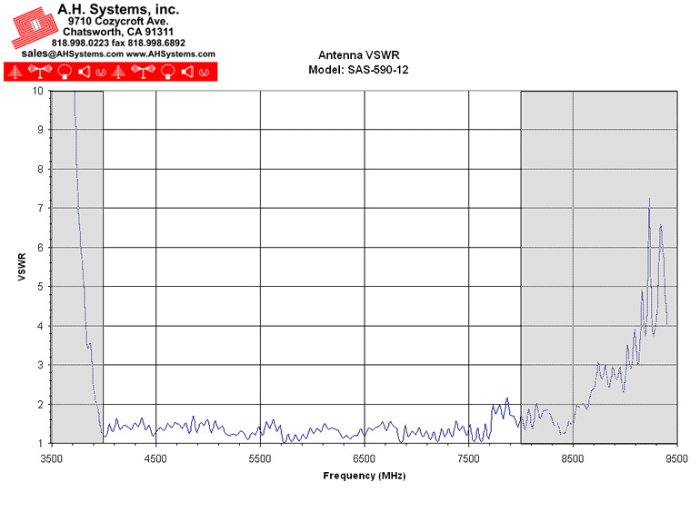

VSWR:	1.2:1 (1.5:1 max)
Connector:	WR-159 to N-Type female adapter
Physical Dimensions (W x H x L):	4 in. (10.3 cm) × 5.4 in. (13.8 cm) × 9 in. (23 cm)
Weight:	1.3 lbs (0.6 kg)
