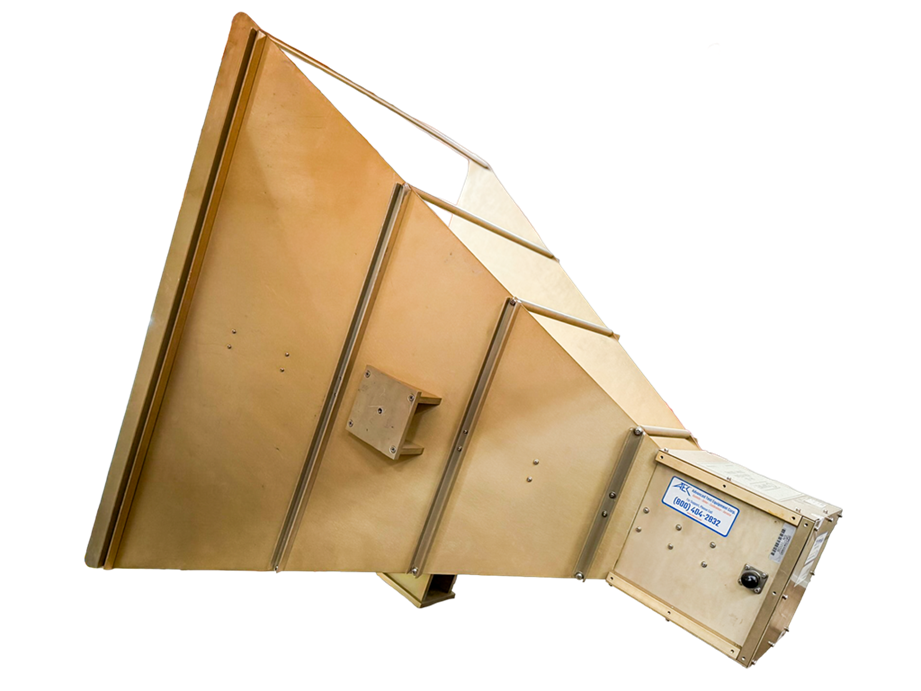

Com-Power AH-220 Double Ridged Horn Antenna, 200 MHz - 2 GHz

Com-Power AH-220 Double Ridged Horn Antenna | 200 MHz - 2 GHz
Enlarge Image
Com-Power AH-220
Request Quote Print Page
Datasheet
200 MHz - 2000 MHz Double Ridged Horn Antenna

Com-Power AH-220 Specs
Frequency Range 200 MHz to 2000 MHz
Input 500 Watt CW
Antenna VSWR (average) 2.5 :1
Polarization Linear
Output Impedance 50 Ω
Antenna Output Connector Types N(f)
Weight 27 lbs.
Size 37" X 38" X 27"
