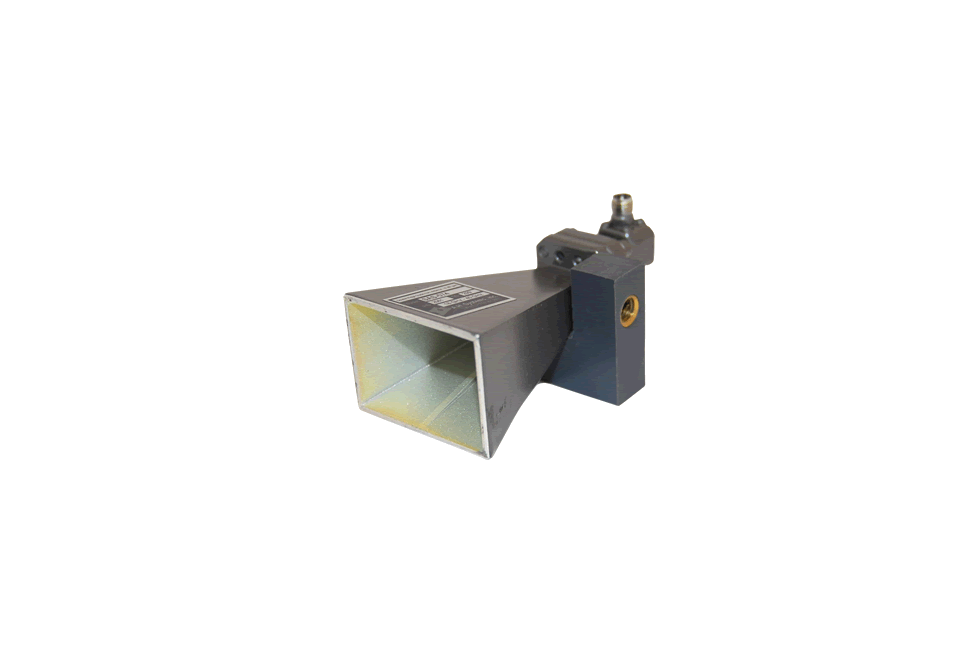

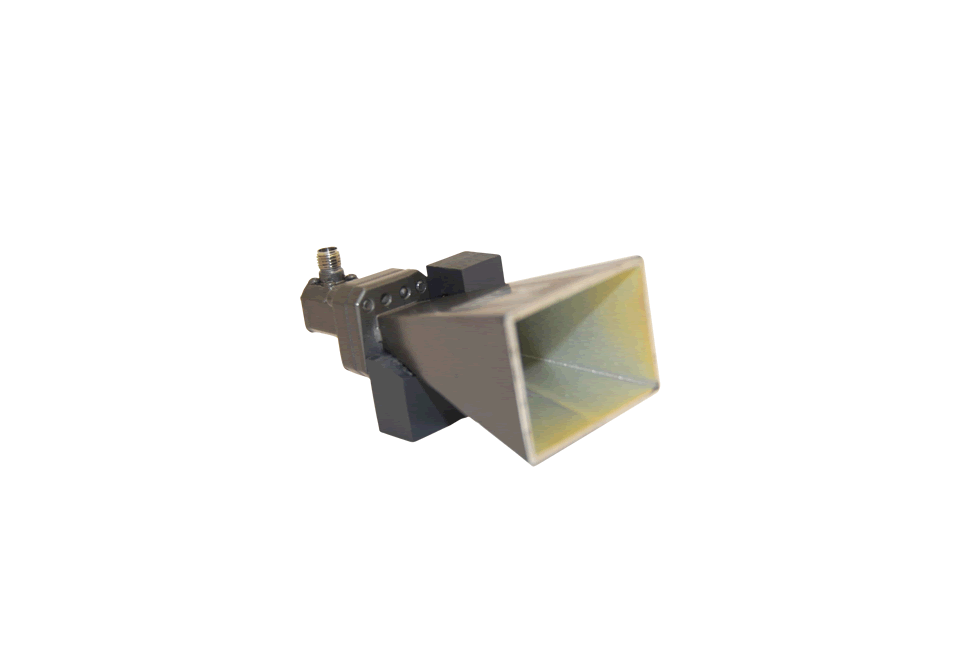

AH Systems SAS-574 Double Ridged Horn Antenna 18 to 40GHz

Rent AH Systems SAS-574 Double Ridged Horn Antenna
Enlarge Image
Rent AH Systems SAS-574 Double Ridged Horn Antenna Rent AH Systems SAS-574 Double Ridged Horn Antenna
AH Systems SAS-574
Request Quote Print Page
Datasheet
18 GHz - 40 GHz Double Ridged Horn Antenna

AH Systems SAS-574 Features
  • Receive and Transmit
  • Individually Calibrated (1 Meter calibration included, horizontal polarization)
  • Linearly Polarized
  • FCC, MIL-STD, VDE and TEMPEST Testing
AH Systems SAS-574 Specs
Frequency Range 18 GHz- 40 GHz
Antenna Factor (1 meter) 40.3 to 41.1
Gain 15 to 21.2 dBi
Maximum Continuous Power 10 W
Radiated Field 150 V/m maximum
Connector Type WRD-180C24 to 2.9 mm female
Mounting Base ¼-20 threaded, female
Width 1.2 in. (3 cm)
Height 1.6 in. (4.1 cm)
Weight 0.2 lbs. (0.09 kg)
