AH Systems SAS-590-11 Octave Horn Antenna

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent AH Systems SAS-590-11 Octave Horn Antenna
Enlarge Image
AH Systems SAS-590-11
Request Quote Print Page

The AH Systems SAS-590-11 has medium gain and low VSWR; excellent for both immunity and emissions testing.
AH Systems SAS-590-11 Features
  • 2 GHz to 4 GHz
  • Individually Calibrated
  • Receive and Transmit
  • Rugged Construction
  • 1 Meter calibration included, horizontal polarization
AH Systems SAS-590-11 Specs
Frequency Range 2 GHz - 4 GHz
Gain 15 dBi Typ.
Maximum Continuous Power 300 Watts
Maximum Peak Power 3K Watts
Impedance 50 ohm

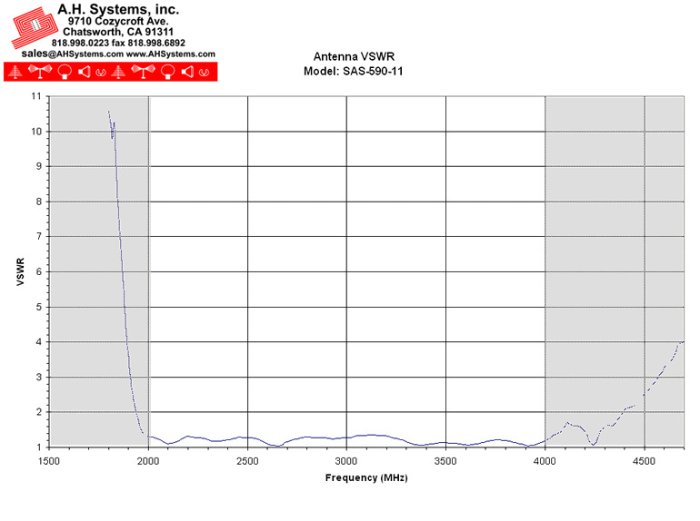

VSWR 1.5:1 (2.0 max)
Connector WR-650 to N-Type female adapter
