Keysight 6253A Dual Output Power Supply

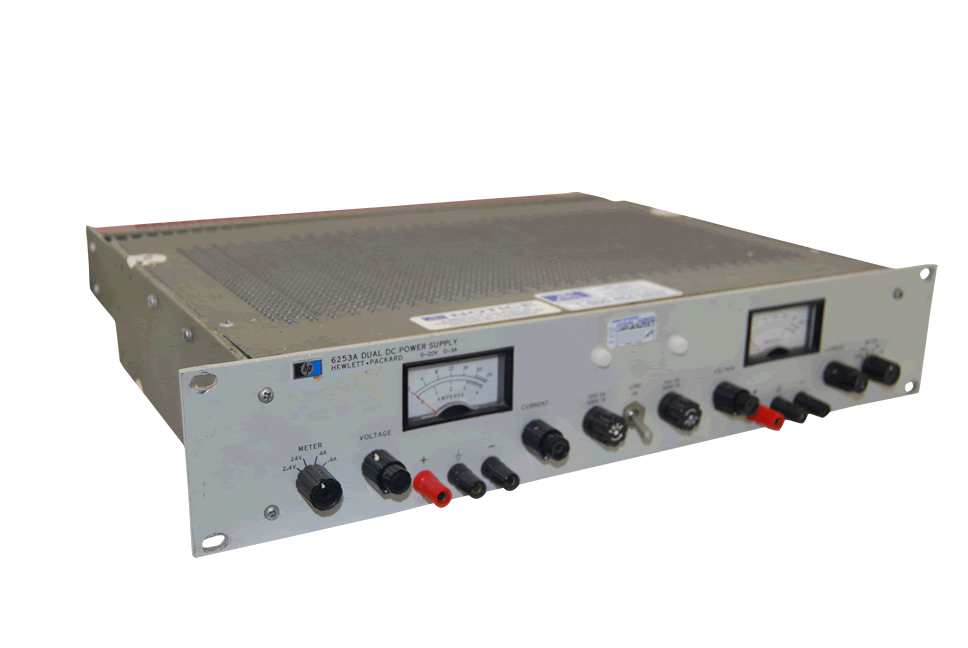

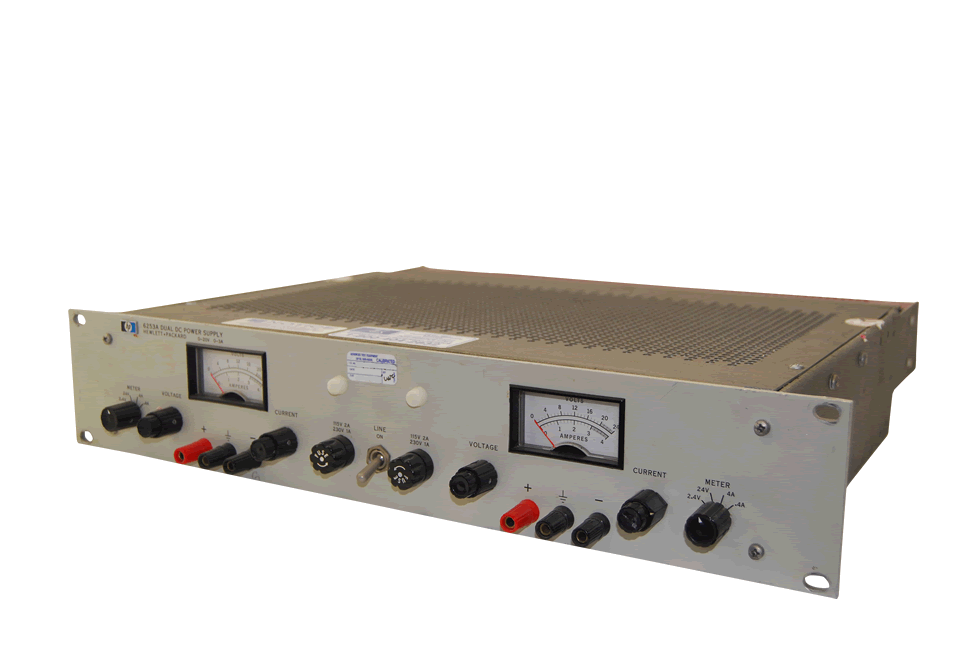

HP/Agilent 6253A Dual Output DC Power Supply
Enlarge Image
HP/Agilent 6253A Dual Output DC Power Supply HP/Agilent 6253A Dual Output DC Power Supply HP/Agilent 6253A Dual Output DC Power Supply
Keysight 6253A
Request Quote Print Page
Manual Specifications

Features:

  • DC Outputs: 0 to 20 Volts; 0 to 3 Amp
  • Constant voltage/constant current operation
  • Remote sensing and programming
  • Auto-series, -parallel, and -tracking operation
  • Front and rear output terminals
  • Floating output - use as positive and negative source
  • Using the supplys auto-tracking capability, opposite-polarity voltages (± 20 V) are possible
  • Power: Standard input voltage is 115 Vac ± 10%
  • Input power frequency, maximum input current, maximum power consumption are: 48 to 440 Hz, 2.6 A, 235 W
  • Weight: Net: 28 lbs
