J2298B T1 Simulate/Monitor Interface Card

J2298B T1 Simulate/Monitor Interface Card
Enlarge Image
Keysight J2298B
Request Quote Print Page
Manual Datasheet

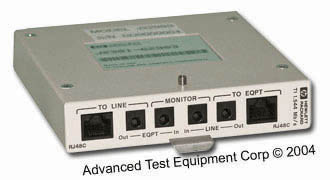

This interface is suitable for plugging into the J2300C/D Advisor mainframe and the J2900A High Speed undercradle. The J2298B has RJ-48C connectors. These modules handle cell and frame-based technologies, i.e. ATM, Frame Relay, ISDN, HDLC, X.25, PPP, and BERT. These interfaces do not support Frame Relay CIR and SLA measurements.

Keysight J2298B Specs
Connectors:
  • J2298B: balanced 100 ohms RJ-48C and WECO mini-Bantams



Line Code:
  • ATM: B8ZS
  • WAN: B8ZS, AMI

Framing:
  • ATM:
    Extended Super Frame (ESF)
  • WAN:
    Extended Super Frame (ESF)
    D4 (Super Frame) Ft and Fs, or Fs only
    Fractional, any multiple of 56 kbps or 64 kbps channels
    Unframed 1.544 Mbps
  • Cell Mapping:
    Direct (normal mode, ITU-T G.804) and PLCP (obsolete mode)
  • Cell Scrambling:
    Conforms to ITU-T I.432.1 (x 43 + 1) and may be turned on or off
