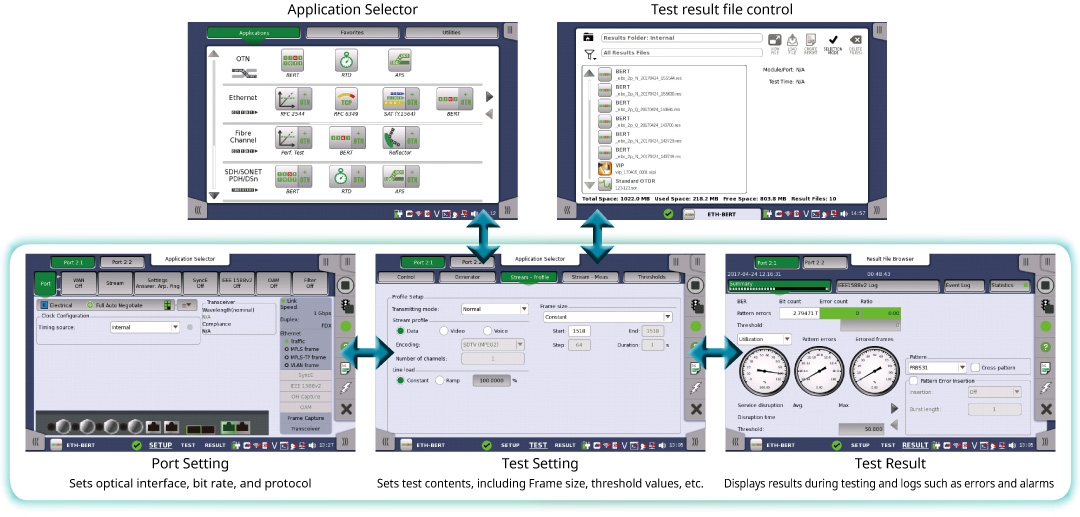

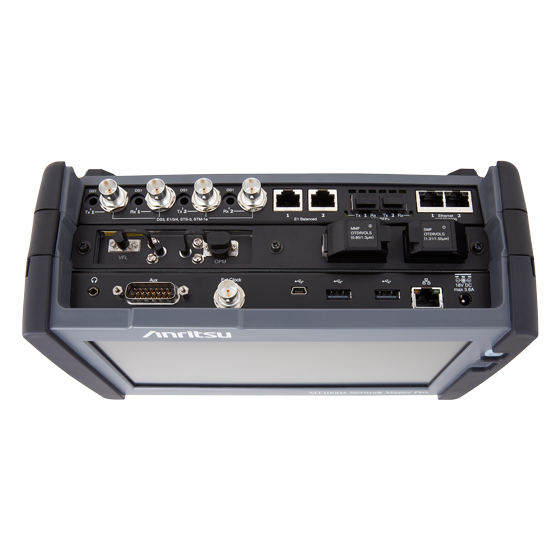

The Anritsu MT1000A Network Master Pro is a multifunctional network field tester with 10G & 100G Ethernet, OTDR, OTN, SONET / SDH, CPRI and PTP testing capabilities. Anritsu MT1000A Network Master Pro main units are compact, lightweight and protected by a rugged frame designed to provide years of operation in harsh environments. The MT1000A is easy to operate with a 9-inch intuitive touchscreen display, quick module configuration, and a simplified 3-window interface that streamlines setup, testing and results.

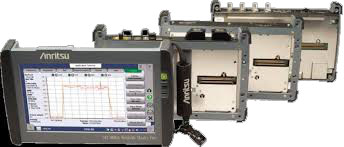

Choose from the following modules to meet your testing needs:

Transport (10G / 100G Multirate) Module (MU100010A / MU100011A)

Anritsu MT1000A Transport Modules are designed to test at speeds ranging from 1.5 Mbps to 10 Gbps and 10 Mbps to 100 Gbps for comm. network installation and maintenance. With these multirate modules, the MT1000A is a complete, portable test system capable of interfacing with Ethernet, CPRI, OTN, SONET and more. Operators can perform mobile fronthaul & backhaul commissioning and inspection, commission and troubleshoot carrier access networks, and test metro and core networks.

OTDR Module (MU100020A / MU100021A / MU100022A / MU100023A)

The Network Master OTDR Module provides users with enhanced optical cable fault troubleshooting, detecting and displaying fiber faults and identifying return losses. These OTDR modules also operate as fiber inspection devices, opetical power meters, and visible light sources. Testers can see a graphical display of the fiber status and Pass / Fail test results with PDF reports available at the press of a button. Fiber cabling greater than 100 km and PON Networks with a max. of 1 x 128 splitters can be measured. High dynamic range measurement is available: 1310 nm, 1550 nm, and 1625 nm.

CPRI RF Module (MU100040B)

MT1000A CPRI Modules create visualizations of the LTE spectrum of both uplink and downlink signals on a cell site’s IQ data by means of CPRI technology between the BBU (Baseband Unit) and the RRH (Remote Radio Head). All interference, even intermittent, can be detected due to the module’s fast trace update rate. Once an interferer has been discovered, users can center the signal and zoom in for comprehensive analysis.

High Performance GPS Disciplined Oscillator (MU100090A)

The GPS Oscillator option allows for PTP commissioning tests, protocol tests, SyncE frequency deviation measurements and one-way delay measurement. Anritsu’s rubidium oscillator delivers high stability that translates to high holdover performance, retaining the absolute phase of the ToD for long periods after losing a GPS signal.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Supports communication networks up to 100G	Supported for 100G/25G Ethernet Supported for 100G/40G OTN Condensing the communication network opening maintenance technologies into one module: Ethernet, eCPIR/RoE/CPRI/OBSAI, OTN, Fibre Channel, SDH/SONET, PDH/DSn Multiple measuring instruments can be operated and measured
Intuitive Fiber Status Monitoring	Select from four modules: 3 wavelength SM (1310/1550 nm, 1650 nm) 3 wavelength SM (1310/1550/1625 nm) 2 wavelength SM (1310/1550 nm) SM/MM combo (1310/1550 nm, 850/1300 nm) Multi-pulse measurement Fiber visualizer: graphical summary and Pass/Fail evaluation display
Uplink and Downlink spectrum measurements for cell site deploying CPRI technology	Displays LTE spectrum of CPRI IQ data Fast update rate to capture intermittent interferers Auto configuration of CPRI parameters Read and display Layer 2 alarms and SFP data BBU emulation function for RRH
Time Synchronization Measurement with GPS Clock	1PPS Signal phase measurement: measuring the phase difference the GPS signal and the network PTP timestamp: SyncE frequency synchronization deviation measurement Synchronizing Two Units: synchronizing two MT1000A units combined with MU100011A
