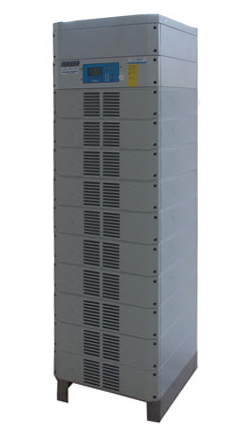

Magnavolt FKA480-12-6000 Switch Mode DC Power Supply 12 V, 6000 A

  Tech Support
(800) 404-2832
ATEC Assurance With Every
The power supply construction of the Magnavolt FKA480-12-6000 Programmable Switch Mode DC Power Supply 12 Volts, 6000 Amps is characterized by its flexibility and the modular design. It can be operated continuously at maximum output, are designed to withstand tough conditions in an demanding environment and are not sensitive to interference. The FKA480-12-6000 is serviced from the front, therefore saving space. Installation is simple and if more power is required in future, additional modules can be added very easily on site at any time.  The power supply operates with variable independent current and voltage settings. The set values can be changed during operation, ramping up to independently set limits. They can be controlled manually on the front panel or remotely via analog or computer interfaces, have a low ripple (<1% of set output value), an efficiency of 90% (typical) and a power factor of 0.93 at any load. Operation and control are easy and standardized throughout the whole range.

Operating Modes:
Parallel Power module sub-modules are connected in parallel supplying the rated output voltage and current.
Series Power module sub-modules are connected in series supplying twice the rated output voltage and 1/2 the rated output current.
Dual Power module sub-modules are independent, supplying
2 x the rated output voltage and 2 x 1/2 the current. Both sides are switched on and off at the same time. However, set values for current and voltage can be set different for each side.
