| General Specifications |
| PRF |
10 Hz to 2000 Hz in 10 Hz increments |
| Pulse Width |
Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare technology |
| Gain |
0 to 110 dB |
| Receiver Bandwidth |
0.2 MHz to 26.5 MHz at –3 dB |
| System Linearity |
Horizontal: ± 0.5% FSW |
| Resolution |
0.25% FSH, amplifier accuracy ± 1dB |
| Reject |
0 to 80% FSH with Visual Warning |
| Amplitude Measurement |
0 to 110% full screen height with 0.25% resolution |
| Automated Calibration |
Velocity, Zero Offset
Straight Beam (First Backwall or Echo-to-Echo)
Angle Beam (Soundpath or Depth) |
| Test Modes |
Pulse Echo, Dual, or Through Transmission |
| Range |
3.36 mm to 13,388 mm (0.132 in. to 527.10 in.) at 5,900 m/s (0.2320 in./µs) |
| Velocity |
635 m/s to 15240 m/s (0.0250 in./µs to 0.6000 in./µs) |
| Zero Offset |
0 to 750 µs |
| Refracted Angle |
0° to 90° in 0.1° increments |
| Measurement Gates |
2 fully independent gates for amplitude and TOF measurements |
| Measurements |
| Measurement display locations |
5 locations available (manual or auto selection) |
| Gate (1, 2) |
Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min./Max. Depth, Min./Max. Amplitude |
| Echo-to-Echo |
Standard Gate 2-Gate 1, Optional IF Gate Tracking |
| Other measurements |

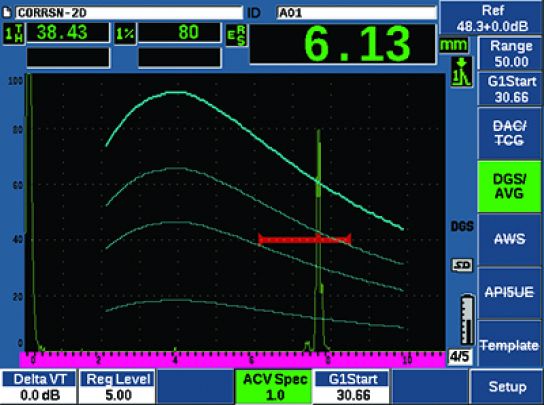

Overshoot (dB) value for DGS/AVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 A, B, C and D values, Reject Value, Echo to RefdB values |
| DAC/TCG |
Standard |
| DAC points |
Up to 50 points, 110 dB dynamic range |
| Special DAC modes |
Custom DAC (up to 6 curves), 20-80% View |
| Curved surface correction |
Standard OD or Bar correction for Angle Beam measurements |
| Corrosion (optional) |
Zero-cross measurement algorithm, V-Path correction, Single or Echo-to-Echo, Encoded B-scan |
