The ASD with DaVinci Power™ technology represents the next generation of precision programmable AC-DC power conversion.

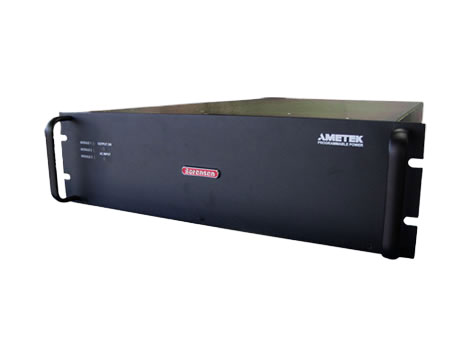

The ASD with its 3U, 30kW water-cooled packaging provides the highest power density available. The ASD is designed for industry leading load transient response with outstanding output ripple and noise. The water-cooling packaging allows for use in environments that normally exclude air-cooled power supplies.

The ASD advanced digital architecture, with real-time digital control and Graphical User Interface (GUI), enables many features to better control and monitor your process or application. The optional advanced features package includes a built-in oscilloscope function for measurement and display of: power, voltage, current, output impedance, output cable impedance and output cable voltage drop. The ASD allows you to program different "fault levels", enabling detection of output cabling, connections or load problems before they cause critical system problems. The ASD can replace your PLC device by closing the loop on an external parameter such as temperature. The ASD's Advanced Diagnostics And Maintenance (ADAM℠) feature includes a flight data recorder feature that lets you access multiple recorded parameters, such as: voltage, current, power, load impedance, faults and input voltage. This allows you to easily determine "why" you had an unexpected outcome.

The advanced digital monitoring and control features combined with industry leading power density and reliability makes the Sorensen ASD the supply of choice for stringent and high value processes and applications.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Input
Voltage Ranges	342VAC to 440VAC (model D). Nominal rating is 380/400VAC. 432VAC to 528VAC (model E). Nominal rating is 480VAC
Frequency	Rated 47 through 63 Hz
Efficiency	>91% (typical), nominal line, full load.
Max Current, per phase, low line		400/380Vac	480Vac
	10kW unit (1 module)	21Arms	17Arms
	20kW unit (2 modules)	42Arms	33Arms
	30kW unit (3 modules)	63Arms	50Arms

Current Inrush	200A Typical
Power Factor	>0.9 @ Full Load and at nominal line
Brownout Provisions	Designed to meet SEMI F47-0706, S3, S8, S14 at nominal input voltages

Output
Voltage Output	10kW	20kW	30kW	Noise (pk-pk) ***	Noise (RMS) ***
40Vdc	250A	500A	750A	150mV	40mV
60Vdc	167A	334A	501A	150mV	40mV
() Measured at the load terminals, with 1uF in parallel and 6ft of low-inductance load cable with supply operating at full load and nominal input line voltage. () RMS noise is measured directly across the output terminal with supply operating at full load and nominal input line voltage. (**) Value is for 30kW, single voltage models. Other variations may increase value by 2x.
Sense	To compensate load cables voltage drop, units can generate 2% additional voltage at full scale of output voltage.
