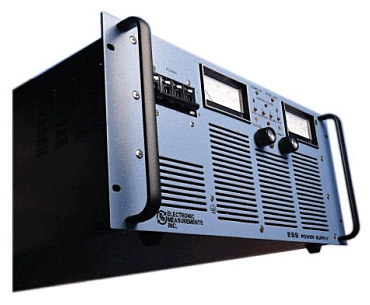

EMI / TDK-Lambda ESS30-333 30V, 333A 10 kW DC Power Supply

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

This product has been discontinued.

View the TDK-Lambda

The EMI / TDK-Lambda ESS30-333 30V, 333A, 10 kW DC Power Supply is a high power Constant Voltage, Constant Current Programmable DC power supply. Since its introduction in 1995, the ESS Series has evolved into one of the most reliable, compact, high performance power supplies available. It features a pulse-by-pulse current limit which provides excellent performance in demanding high current applications such as RF Amplifiers, DC Motors and Magnetic Coils. The many standard features make it an excellent choice for both OEM and laboratory applications.

This very high density supply provides 10 kW in a 5U (8.75") high rack-mount package. Front panel includes potentiometers for voltage and current control along with meters for both. LED indicators clearly show Overvoltage Condition, Inverter Failure, Phase Loss, and Control Failure.

In addition to Front Panel Controls, the Rear Panel offers analog programming and monitoring of voltage and current as well as an optional RS232/IEEE 488 interface. For higher power systems, ESS power supplies may be connected in series or parallel. Contact factory for details.

TDK-Lambda Americas can provide a wide range of custom features in the ESS package. Some of them include: special front panel color, safety and control interlocks, custom voltage and/or current outputs, and precision current monitor.

Instant Quote

Regulation:	0.1%
Stability:	0.05%
Efficiency:	85-91%
Transient Response:	650 microseconds for 30% load change
Operating Temperature:	0-50°C, Full output, derate above 50°C

EMI / TDK-Lambda ESS30-333 30V, 333A 10 kW DC Power Supply

This product has been discontinued.
