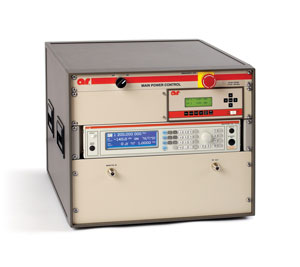

Amplifier Research CI00400A RF Conducted Immunity System

Amplifier Research CI00400A RF Conducted Immunity System
Enlarge Image
Request Quote Print Page
Specifications
The Model CI00400A is a fully self-contained state of the art system designed to test RF Conducted Immunity. The system contains a signal generator, 3 channel power meter, 100W nominal AR amplifier 10kHz to 400MHz, directional coupler, and emcware® control software. Everything is contained in a single housing, which eliminates setup issues. This system provides the versatility needed for every test laboratory and equipment manufacturer. The RF amplifier and the signal generator can be used independently of the system. If special needs arise or standards were to change a larger amplifier can be connected to the system. The use of spectrum analyzers and monitoring equipment may also be controlled by the software.

Option 1 adds an additional power head for testing automotive standards such as Ford, GM, Chrysler, BMW, Renault, and ISO11452-4. Option 2 adds data acquisition capability. Option 3 provides a laptop PC preloaded with the test software. Option 4 is a lower cost solution providing all the functions and features of the full CI00400A base model without the cost of the internal amplifier.

Complete testing solutions to the following standards:
  • MIL-STD-461D & E CS114
  • DO160D & E BCI Testing
  • EN/IEC 61000-4-6
  • IEC 60601-1-2
  • EN 50130-4
  • EN 61000-6-1/2
  • EN 55024

Options:
  • 1: Additional power head to add the ability to monitor reverse power
  • 2: Data acquisition card.
  • 3: Laptop PC with software preinstalled
  • 4: Amplifier removed; requires use of external amplifier

Specifications:

RF Amplifier Specifications
Frequency range 10 kHz to 400 MHz
Power rating 100 Watts Nominal
1dB compression 75 Watts Nominal
Harmonic Distortion -20dBc at 50 Watts
Mismatch tolerance 100% of rated power without
fold back. Will operate without
damage or oscillation with any
magnitude of source and load
impedance.
Gain 51dB minimum

Signal Generator Specifications
Frequency range
resolution
9 kHz to 1.2 GHz
1Hz
Power range
resolution
-140 to +13 dBm
0.1dB
Modulation AM, FSK. FM, Phase, External
Pulse
