Schloder CDG7000-75-10

10kHz - 250MHz, 75W Amp, Magnetic & Conducted Generator

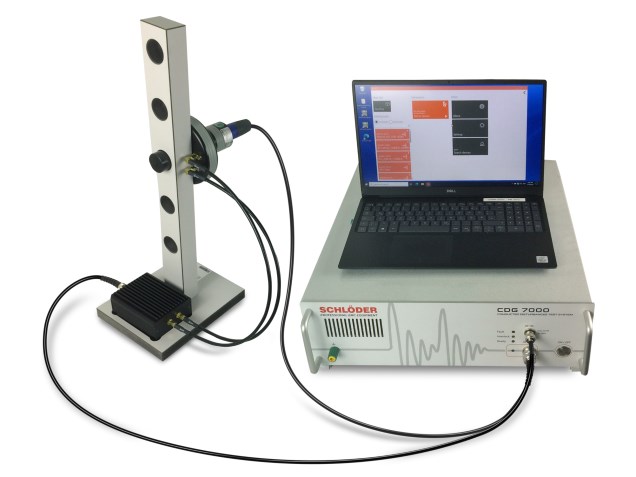

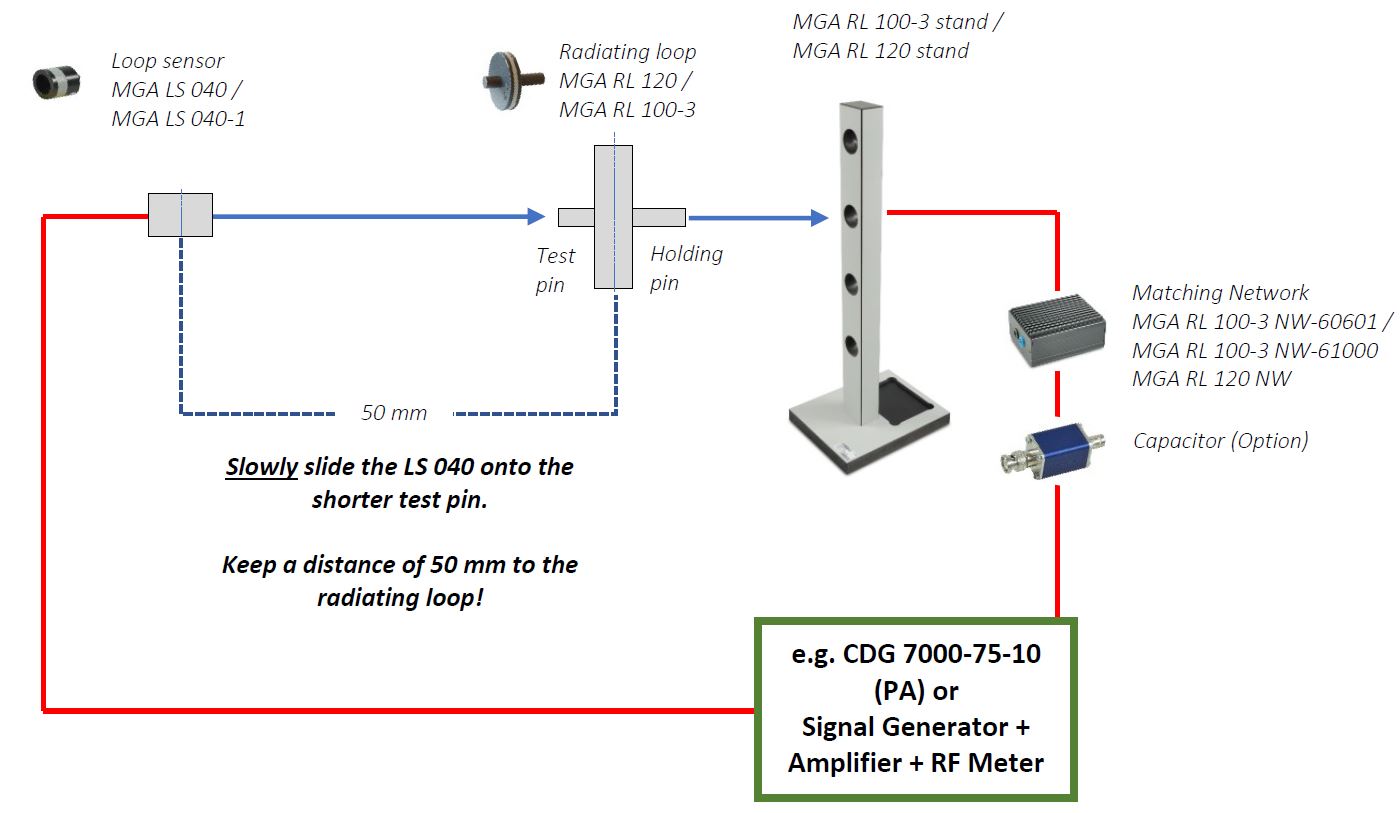

The Schloder CDG7000-75-10 is a multifunctional magnetic and conducted generator, designed to meet interference immunity standards such as IEC 61000-4-6, 60601-1-2, and 61000-4-39. This device has the combined capabilities of an RF signal generator (with a signal generator frequency range of 4kHz - 1200MHz), an RF power amplifier, a 3-channel RF voltmeter, and a directional coupler with a frequency range of 10 kHz to 250 MHz.

ATEC also rents a variety of power line CDNs, data line CDNs, EM clamps, and current monitor probes to go along with a conducted immunity system rental. Scroll down below for a list of our add-ons.

Product Info Available Add-Ons Related Compliance Standards Related Products

Conducted RF generator frequency range	10 kHz - 250 MHz
Signal generator frequency range	4kHz - 1200MHz
Output Power (Nominal)	75 W
Gain	51 dB nominal
Input / Output Impedance	50 Ω
Input VSWR	1.5 : 1 max.
Temperature Range	0 to 40 °C
AC Input	100 - 240 VAC 50/60 Hz
Dimensions (W x H x D)	450 x 135 x 504 mm (17.7 x 5.3 x 19.8 in)
Weight	11 kg (24 lb.)

Compact device
Consists of an RF signal generator, an RF-power amplifier, a 3-channel RF voltmeter, and a directional coupler
RF power amplifier is available in three different models
The included application software (HELIA 7 - Basic) enables extensive reporting functions and EUT monitoring
Simple expansion with external amplifier via 2nd generator output
SCPI command set enables easy integration into own software systems

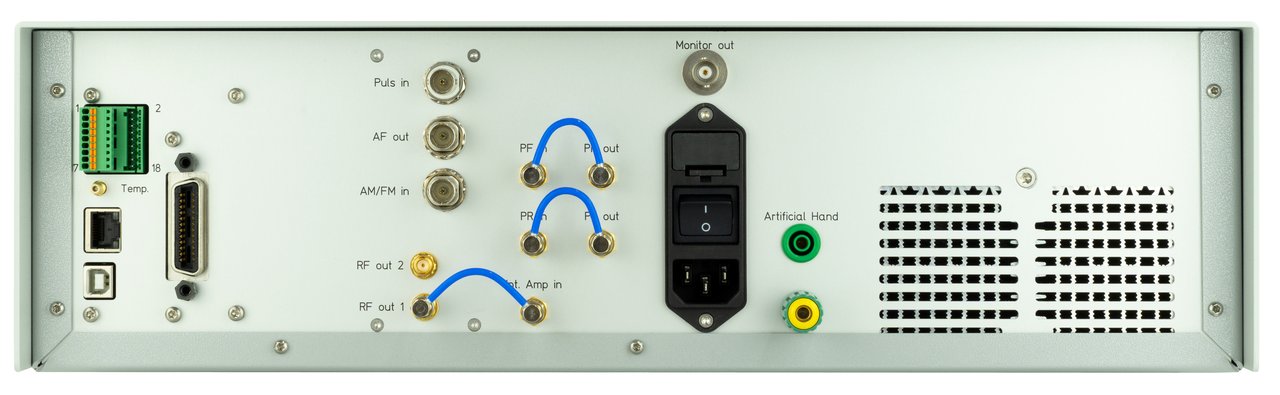

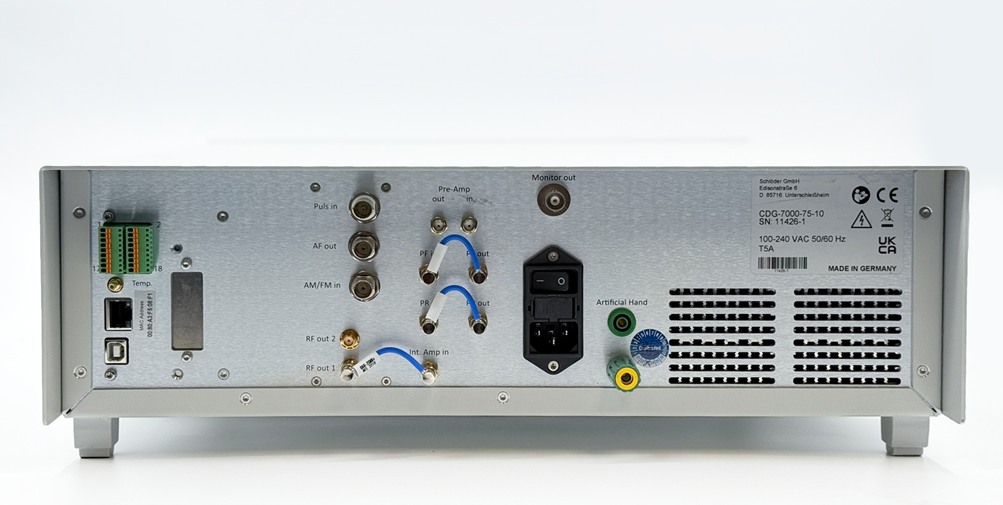

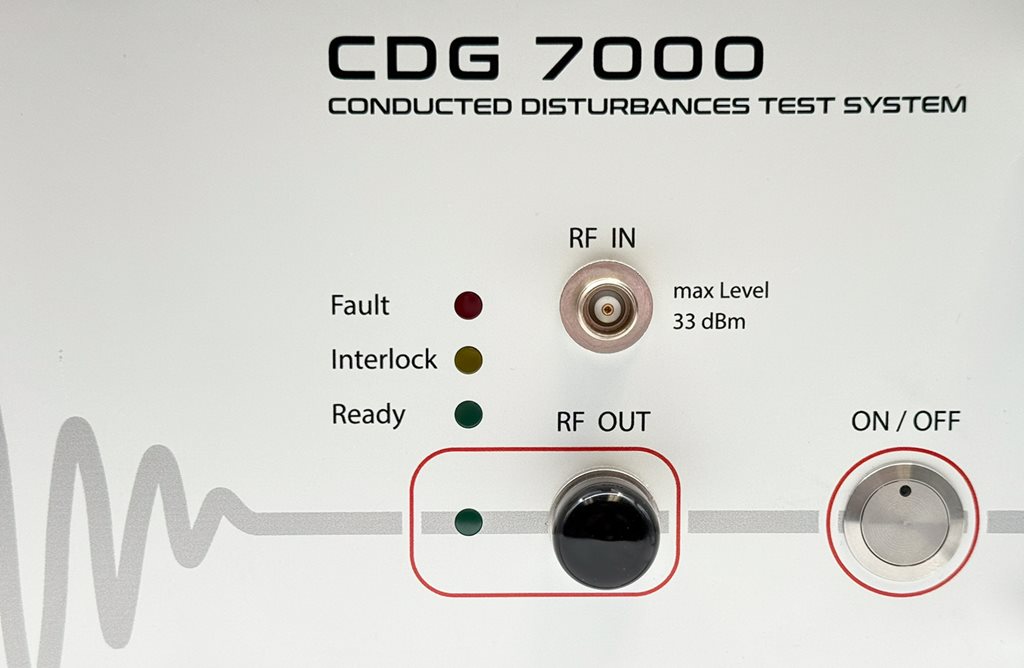

Interfaces: USB, LAN, GPIB (option)
Temperature measuring input for monitoring and displaying the BCI clamp temperature
Input for external pulse modulation
Configurable, digital 8-channel user port
