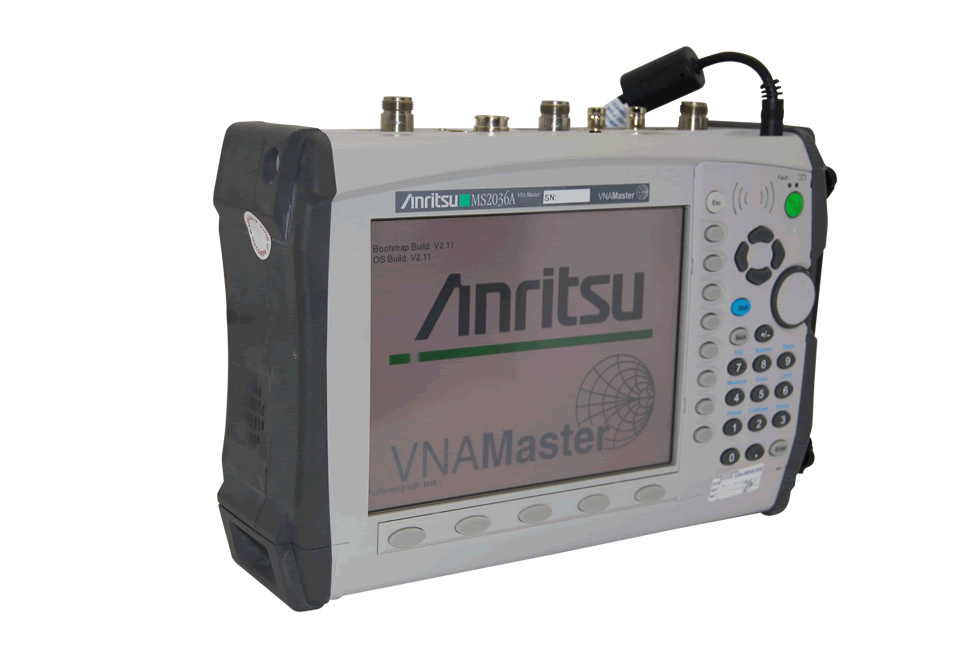

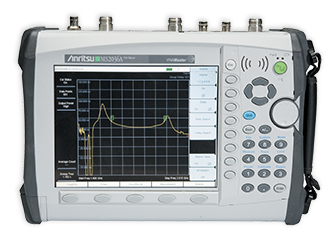

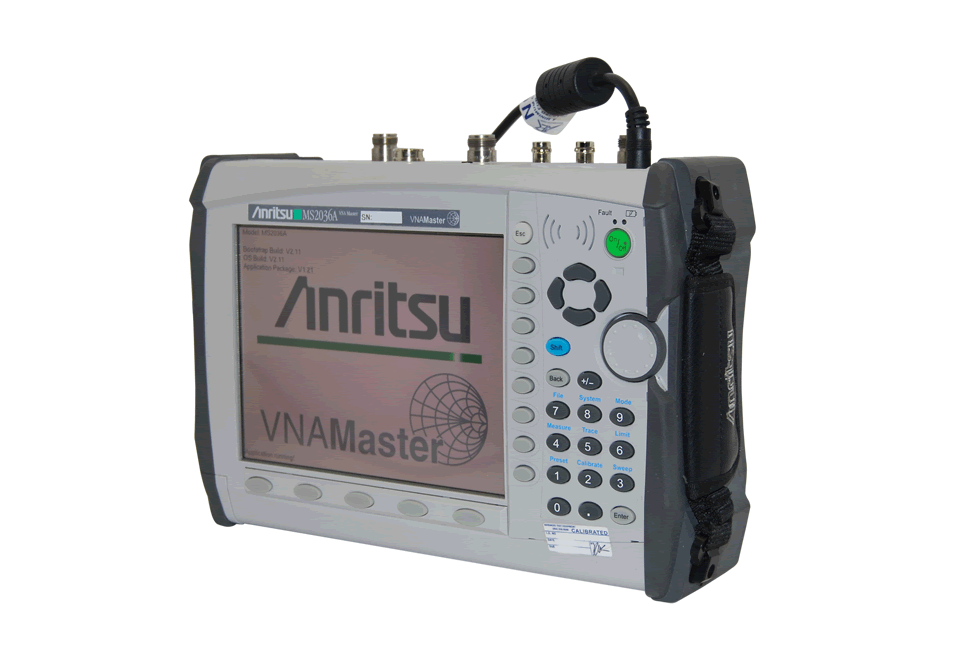

Anritsu MS2036A Vector Network Analyzer 9 kHz to 7.1 GHz
Enlarge Image
Anritsu MS2036A Vector Network Analyzer 9 kHz to 7.1 GHz Anritsu MS2036A Vector Network Analyzer 9 kHz to 7.1 GHz
Anritsu MS2036A
Request Quote Print Page
Manual Brochure

For field engineers and technicians who need all essential RF measurements anytime and anywhere, the Anritsu MS2036A VNA Masters are the first and only truly portable handhelds with integrated 2-port vector network analyzer from 2 MHz to 6 GHz, spectrum analyzer from 9 kHz to 7.1 GHz, and power meter capabilities in a single instrument

Ideally suited for aerospace and defense application, the VNA Master offers valuable measurement capabilities that can replace obsolete instruments and improve operator mobility. In this way, field engineers and technicians can more quickly install, deploy, and maintain RF systems in the field.

VNA Master is also an excellent solution for low-cost manufacturing and other general purpose applications given the broad frequency coverage, excellent performance, and integrated capabilities.

Anritsu MS2036A Features
  • Vector Network Analysis from 2 MHz to 6 GHz
  • Spectrum Analysis from 9 kHz to 7.1 GHz
  • Power Meter analysis from 10 MHz to 6 GHz
  • Vector Corrected 1-port and 1-path 2-port measurements for phase matching cables and precisely finding faults in antennas, connectors, and cables
  • Vector Voltmeter replacement
  • 2 ms/data points sweep speed
  • USB/Ethernet for data transfer
  • Store 1000 traces and setups in internal memory
  • Memory card slot for data storage and transfer
  • High resolution daylight viewable TFT color display
  • Greater than 3 hour battery life time
  • Built-in and custom editable Cable and Signal Standard
  • Local Languages: English, Spanish, Italian, French, German, Japanese, Korean, and Chinese. Can also customize two additional languages using Master Software Tool
  • Automate repetitive tasks with remote programming via Ethernet connector
  • Weight 9 lbs (4 kg)
  • Master Software Tools for trace analysis, editing, reporting, and much more
  • MS2036A-005 Power Monitor (requires external detector)
  • MS2036A-010 Built-in Bias-Tee
  • MS2036A-015 Vector Voltmeter
  • MS2036A-019 High Accuracy Power Meter (requires PSN50 or MA24106A, sold separately)
  • MS2036A-025 Interference Analysis, 9 kHz to 7.1 GHz (requires external antenna)
  • MS2036A-027 Channel Scanner, 9 kHz to 7.1 GHz (requires external antenna)
  • MS2036A-031 GPS Receiver (includes GPS antenna)
