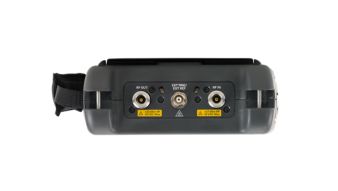

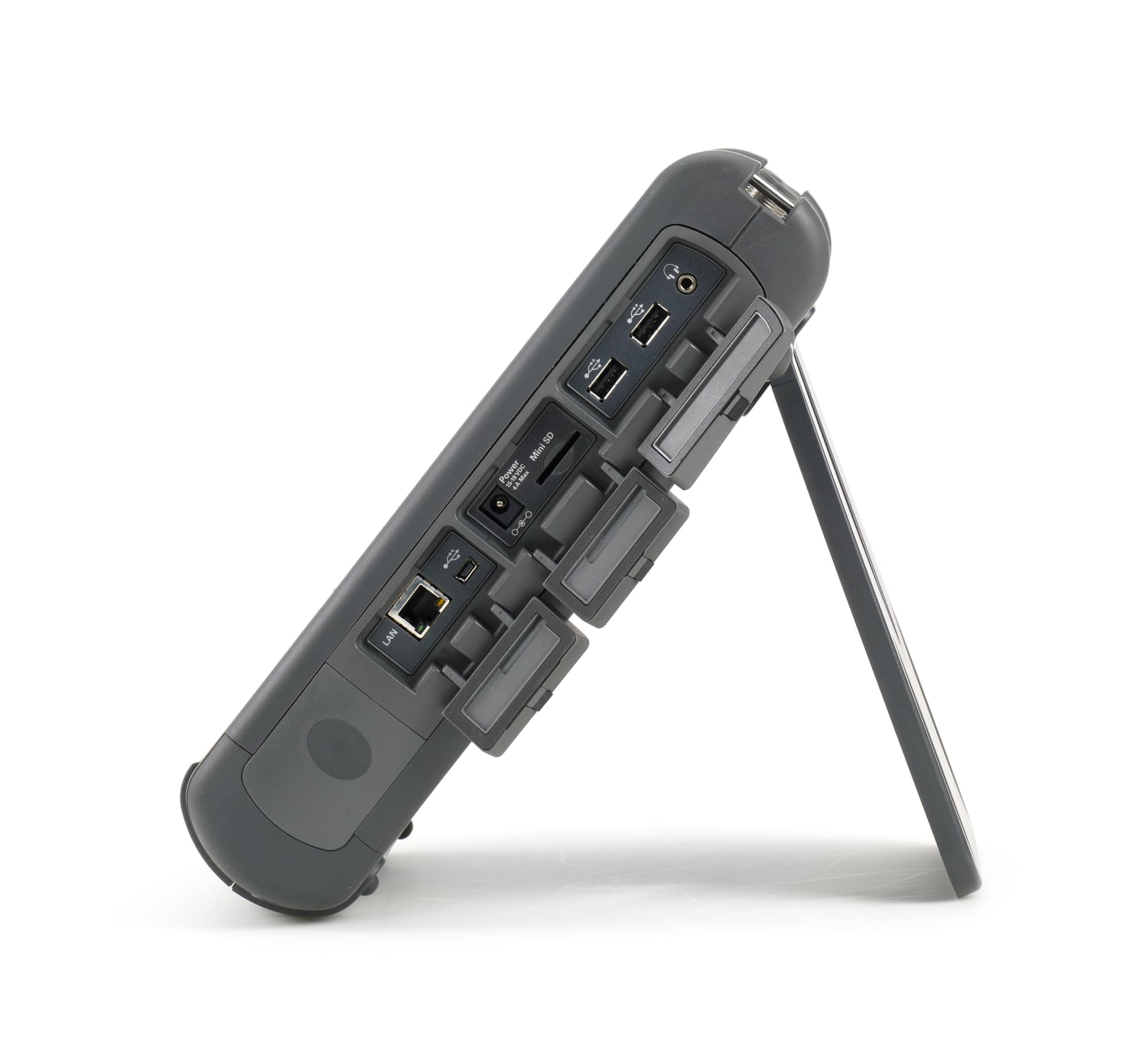

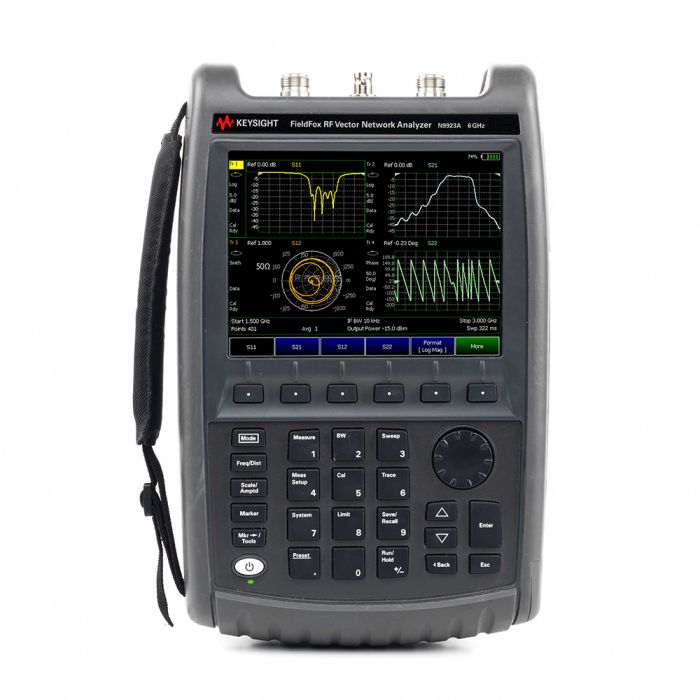

Keysight FieldFox N9923A Network Analyzer (Agilent N9923A)

The Keysight FieldFox N9923A Network Analyzer (formerly Agilent N9923A) is a powerful device that performs vector network analysis in a portable frame. The FieldFox N9923A is a full two-port network analyzer with a dynamic range of 90 dB for a complete analysis of S-parameters, phase, and magnitude. Measurements for time-domain with gating are also possible in the field, as the device offers many functions usually reserved for a benchtop unit.

The Keysight FieldFox N9923A Network Analyzer also performs reliable cable and antenna analysis, with distance-to-fault and return loss testing. The two-port VNA delivers even more vital testing needs on the go as it can function as both a one- and two-channel vector voltmeter.

Even with its advanced versatility, the Keysight FieldFox N9923A Network Analyzer uses a handheld and durable build for better use in the field. The N9923A Network Analyzer only weighs 6.2 lb (2.8 kg) and presents the test results on a 6.5 inch, anti-glare LCD screen.

Product Info Related Products

Frequency Range
2 MHz to 4 GHz	Option 104
2 MHz to 6 GHz	Option 106
Frequency Reference
Accuracy	±2 ppm
Aging Rate	±1 ppm/yr
Temperature Stability	±1 ppm over -10 to 55 ºC
Frequency Resolution	1 Hz < 3.2 GHz
Frequency Resolution	1.2 Hz > 3.2 GHz

Built-in QuickCal technology enables calibration without a cal kit
Best measurement stability over time and temperature
Industry´s only handheld network analyzer with MIL PRF 28800F Class 2 compliance with no exceptions
Time stamp your measurements with GPS latitude/longitude data
4 hour battery life, field replaceable battery

SKU: AGIL-N9923A-106-PKG01

Keysight N5227A PNA Network Analyzer 10 MHz - 67 GHz

10 MHz to 67 GHz
2-ports with single source or 4-ports with two built-in sources
128 dB system and 133 dB receiver dynamic range, 32,001 points, 200 channels, 15 MHz IF bandwidth

Keysight PNA Network Analyzer Series

PNA Network analyzer software tools for investigating, characterizing & troubleshooting designs
Advanced Design System (ADS): complete, integrated set of fast and accurate circuit & system simulators
Configurable test set

Keysight N5232B PNA Microwave Network Analyzer 10 MHz to 20 GHz

PNA Network analyzer software tools for investigating, characterizing & troubleshooting designs
Advanced Design System (ADS): complete, integrated set of fast and accurate circuit & system simulators
Configurable test set

Keysight E8357A PNA Vector Network Analyzer 300 kHz - 6 GHz

Keysight N5242B PNA-X Microwave Network Analyzer

Frequency Range: 900 Hz/10 MHz - 26.5 GHz
Maximum Output Power (at 20 GHz): +15 dBm
Harmonics: -51 dBc typical; -60 dBc typical

Keysight E8364C PNA Network Analyzer, 10 MHz to 50 GHz

Test set and power configuration options
<26 usec/point measurement speed, 32 channels, 20,001 points
TRM/LRM calibration for the most accurate on-wafer, in-fixture, waveguide and antenna measurements

Keysight FieldFox N9917A Handheld Microwave Analyzer

18 GHz max frequency
Carry the world’s most integrated handheld analyzer: standard model includes cable and antenna analyzer
Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more

Keysight E5080A ENA Vector Network Analyzer

9 kHz to 4.5/6.5/9 GHz, 2- or 4- port, 50 ohm
Wide dynamic range 152 dB (typical)
Fast measurement speed 3 ms (401 points)

Anritsu ShockLine MS46122B | 1 MHz – 43.5 GHz

Guaranteed performance to 43.5 GHz with Extended K™ ports
PC control takes advantage of external computer processing power and functionality
Compact 1U high package for efficient use of bench and rack space

Keysight N5239B PNA Microwave Network Analyzer 10 MHz to 8.5 GHz

PNA Network analyzer software tools for investigating, characterizing & troubleshooting designs
Advanced Design System (ADS): complete, integrated set of fast and accurate circuit & system simulators
Configurable test set

Rohde & Schwarz ZVA40 Vector Network Analyzer 4 ports, 40 GHz

Linear and nonlinear amplifier and mixer measurements
Noise figure measurements
Pulse profile measurements with 12.5 ns resolution

Keysight N5230C PNA-L Microwave Network Analyzer

300 kHz to 20 GHz
2- or 4- ports with a built-in sources
110 dB system and 122 dB receiver dynamic range

Anritsu MS2026A Vector Network Analyzer

Frequency Range: 2 to 6000 MHz
Frequency Accuracy: 25 ppm
Frequency Resolution: 10 kHz

Keysight N9914A FieldFox Handheld RF Analyzer

6.5 GHz
30kHz CAT/VNA Start Frequency
95 dB Dynamic Range

Keysight E8802A PNA Network Analyzer, 300 kHz to 6 GHz

Wide frequency range of 300 kHz to 6 GHz
Offers the key features of RF PNA and is code-compatible with RF PNA
Powerful automation and testing tools

Anritsu ShockLine MS46121B | 150 kHz – 6 GHz

1-port VNA with frequency options from 150 kHz to 6 GHz
External PC control enables control of multiple ShockLine MS46121B devices in parallel for excellent multisite throughput
Very compact package allows for direct connection to the DUT

Keysight N5235B PNA Microwave Network Analyzer 10 MHz to 50 GHz

PNA Network analyzer software tools for investigating, characterizing & troubleshooting designs
Advanced Design System (ADS): complete, integrated set of fast and accurate circuit & system simulators
Configurable test set

Keysight PNA-X Network Analyzer Series

Up to 15 markers per trace
200 measurement channels and unlimited traces
Flexible, modern user interface

Rohde & Schwarz ZVL Vector Network Analyzers 9 kHz - 13.6 GHz

Optional spectrum analysis and digital communications standards
Bidirectional test set for displaying all four S-parameters
R&S®ZVL3-75: 75 Ω vector network analyzer for TV and CATV measurements

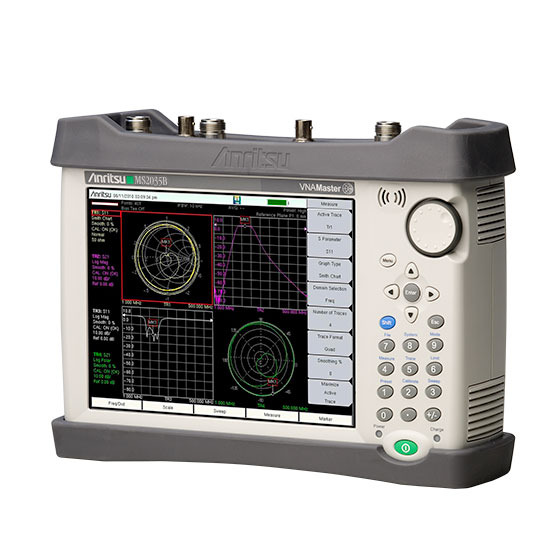

Anritsu MS2035B VNA Master Vector Network Analyzer
