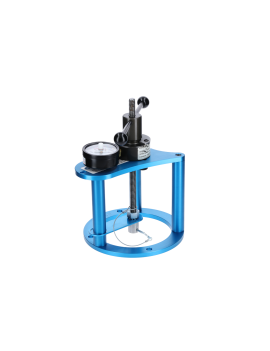

The Com-Ten EXTRACTOR Series includes multiple portable pull testers with varying capacities from 4,500 N to 27,000 N, ideal for any application. The models in the Com-Ten EXTRACTOR Series feature a digital gauge to show measurements with maximum accuracy. Each pull tester can measure the pull-out force for a safe working load and measurement validation. There are four different pull testers within the Com-Ten EXTRACTOR Series, each capable of tensile testing in construction inspection, repair, and rehabilitation applications.

Models	EXTRACTOR 1000 DW	EXTRACTOR 2000DW	EXTRACTOR 4000DW	EXTRACTOR 6000DW
Maximum Capacity	4,500 N	9,000 N	18,000 N	27,000 N
Accuracy	+/- 7.5 N	+/- 22.5 N	+/- 90 N	+/- 135 N
Accessories	4 slotted buttons, 4 threaded buttons and 4 threaded studs from M6 to M12	4 slotted buttons, 4 threaded buttons and 4 threaded studs from M6 to M12	4 slotted buttons, 4 threaded buttons and 4 threaded studs from M8 to M16	4 slotted buttons, 4 threaded buttons and 4 threaded studs from M8 to M16
Available units	N, kg, lb	N, kg, lb	N, kg, lb	N, kg, lb
