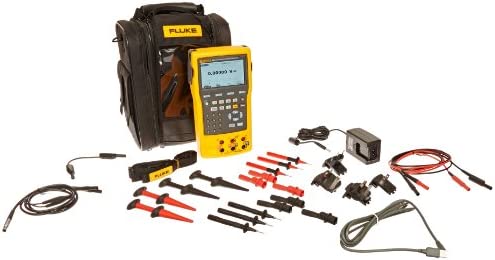

The Fluke 754 Documenting Process Calibrator-HART is part of the Fluke 750 Series, which consists of several documenting process calibrators. These calibrators allow for more efficient testing experiences. The Fluke 754 is a device that can source, simulate, and measure pressure, temperature, and electrical signals. The device is rugged, hand-held, and user-friendly. The 754 model can troubleshoot and calibrate with the HART applications. Operators can download procedures and instructions along with uploading data for analysis.

HART smart transmitters and additional equipment are maintained through the built-in HART system. The integrated HART communication capability allows technicians to effectively program and manage HART compatible instrumentation. This Fluke HART communicator has a modem interface with a maximum input of 30 V dc. The supported HART operating modes include point-to-point operation, multi-drop, and burst mode. The Fluke 754 model is similar to the Fluke 753 model, but the 754 model has the HART technology.

This multifunctional and reliable Fluke HART communicator has a bright white display, soft keys, three operating modes (Measure, Source, or simultaneous Measure/Source), and a Li-on battery. Technicians can maintain, calibrate, and measure with accuracy. Automatic document results and calibration management software enhance this process. Measure functions for the Fluke HART communicator include voltage, current, resistance, frequency, temperature, and pressure. The loop power function has a voltage of 26 V and an accuracy of 10%.

A USB interface allows for the transfer of results to a designated PC. The Fluke 754 Documenting Process Calibrator-HART complies with CAN/CSA C22.2 No 1010.1-92, ANSI/ISA S82.01-1994, UL3111, and EN610-1:1993 safety standards and ISO 9000, FDA, EPA, and OSHA regulations. With programmable and versatile features, the Fluke 754 can help experts complete a variety of testing requirements.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters, and other instruments
Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
Holds up to a full week of downloaded procedures and calibration results.
Use many features like autostep, custom units, user-entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay, etc.
Easy to use
Three-year warranty
Bright white dual display. Read both sourced and measured parameters simultaneously.
Multi-lingual interface
Rechargeable Li-Ion battery for 10-hour uninterrupted use. Includes gas gauge.
Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
Delivered with DPC/Track Sample software.
Compatible with many Asset Management software packages.

HART Capabilities

The 754 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 375 HART communicator.

Requires no external box or second tool for everyday HART calibration and maintenance.
Offers fast HART communication.
Supports popular models of HART transmitters, with more device-specific command support than any other HART field calibrator.
Works with multiple masters, burst mode, and multi-drop configurations.
Is easy to update as additional instruments are added and new HART versions are released.
Interrogate to determine device type, manufacturer, model, tag.
Reconfigure the sensor mapping of dual-sensor temperature transmitters.
Read HART PV function and smart transmitter digital output while measuring analog mA output.
Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.
Re-label smart transmitters by reading and writing to the HART tag field.

Specifications

Measurement Accuracy
Voltage DC	Range/ Resolution	1 Year		2 Years
	100.000 mV	0.02% + 0.005 mV		0.03% + 0.005 mV
	3.00000 V	0.02% + 0.00005 V		0.03% + 0.00005 V
	30.0000 V	0.02% + 0.0005 V		0.03% + 0.0005 V
	300.00 V	0.05% + 0.05 V		0.07% + 0.05 V
Voltage AC	3.000 V (40 Hz to 500 Hz) / 0.001 V	0.5% + 0.002 V		1.0% + 0.004 V
	30.00 V (40 Hz to 500 Hz) / 0.01 V	0.5% + 0.02 V		1.0% + 0.04 V
	300.0 V (40 Hz to 500 Hz) / 0.1 V	0.5% + 0.2 V		1.0% + 0.2 V
Current DC	30.000 mA	0.01% + 5 uA		0.015% + 7 uA
	110.00 mA	0.01% + 20 uA		0.015% + 30 uA
Resistance	10.000 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	100.00 Ω	0.05% + 50 mΩ		0.07% + 70 mΩ
	1.0000 kΩ	0.05% + 500 mΩ		0.07% + 0.5 Ω
	10.000 kΩ	0.1% + 10 Ω		0.15% + 15 Ω
Frequency	1.00 to 110.00 Hz / 0.01 Hz			0.05 Hz
	110.1 to 1100.0 Hz / 0.1 Hz			0.5 Hz
	1.101 to 11.000 kHz / 0.001 kHz			0.005 kHz
	11.01 to 50.00 kHz / 0.01 kHz			0.05 kHz
Source Accuracy
		1 Year		2 Years
Voltage DC	100.000 mV	0.01% + 0.005 mV		0.015% + 0.005 mV
	1.00000 V	0.01% + 0.00005 V		0.015% + 0.0005 V
	15.0000 V	0.01% + 0.0005 V		0.015% + 0.0005 V
Current DC	22.000 mA (source)	0.01% + 0.003 mA		0.02% + 0.003 mA
	Current sink (simulate)	0.02% + 0.007 mA		0.04% + 0.007 mA
Resistance	10.000 Ω	0.01% + 10 mΩ		0.015% + 15 mΩ
	100.00 Ω	0.01% + 20 mΩ		0.015% + 30 mΩ
	1.0000 kΩ	0.02% + 0.2 Ω		0.03% + 0.3 Ω
	10.000 kΩ	0.02% + 3 Ω		0.03% + 5 Ω
Frequency	0.1 to 10.99 Hz			0.01 Hz
	0.01 to 10.99 Hz			0.01 Hz
	11.00 to 109.99 Hz			0.1 Hz
	110.0 to 1099.9 Hz			0.1 Hz
	1.100 to 21.999 kHz			0.002 kHz
	22.000 to 50.000 kHz			0.005 kHz
Technical Data
Data log functions	Measure functions	Voltage, current, resistance, frequency, temperature, pressure
	Reading rate	1, 2, 5, 10, 20, 30, or 60 readings/minute
	Maximum record length	8000 readings (7980 for 30 or 60 readings/minute)
	Ramp functions	Source functions	Voltage, current, resistance, frequency, temperature
		Rate	4 steps/second
		Trip detect	Continuity or voltage (continuity detection not available when sourcing current)
Loop power function	Voltage	Selectable, 26 V
	Accuracy	10%, 18 V minimum at 22 mA
	Maximum current	25 mA, short circuit protected
	Maximum input voltage	50 V DC
Step functions	Source functions	Voltage, current, resistance, frequency, temperature
	Manual step	Selectable step, change with arrow buttons
	Autostep	Fully programmable for function, start delay, stepvalue, time per step, repeat
Environmental Specifications
Operating temperature	-10°C to +50°C
Storage temperature	-20°C to +60°C
Dust/water resistance	Meets IP52, IEC 529
Operating altitude	3000 m above mean sea level (9842 ft)
Safety Specifications
Agency approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical and General Specifications
Size	136 x 245 x 63 mm (5.4 x 9.6 x 2.5 in)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2V,4400mAh, 30 Wh
Battery life	>8 hours typical
Battery replacement	Replace without opening calibrator; no tools required
Side port connections	Pressure module connector
	USB Connector to interface to your PC
	Digital instrument (HART) connector
	Connection for optional battery charger/eliminator
Data storage capacity	1 week of calibration procedures results
