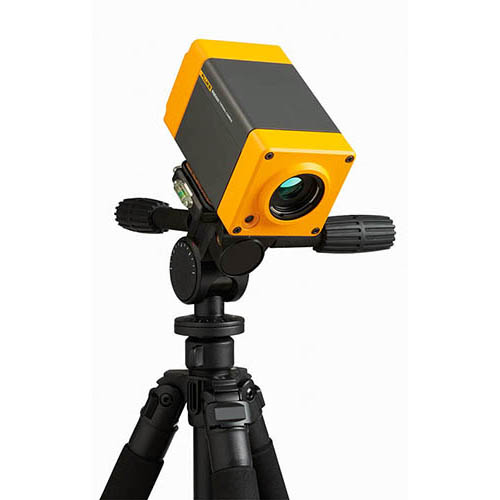

Fluke RSE600 Mounted Infrared Camera
Fluke introduces the first ever fully-radiometric mounted infrared camera, the Fluke RSE600 Mounted Infrared Camera. Equipped with advanced features and software plug-ins to MATLAB and LabVIEW, Fluke RSE600 Mounted Infrared Cameras are ideal for continuously streaming and analyzing infrared data. Fluke RSE600 Mounted Infrared Cameras are designed for your research, science and engineering needs. Enhance your testing and quality assurance procedures by mounting the Fluke RSE600 to your workstation. Continuously stream up to 60 frames of data per second directly to your computer to monitor minute temperature differences and analyze videos frame-by-frame remotely from SmartView desktop software. Enhance your viewing experience with optional add-on lenses to target different applications (analyzing from a distance or getting the close-up details).
| Key Features | |
|---|---|
| IFOV with standard lens (spatial resolution) | 0.93 mRad |
| Detector resolution | 640 x 480 (307,200 pixels) |
| Field of view | 34°H x 25.5°V |
| Minimum focus distance | 15 cm (approx. 6 in) |
| Camera focus options | Focus is adjusted in SmartView® desktop software |
| Wireless connectivity | Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi to LAN (where available) |
| IR-Fusion technology | Yes, in SmartView desktop software. Five modes of image blending (AutoBlend mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image |
| Thermal sensitivity (NETD) | ≤ 0.040°C at 30°C target temp (40 mK)* |
| Filter mode (NETD improvement) | Yes |
| Level and span | Smooth auto and manual scaling, in SmartView desktop software |
| Fast auto toggle between manual and auto modes | Yes, in SmartView desktop software |
| Fast auto-rescale in manual mode | Yes, in SmartView desktop software |
| Minimum span (in manual mode) | 0.1°C (0.18°F), in SmartView desktop software |
| Minimum span (in auto mode) | <1.0°C (<1.8°F), in SmartView desktop software |
| Built-in digital camera (visible light) | 5 megapixel industrial performance |
| Frame rate | 60 Hz or 9 Hz versions |
| Digital zoom | Variable up to 16x in SmartView desktop software |
| *Best possible | |
- MATLAB and LabVIEW software compatibility allows users to integrate infrared data, images and videos to support R&D analysis
- 640 x 480 resolution
- See the details you need with optional smart lenses: 2x and 4x telephoto, wide angle and macro lenses
- Optimize images, generate customizable reports and export images to the format of your choice with SmartView desktop software
- Wirelessly connect your camera to the Fluke Connect system to easily share and edit images
