FLIR VS290-32 Thermal MSX Videoscope Kit

The FLIR VS290-32 Thermal MSX Videoscope Kit is a durable imaging device that's made to capture thermal images in the world's harshest environments. The VS290-32 videoscope has a 2-meter long probe with a 160 x 120 thermal imager that continues working in cramped and dangerous areas. The borescope remains reliable in areas like underground electrical distribution vaults thanks to a tough exterior that meets the CAT IV 600 V safety rating along with various EMC test standards. Working in temperatures ranging from -10 to 50°C, the FLIR VS290-32 Thermal MSX Videoscope Kit captures visual details on a full-resolution thermal image. The FLIR videoscope kit comes with a 3.5-inch LCD display to immediately inspect the images captured by the probe.

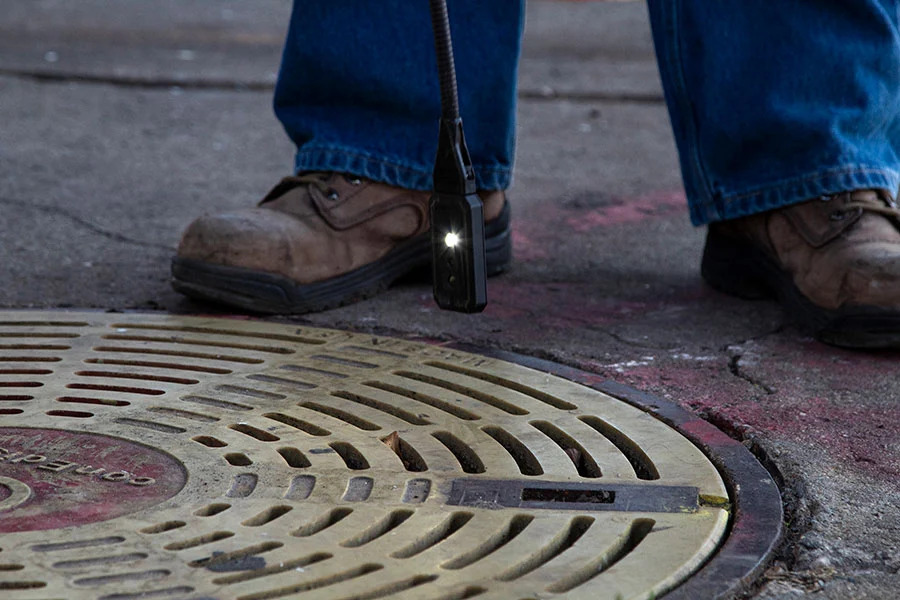

Product Info Related Products

General Specifications
Probe Length	2 meters (6.6 ft)
Display	3.5 in RGB TFT LCD (320 x 240 pixels)
Accuracy	±3°C
Object Temperature Range	-10 to 400°C
Battery Operating Time	>5 hours

Imaging Specifications
Digital Camera Resolution/FOV	2 MP / 83°
Field of View	57° × 44°
Focus	Focus free
Image Frequency	8.7 Hz
Image Modes	IR only, Visual only, MSX
IR Resolution	160 x 120 pixels
Minimum Focus Distance	0.15 m
Thermal Sensitivity/NETD	<100 mK

160 × 120 true thermal imager and 2 MP visual camera

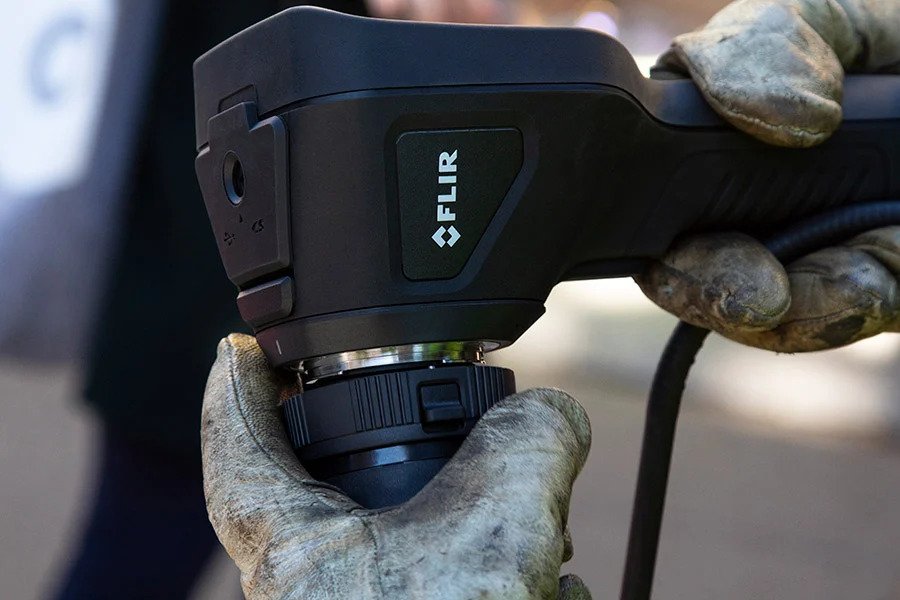

Narrow 2 meter field-replaceable camera probe
Equipped with FLIR MSX, which extracts scene details from the built-in visual camera and embosses them on to the full thermal image

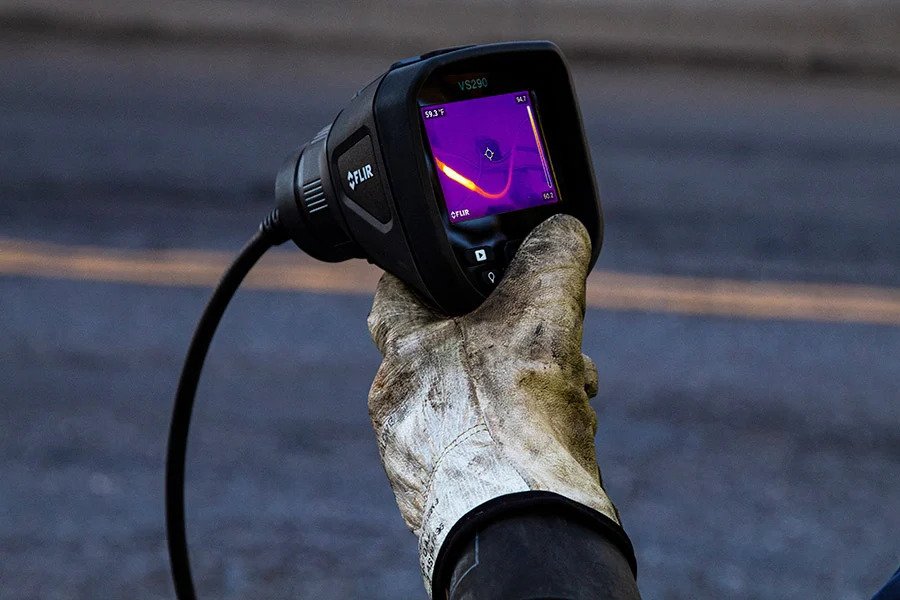

3.5-inch color display to better view findings
FLIR Thermal Studio to quickly create and share reports with team members
IP67 rated camera tip and IP54 rated base unit and probe to protect against dust and water
CAT IV 600 V rated to conduct electrical inspections safely
