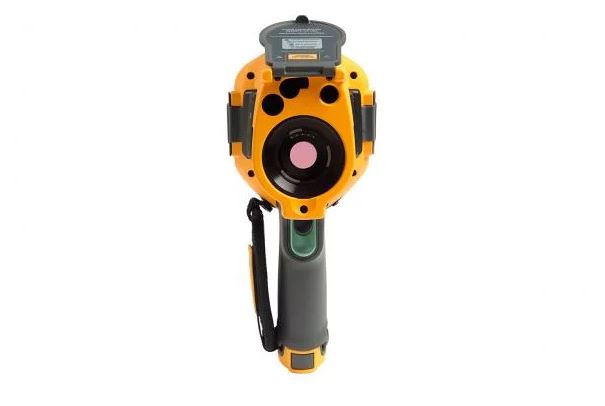

Fluke Ti480 Infrared Camera

The Fluke Ti480 Infrared Camera allows users to perform thermal imaging inspections with more confidence and faster results than ever before. Fluke Ti480 Infrared Cameras are rugged, superbly engineered pistol grip thermal imaging cameras that deliver 640 x 480 resolution and stands up to the rigorous demands of thermal inspections in harsh environments. Fluke Ti480 units offer multiple features to optimize focus and ensure that you get more accurate temperature information. MultiSharp Focus delivers images automatically focused throughout the field of view even if you start from a completely blurry target. The Ti480 Infrared Camera takes multiple images and combines them to give you clear, accurate focus on targets near and far. Simply point and shoot. In addition, Fluke Ti480 cameras bring SuperResolution that provides 4x the pixel data of the standard mode to create a 1280 x 960 image so you can see even more detail.

Product Info Related Products

Key features
IFOV with standard lens (spatial resolution)	0.93 mRad, D:S 1065:1
Detector resolution	640 x 480 (307,200 pixels) or 1280 x 960 with SuperResolution
SuperResolution	Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
MultiSharp Focus	Yes, focused near and far, throughout the field of view
LaserSharp Auto Focus	Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter	Yes, calculates the distance to the target for precisely focused images and displays distance on screen
Advanced manual focus	Yes
Ruggedized touchscreen display	3.5 inch (landscape) 640 x 480 LCD
Rugged, ergonomic design for one-handed use	Yes
Digital zoom	2x and 4x
Pre-calibrated Lenses	wide angle, 2x telephoto, 4x telephoto and 25 micron/macro

Temperature measurement
Temperature measurement range (not calibrated below -10 °C)	≤ -20 °C to +800 °C (-4 °F to 1472 °F)
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)	≤ 0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Live line marker	Yes
Best possible

Wireless connectivity
To PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi to LAN (where available)
Fluke Connect app compatible	Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional software	Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect Instant Upload	Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect tool compatible	Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on the camera screen. Five simultaneous connections supported.
Fluke Connect SmartView desktop software	Yes

IR-Fusion technology
Adds the context of the visible details to your infrared image
AutoBlend mode	Min, Mid, Max IR plus full visible on camera; continuously variable in software
Picture-In-Picture (PIP)	Yes
Built-in digital camera (visible light)	5 MP

Lenses
Standard lens	IFOV (spatial resolution)	0.93 mRad, D:S 1065:1
	Field of view	34 °H x 24 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion technology	Picture-in-picture and full screen
Optional 2x telephoto smart lens	IFOV	0.46 mRad. D:S is 2145.1
	Field of view	17 °H x 12 °V
	Minimum focus distance	45 cm (approx. 18 in)
	IR-Fusion technology	Picture-in-picture and full screen
Optional wide-angle smart lens	IFOV	1.85 mRad. D:S is 525:1
	Field of view	68 °H x 48 °V
	Minimum focus distance	15 cm (approx. 6 in)
	IR-Fusion technology	Full screen

Level and span
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.0 °C (3.6 °F)
Minimum span (in auto mode)	3.0 °C (5.4 °F)

Data storage and image capture
Extensive memory options	Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review	Thumbnail and fullscreen review
Software	Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
Export file formats with Fluke Connect SmartView software	Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation	60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
IR-PhotoNotes	Yes (5 images)
Text annotation	Yes
Video recording	Standard and radiometric
File formats video	Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote display viewing	Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote control operation	Yes, through Fluke Connect SmartView software or Fluke Connect mobile app
Auto capture (temperature and interval)	Yes

High resolution, 640 x 480 thermal imaging camera with MultiSharp™ Focus
Delivers 4x the pixel data with SuperResolution to create a 1280 x 960 resolution image
Captures an instant in-focus image of the designated target with LaserSharp Auto Focus
Presents a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
Saves time by wirelessly syncing images directly from your camera to the Fluke Connect system
Provides context for the visual and infrared details all in one precisely blended or picture-in-picture image with IR-Fusion technology
Includes backlit ruggedized LCD capacitive Captures additional digital images to show location or additional site details with IR-PhotoNotes annotations
Digitally documents critical information along with the infrared image using IR-PhotoNotes or voice annotation
Monitors processes with video recording, video streaming, and remote control
Works with optional pre-calibrated lenses: 2x telephoto, and wide angle
Measures temperatures from -20°C to +800°C (-4°F to+1472°F)
Highlights areas that are outside your pre-set "normal" temperature range with color alarms
Features one-handed pistol-grip for quick, point-and-shoot troubleshooting
Includes Fluke Connect SmartView desktop software to optimize thermal images, perform analytics, quickly generate customizable reports, and export images to the format of your choice in the cloud
