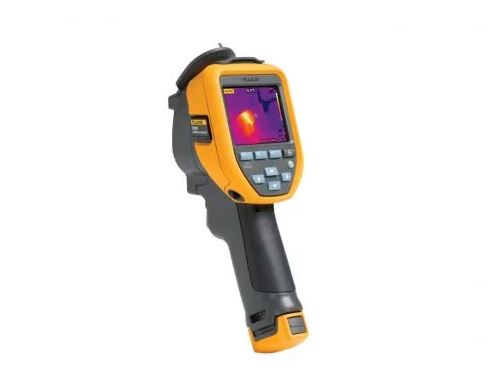

Fluke TiS20 Infrared Camera

The Fluke TiS20 Infrared Camera is an affordable, fixed-focus infrared camera with 120 x 90 resolution that enables you to inspect large areas with speed. Fluke TiS20 Infrared Cameras are built rugged, so you can take them anywhere. Fluke TiS20 units allow users to see a lot more with a large 3.5-inch LCD screen. In addition, Fluke TiS20 Infrared Cameras use three IR-Fusion presets with AutoBlend to blend a visible light image with an infrared image of the same target to find problems faster. You can also capture quality images from a longer distance with the 193:1 a distance to spot (D:S) ratio. Designed with a 4 GB internal memory and 4 GB more with an optional micro SD card, Fluke TiS20 Infrared Cameras can store thousands of images, making it quick and easy to document problems.

Product Info Related Products

Key Features
IFOV (spatial resolution)	5.2 mRad
Detector resolution	120 x 90 pixels
Field of view	35.7° x 26.8°
Distance to spot	193:1
Wireless connectivity	Yes
Fluke Connect app compatible	Yes (where available)
IR-Fusion Technology
AutoBlend mode	3 presets (0%, 50%, 100%)
Picture-In-Picture (PIP)	-
Focus system	Fixed focus; minimum focus distance: 0.45 m (1.5 ft)
Ruggedized display	3.5-inch (landscape) 320 x 240 LCD
Rugged, ergonomic design for one-handed use	Yes
Thermal sensitivity (NETD)	≤0.10°C at 30°C target temp (100 mK)
Temperature measurement range (not calibrated below -10°C)	-20°C to +350°C (–4°F to 662°F)
Level and span	Smooth auto and manual scaling
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (manual mode)	2.5°C
Minimum span (auto mode)	5°C
Built-in digital camera (visible light)	5 MP
Frame rate	9 Hz
Laser pointer	-
Data storage and Image Capture
Extensive SD memory system	Internal 4 GB (optional 4 GB micro SD card sold separately)
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files
Instant Upload	Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review	Thumbnail review
Software	SmartView software - full analysis and reporting software and Fluke Connect (where available)
Export file formats with SmartView software	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation	-
IR-PhotoNotes	-
Standard video recording	-
Radiometric video recording	-
Video file formats	-
Streaming video (remote display)	-
Battery
Batteries (field-replaceable, rechargeable)	One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life	4+ hours
Battery charge time	2.5 hours to full charge
Battery charging system	In-imager charging (optional external charger sold separately)
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy	±2°C or 2% (at 25°C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Color Palettes
Standard palettes	6: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale
Ultra Contrast™ palettes	-
General Specifications
Color alarms (temperature alarms)	-
Infrared spectral band	7.5 μm to 14 μm
Operating temperature	-10°C to +50°C (14°F to 122°F)
Storage temperature	-20°C to +50°C (-4°F to 122°F)
Relative humidity	10% to 95%, non-condensing
Center-point temperature measurement	-
Spot temperature	Yes
User-definable spot markers	-
Center box	-
Safety standards	EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility	EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
C Tick	IEC/EN 61326-1
US FCC	EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock	2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop	Engineered to withstand 2 m (6.5 ft) drop
Size (H x W x L)	26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight (battery included)	Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Affordable, fixed-focus infrared camera with 120 x 90 resolution (10,800 pixels)
Quickly scans large areas with point-and-shoot simplicity
Offers three presets of IR-Fusion with AutoBlend to help find problems fast
Provides a D:S of 193:1
Features a 3.5-inch, 320 x 240 LCD
Captures visible light images with built-in 5-megapixel digital camera
Offers temperature measurement range from -20 °C to 350 °C (-4 °F to 662 °F)
Includes a smart battery system that allows you to easily monitor your battery charge level with five-segment LED display
Allows real-time communication by email from your smart phone with Fluke Connect
Stores thousands of images—4 GB internal memory and optional 4 GB micro SD card
