Fluke Ti125 Thermal Imager -20°C to +350°C

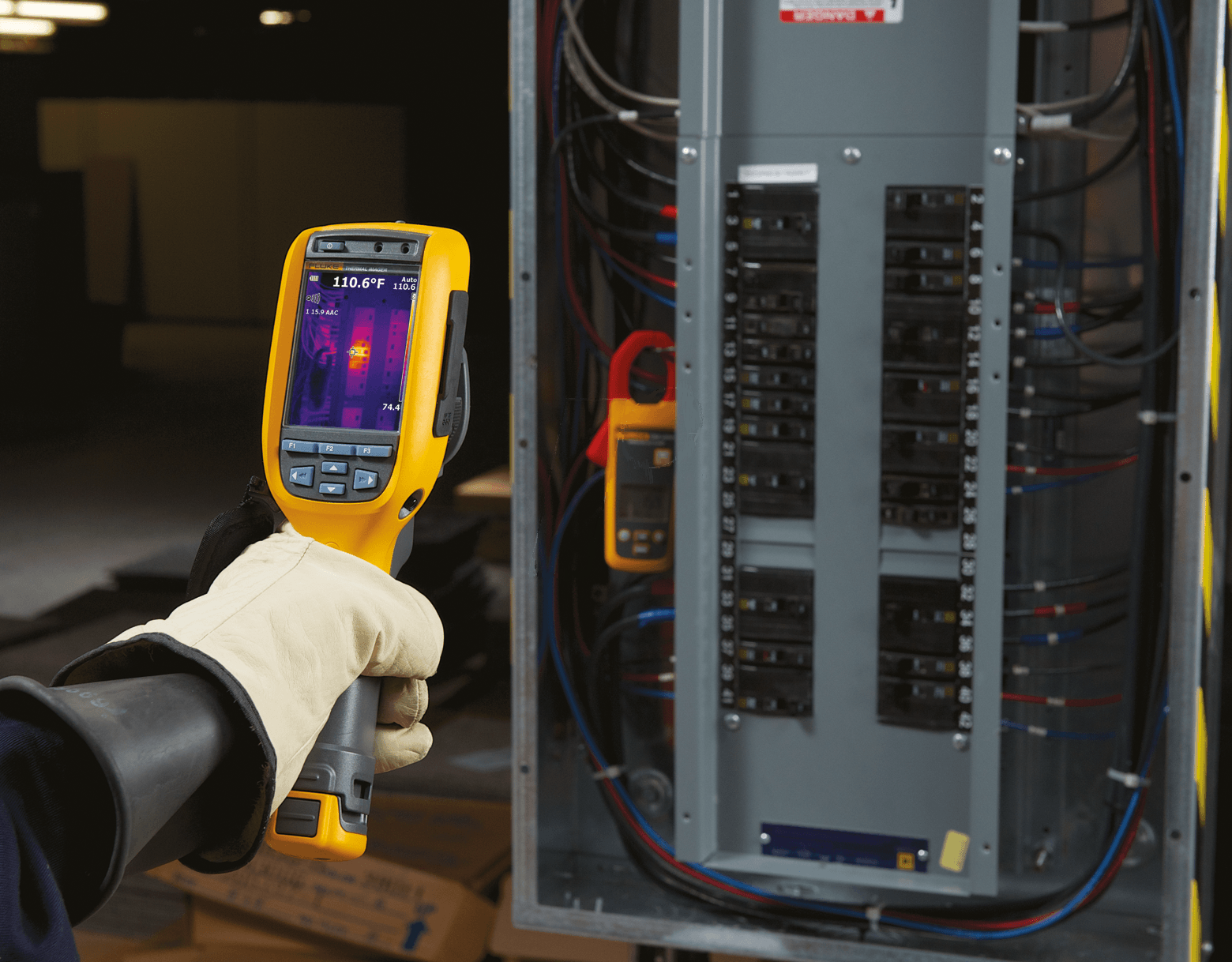

Fluke Ti125 Thermal Imager
Enlarge Image
Fluke Ti-125
Request Quote Print Page

The Fluke TI125 features the innovative IR-OptiFlex focus system along with the revolutionary IR Fusion Technology allowing you to perform your infrared inpection more thoroughly and efficiently.


Features:

  • Exclusive IR-OptiFlex focus system
  • Multi-mode video recording
  • IR-Fusion® with AutoBlend mode
  • Electronic Compass (8-Point Cardinal)
  • IR-PhotoNotes Annotation System



Specifications:

IR resolution (FPA size) 160 x 120 FPA Uncooled Microbolometer
Spectral band 7.5 μm to 14 μm (long wave)
Capture or refresh rate 9 Hz or 30 Hz versions
NETD (Thermal sensitivity) ≤ 0.10 °C at 30 °C target temp (100 mK) 0.10 °C at 30 °C target temp (100 mK)
FOV (Field of view) 22.5 °H x 31 °V
IFOV (Spatial resolution) 3.39 mRad
Temperature measurement range (not calibrated below -10 °C) -20 °C to +350 °C (-4 °F to +662 °F)
Temperature measurement accuracy ± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Focus mechanism IR-OptiFlex focus system
IR-Fusion technology PIP, FULL IR, FULL VISIBLE, AutoBlend
Color alarms High temperature, low temperature, isotherm
Standard palettes Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber
Weight 0.726 kg (1.6 lb)
Size 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in)
LCD display 3.5 inch diagonal (portrait format)
Operating temperature range -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature range -20 °C to +50 °C (-4 °F to 122 °F)
