Kaelus IHA-850A Passive Intermodulation Analyzer 850 MHz

Used Sales Price: $3995

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery

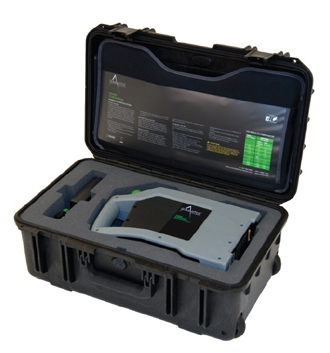

Kaelus IHA-850A Passive Intermodulation Analyzer
Enlarge Image
Kaelus (Summitek) IHA-850A
Request Quote Print Page
IHA-850A Datasheet
The iHA Companion series Passive Intermodulation (PIM) analyzer complement Summitek's 20 Watt PIM test solutions. The iHA is a lightweight, low power PIM analyzer that can be carried up the tower for coarse component checks or connected at the bottom of the tower to check for badly out of performance interconnections.
Model Description TX Frequency 1 TX Frequency 2 RX Frequency (PIM)
iHA-1900A PCS1900 1990.0 MHz 1930.0 MHz 1870.0 MHz
Kaelus (Summitek) IHA-850A Features
  • Small, light weight
  • Battery operated
  • Rugged construction
  • One button push-to-test
  • LED bar display indicates PIM level
  • Fixed frequencies, powers and IM Product
Kaelus (Summitek) IHA-850A Specs
Description 850 MHz
TX Frequency 1 894 MHz
TX Frequency 2 870 MHz
RX Frequency (PIM) 846 MHz
Measurement Reverse (reflected) PIM , 3rd order
Residual PIM < -130 dBm/-163dBc max.
PIM Measurement Accuracy ± 3 dB (-80 to -102 dBm), ± 4 dB (-102 to -130 dBm)
User Interface Port 1x RF Output (7-16 DIN female)
1x RF on/off push button (red)
1x Battery check/ mode select button (black)
1x Charger connector
Display 2x LED bar displays indicate PIM level, Battery level, display mode and alarms.
Frequency Accuracy ± 100 ppm typ.
Power Per Tone (fixed) 2x 2W (+33dBm)
Power Accuracy (per tone) ± 1dB (max)
Measurement Noise Floor < -134 dBm/-167 dBc typ.
Measurement Range -80 dBm to -130 dBm
Battery 25.9 VDC, 2500mAH Li-ion battery pack (internal)
Battery Life >2hr with RF power continuously on.
Battery Charger External Charger, 29.4 VDC, 1.2 Amp.
Analyzer Dimensions 14 x 9 x 3.5 in (350 x 230 x 90mm)
Case Dimensions 22 x 14 x 9 in (550 x 350 x 230mm)
Analyzer Weight 11 lbs (5kg)
Analyzer + Case Weight 25 lbs (11Kg)
Operating Temperature Range 0°C to +45°C
Storage Temperature Range -10°C to +60°C
Ingress Protection (IP) IP54
Relative Humidity 5% to 95% RH non-condensing
MTBF >10,000 hrs
