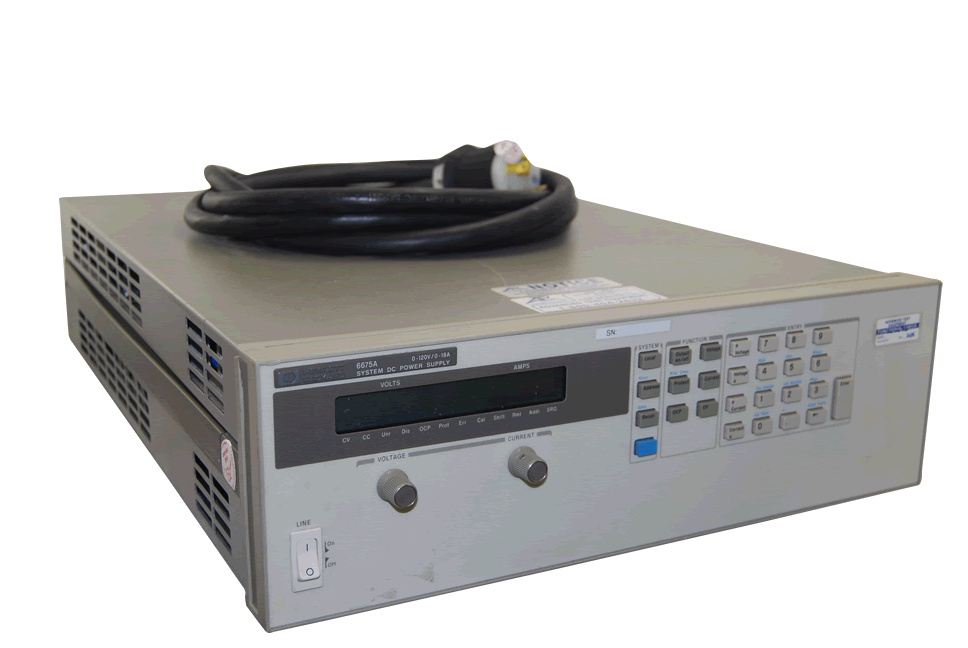

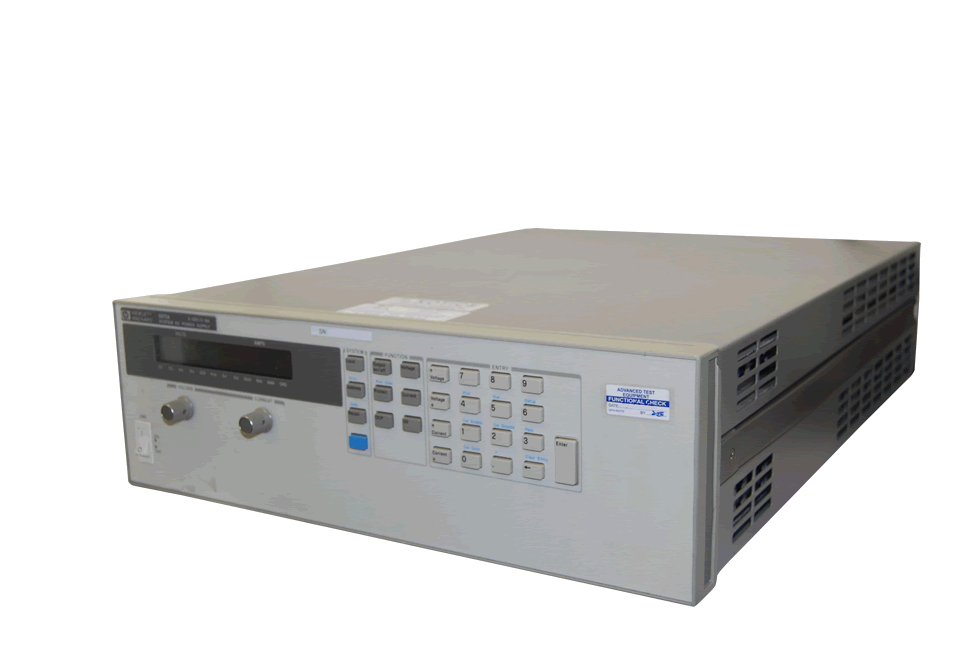

Keysight 6675A 2000 Watt DC Power Supply 120 Volt 18 Amp

HP/Agilent 6675A 2000 Watt DC Power Supply 191 to 250 Vac, 47 to 63 Hz
Enlarge Image
HP/Agilent 6675A 2000 Watt DC Power Supply 191 to 250 Vac, 47 to 63 Hz HP/Agilent 6675A 2000 Watt DC Power Supply 191 to 250 Vac, 47 to 63 Hz
Keysight 6675A
Request Quote Print Page
Datasheet
This series of 2000 watt dc power supplies has the exceptional, proven reliability that test system engineers look for. It also has the unusual combination of high efficiency and low noise operation.


Option 230:191 to 250 Vac, 47 to 63 Hz


Keysight 6675A Features
  • Single-Output: 2000 W/ GPIB
  • Proven Reliability
  • Low ripple and noise
  • High Efficiency
Keysight 6675A Specs
  • Output Voltage: 0 to 120 V
  • Output Current: 0 to 18 A
  • Programming Accuracy:
    • Voltage: 120 mV
    • Current: 12 mA
  • Ripple & Noise (from 20 Hz to 20 MHz):
    • Voltage rms: 1.9 mV
    • Voltage peak to peak: 16 mV
    • Current rms: 12 mA
